Summary of Contents for COFFEtek GENEVA

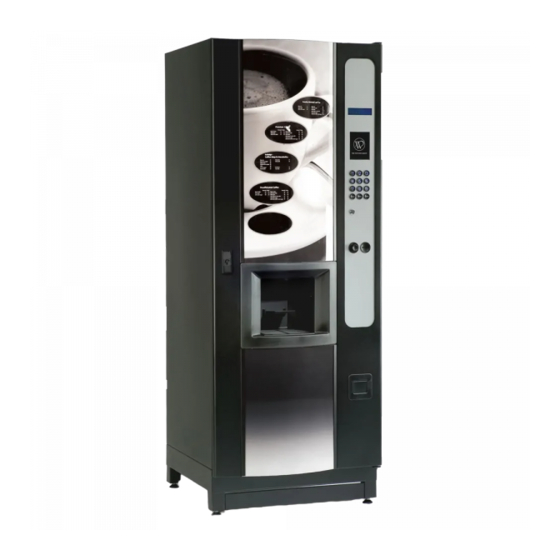

- Page 1 GENEVA VENDING MACHINE OPERATORS GUIDE 56571...
-
Page 3: Table Of Contents
COFFEtek LTD GENEVA VENDING MACHINE CONTENTS page SAFETY WARNINGS .................... 5 FROST WARNING ....................6 HOT WATER WARNING ..................6 Flushing the Machine..................... 7 Cleaning the Mixing Systems................. 8 Cleaning the Tea Brewer ..................10 Refitting the Tea Brewer ..................12 Cleaning the Coffee Brewer Unit ................. - Page 4 COFFEtek LTD This page is intentionally blank OPERATOR MANUAL GENEVA...
-
Page 5: Safety Warnings
COFFEtek LTD SAFETY WARNINGS The vending machine contains moving parts and utilises very hot water both of which have the potential to cause injury. The machine should be switched off before undertaking any activity on the mixing or brewing systems, which requires the removal of any component part from the machine. -
Page 6: Frost Warning
COFFEtek LTD the wall to allow adequate ventilation, and, if in a corner location, not closer to the right hand wall than 400mm (16in) to accommodate the opening of the door. The unit should not be situated in an area where a water jet could be used. -
Page 7: Flushing The Machine
COFFEtek LTD FLUSHING THE MACHINE Ensure that the following flushing instructions are carried out at least once a day and that mixing system and brewer cleaning is carried out at least once a week. To Flush Machine: (1) Open machine as instructed and ensure machine is switched on. -
Page 8: Cleaning The Mixing Systems
COFFEtek LTD CLEANING THE MIXING SYSTEMS (1) Open the door of the machine and switch machine off using the main switch. (2) For each mixing system in turn remove the dispense nozzle from the dispense head and remove the mixing system A by pulling the top forward and downwards as shown. - Page 9 COFFEtek LTD (4) Remove the impellor disk B by pulling it in the direction shown. (5) Remove the whipper seal C and ensure that the running surface D is smooth and free of ingredient residues. (6) Inspect whipper seal for damage and replace as necessary.
-
Page 10: Cleaning The Tea Brewer
COFFEtek LTD CLEANING THE TEA BREWER (1) Open the door of the machine and switch machine off using the main switch. (2) Turn tea canister dispense chute upwards to prevent ingredients being spilled onto the floor of the machine. (3) Remove the tealeaf waste chute by lifting it up wards and towards you. - Page 11 COFFEtek LTD (7) Remove mixing bowl (8) Remove the brewer cylinder by swinging it upwards and then gently pulling it in the direction indicated. (9) Wash the brewer and cylinder in de-staining fluid and rinse with clean water. GENEVA OPERATOR MANUAL...
-
Page 12: Refitting The Tea Brewer
COFFEtek LTD REFITTING THE TEA BREWER (1) Refit brewer cylinder. (2) Refit the mixing chamber. (3) Refit brewer carriage onto machine. If it does not locate correctly, gently turn filter belt using the studded roller until it slides into place. -
Page 13: Cleaning The Coffee Brewer Unit
COFFEtek LTD CLEANING THE COFFEE BREWER UNIT WARNING KEEP CLEAR OF THE BREWER UNIT WHEN IT IS IN MOTION. (1) Open the door of the machine and switch machine off using the main switch. (2) Turn the coffee canister dispense... - Page 14 COFFEtek LTD (6) Lift the brewer retaining clips labeled in the direction shown on the diagram, to release the carriage assembly. (7) Remove the carriage assembly from the machine by sliding it in the direction indicated. (8) Remove the steam trap and brewer...
-
Page 15: Refitting The Coffee Brewer
COFFEtek LTD REFITTING THE COFFEE BREWER (1) Open the door of the machine and switch machine off using the main switch. (2) Clip the stream trap back onto the brewer chamber , and refit the unit to the machine. (3) Refit the carriage assembly (4) Use the brewer retaining clips to lock the brewer in place. -
Page 16: Filter Belt Removal And Replacement
COFFEtek LTD FILTER BELT REMOVAL AND REPLACEMENT (1) Using fore finger and thumb compress the tensioning rollers as shown in With the rollers compressed push and turn the red lever to the locked position as shown in B. (3) With the rollers locked in the compressed position the belt can now be removed. -
Page 17: Extract Duct Cleaning
COFFEtek LTD EXTRACT DUCT CLEANING (1) Open the door of the machine and switch machine off using the main switch. (2) Turn the ingredient nozzles upwards to prevent ingredient spillage and remove all canisters. (3) When all the canisters have been taken out, the extract duct cover can be removed by lifting it upwards and then forwards toward the front of the machine.
