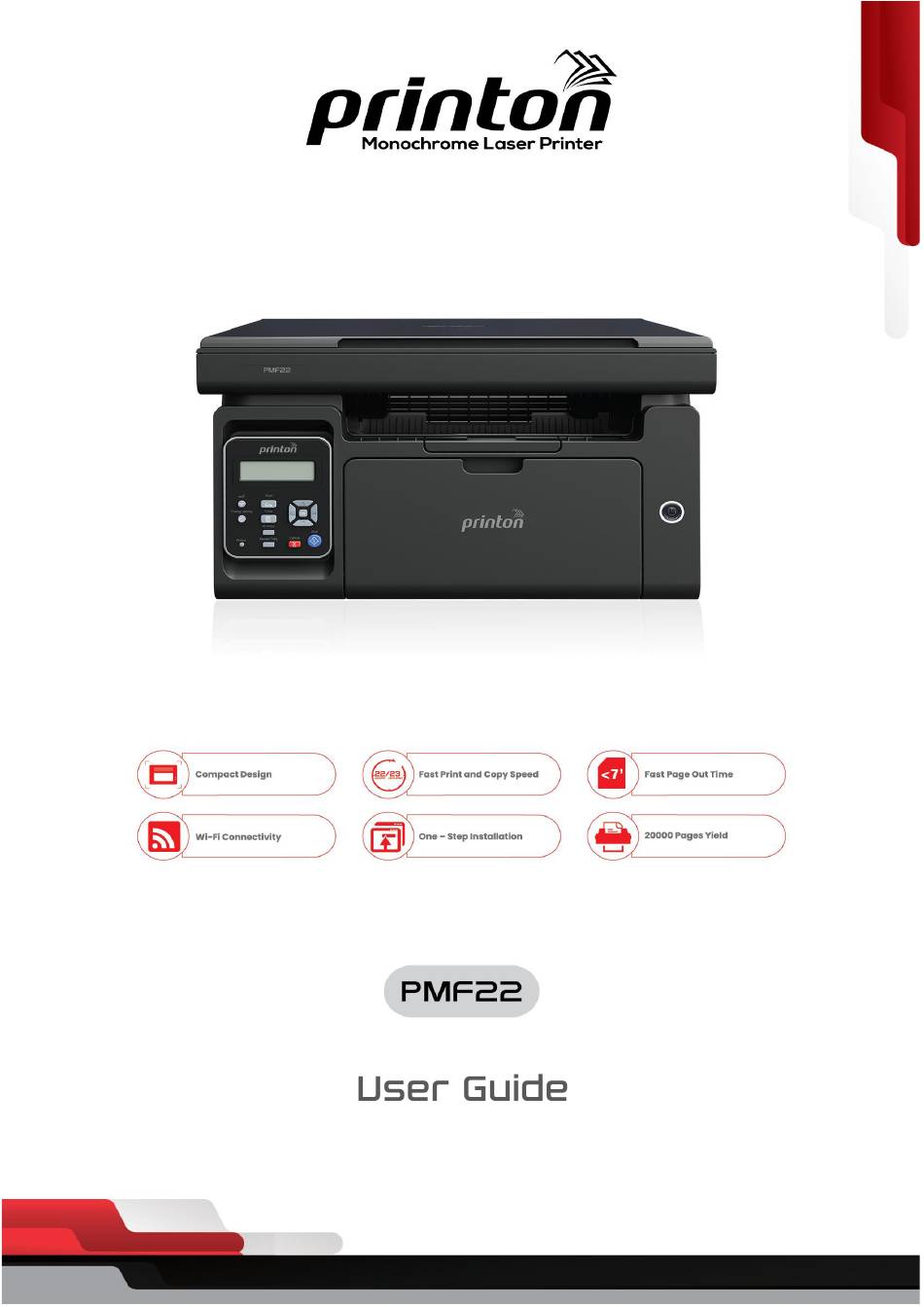

Walton Printon PMF22 User Manual
  1. Manuals
  2. Brands
  3. Walton Manuals
  4. Printer
  5. Printon PMF22
  6. User manual

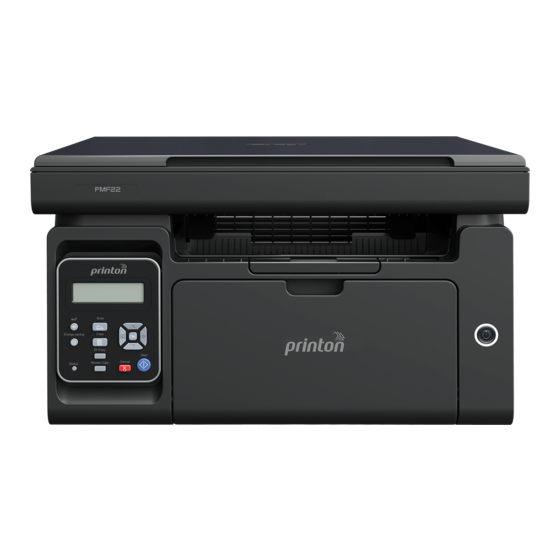

Walton Printon PMF22 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Printon PMF22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Walton Printon PMF22

  • Page 2: Legal Notice

    WALTON Digi-Tech Industries Ltd. Disclaimer For a better user experience, WALTON Digi-Tech Industries Ltd. reserves the right to make changes to the User Guide. The information contained herein is subject to change without notice. Users are responsible for any damages arising from failing to follow this User Guide. Meanwhile, except the express warranty made in the product maintenance manual or service commitment, WALTON Digi-Tech Industries Ltd.

  • Page 3: Safety Precautions

    Safety Precautions Disconnect the power supply The product should be placed close to or easily accessible to power sockets, so as to allow easy disconnection of power supply! Laser Safety The laser radiation is harmful to the human body. Since laser components are completely sealed in the printer, laser radiation will not leak.
  • Page 4 Precautions Precautions before Using the Printer: 1. Read and understand all instructions; 2. Familiarize yourself with the basic principles associated with operating electrical appliances; 3. Comply with all warnings and instructions marked on the equipment or specified in the manual supplied with the equipment; 4.
  • Page 5 16. If you continuously print multiple pages, the surface of the tray will become very hot. Take care not to touch this surface, and keep children away from this surface; 17. The signal wire of the device connected with the printer cannot be connected to the outdoors; 18.
  • Page 6 • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 29.

  • Page 7: Legal Information

    Member States relating to electromagnetic compatibility and safety of electrical equipment designed for use within certain voltage limits. The manufacturer of this product is: WALTON Digi-Tech Industries Ltd. A declaration of conformity to the requirements of the Directives is available upon request from the Authorized Representative.

  • Page 8: Before Using The Printer

    1. Before Using the Printer 1.1. Introduction of Models This product has the following configurations: Model Name PMF22 Picture Basic Functions Print, Copy, Scan Basic Models USB Model, NET Model, Wi-Fi Model • The maximum print speed of A4 paper is 20/22ppm, and that of letter paper is 21/23ppm. •...

  • Page 9: Product View

    1.3. Product View Side view (1) Picture Cover Output Bin Control Panel Side view (2) Picture Glass Platen Scanning Platform Output Tray Automatic Feed Paper Deflector Paper Stop Feeder Tray Automatic Feeder Tray Power switch...

  • Page 10: Laser Toner Cartridge

    Rear View Picture USB Interface Network Interface Power Interface Rear Cover 1.4. Laser Toner Cartridge Service Life of the Laser Toner Cartridge Type Average Print Volume Laser Toner About 1600 Pages Cartridge with (The above data is based on ISO/IEC 19752 standard) Standard Capacity Note: •...
  • Page 11 1.5. Easily-Refilled Laser Toner Cartridge 1.5.1 Structure of Easily-Refilled Laser Cartridge Name Waste Toner Port Toner Refilling Port Waste Toner Box Toner Box 1.5.2. Steps of Filling the Easily-Refilled Laser Cartridge Steps Diagram Description Hold the laser toner cartridge with the toner port side down and shake it vertically around 5-6 times. Open the cover of the waste toner port.

  • Page 12: Control Panel

    Pour the toner into the toner box. Close the cover of the toner refilling port. The toner refilling is completed. 1.6. Control Panel Short press Wi-Fi button to turn on direct Wi-Fi connection of the printer and automatically print out "Mobile Device Wi-Fi Connection Wizard" page (for models with Wi-Fi function only). Wi-Fi button Long press Wi-Fi button for over 2s to start WPS when Wi-Fi is not connected or to disconnect Wi-Fi when it has already been connected (for models with Wi-Fi function only).

  • Page 13: Paper And Print Media

    Copy Button Press this button to enter into copy mode ID Card Copy Button Press this button to enter into ID Card Copy mode Bill Copy Button Press this button to enter into Bill Copy mode Menu Button Press this button to access the menu options to make the settings Back Button Press this button to go back to the upper-level page Cancel Button...

  • Page 14: Special Paper

    1. Desired print effect: The print media selected should meet the requirement of the print tasks. 2. Surface smoothness: The smoothness of the print media may affect the sharpness of the print outcome. 3. Some print media may meet all the use guidelines contained herein, but they still cannot bring satisfactory effect. This may be due to incorrect operation, inappropriate temperature and humidity, or other factors beyond the control of Printon.

  • Page 15: Non-Printing Area And Non-Scanning Area

    2.3. Non-printing Area and Non-scanning Area The shaded part indicates the non-printing area and non-scanning area. Usage Paper Size Top and Bottom Margins (A) Left and Right Margins (B) 5 mm (0.197 inch) 5 mm (0.197 inch) Print Letter 5 mm (0.197 inch) 5 mm (0.197 inch) 5 mm (0.197 inch) 5 mm (0.197 inch)
  • Page 16 d) Load the paper into the automatic feeder tray with the print-side up. e) Adjust the paper stop to match the paper size. Note: • If the paper loaded into the automatic feeder tray at one time exceeds 150 pages, paper will jam or cannot be fed in. •...

  • Page 17: Paper And Manuscript Use Process

    2.5. Paper and Manuscript Use Process Manuscript requirements: Type Size Plain paper, thick paper, transparent film, carton paper, label paper, envelope, thin paper A4, A5, B5, Letter, Custom 2.5.1. Scanning With Tablet Steps of Use: 1). Raise the cover. 2). Load the manuscript face down. 3).

  • Page 18: Driver Installation And Uninstallation

    3. Driver installation and uninstallation 3.1. How to install Windows printer driver Windows driver installation software provides two installing methods: one-click installation and manual installation. We recommend one-click installation, which can help to install driver automatically in a faster and more convenient way. If you have any difficulty in using one-click installation, please try manual installation.
  • Page 19 5. After the installation, click "Print &Test Page" button. If your printer prints the test page successfully, it means that you have installed the driver correctly. 3.1.1.2. Method II: Connect the printer via wired network 1. Turn the power of printer and computer on. 2.
  • Page 20 • Windows 7/Vista/Server 2008 system: Pop up "Autoplay" interface, click “Autorun.exe” to run the installation procedure. • Windows 8 system: When the " DVD RW driver" window pops up from the right top corner of computer desktop, click anywhere in the pop-up window, then click "Autorun.exe" to run the installation procedure. •...
  • Page 21 • If your software has searched several printers, click on the “One-click installation" button, and the printer list interface will pop up. Please select the printer that you need according to your printer wired network IP address or host ID.
  • Page 22 Note: • If the printer you need is not shown in the list, please click "Refresh" button to search again. If it is not found, please check if the printer and computer are in the same network. (Please see Chapter 5.3 for how to check).
  • Page 23 • Windows XP system: automatically run the installation procedure. • Windows 7/Vista/Server 2008 system: Pop up "Autoplay" interface, click “Autorun.exe” to run the installation procedure. • Windows 8 system: When the " DVD RW driver" window pops up from the right top corner of computer desktop, click anywhere in the pop-up window, then click "Autorun.exe"...
  • Page 24 • If your software has searched several printers, click "One-click intallation" button, and the printer list interface will pop up. Please select "Configure printer with Wi-Fi via USB and install" and select USB printer, click "Confirm" button and enter into installation process to complete automatic network configuration and driver installation.
  • Page 25 Note: • When the printer IP address changes under printer driver installed with host ID , you can also directly print without re- installing the driver. If you need to install the printer driver with the host ID, please check the option "Install the printer in the list with host ID".
  • Page 26 Note: • You can put your mouse cursor in the "One-click installation" button to check the popup information in order to confirm if the current printer is the one you need to install through IP address before you click the button. •...
  • Page 27 • If your software has searched more than one printers, the printer list interface will pop up.You need to configure the current printer which is connected via USB cable to wireless network and install driver. Please select "Configure the print via USB and install"...
  • Page 28 Note: • When the printer IP address changes under printer driver installed with host ID, you can also directly print without re- installing the driver. If you need to install the printer driver with the host ID, please check the option "Install the printer in the list with host ID".
  • Page 29 Note: • Some computers may be unable to auto play the CD because of system configuration. Please double click "Computer" icon, find "DVD RW driver", then double click "DVD RW driver" to run the installation procedure. 4. Click on the "I agree" button on the right bottom corner after reading the license agreement and enter into driver installation interface.
  • Page 30 6. After the installation, click "Print &Test Page" button. If your printer prints the test page successfully, it means that you have installed the driver correctly. 3.1.1.3.2. The printer is already connected to wireless network 1. The printer is already connected to wireless network, you can print the "Network configuration page" to check.(See Chapter to for how to print).
  • Page 31 • If the software has searched several printers, the printer list interface will pop up. Please select the printer you need according to your printer wired network IP address or host ID.
  • Page 32 Note: • If the printer you need is not shown in the list, please click "Refresh" button to search again. If it is not found, please check if the printer and computer are in the same network. (Please see Chapter 5.3 for how to check).

  • Page 33: Manual Installation

    3.1.2. Manual installation Before installing the drive, you need to learn about printer model by printing printer information page out and check the product name (please refer to Chapter 7.2 for printing methods). 3.1.2.1. Installation via USB connection 1. Connect the printer to computer via USB cable, power the printer and computer on. 2.
  • Page 34 8. After the installation, click "Print &Test Page" button. If your printer prints the test page successfully, it means that you have installed the driver correctly. 3.1.2.2. Installation via wired network connection 1. Turn the power of printer and computer on. 2.
  • Page 35 Note: • If the printer you need to connect is not in the list of printers searched, please click “Refresh” to search again. • When the printer IP address changes under printer driver installed with host ID , you can also directly print without re- installing the driver.
  • Page 36 Note: • Some computers may be unable to auto play the CD because of system configuration. Please double click "Computer" icon, find "DVD RW driver", then double click "DVD RW driver" to run the installation procedure. 4. Click on the "I agree" button on the right bottom corner after reading the license agreement and enter into driver installation interface.
  • Page 37 9. The installation software will search the printer automatically after wireless network is configured successfully. The search process may need some time. 10. Select the printer needs to be connected and click “Next”. Note: • If the printer you need to connect is not in the list of printers searched, please click “Refresh” to search again. •...
  • Page 38 • Windows 10 system: When the "DVD RW driver" window pops up from the right top corner of computer desktop, click anywhere in the window, then click "Autorun.exe" to run the installation procedure. Note: • Some computers may be unable to auto play the CD beacase of system configuration. Please double click "Computer"...
  • Page 39 9. The installation software will search the printer automatically and the searching process may need some time. 10. Select the printer needs to be connected and click “Next”. Note: • If the printer you need to connect is not in the list of printers searched, please click “Refresh” to search again. •...

  • Page 40: Mac System Driver Installation

    3.2. Mac system driver installation • Driver installation under Mac system is divided into 2 steps, driver installation and adding a printer. If you are going to print in AirPrint mode, there is no need to install a driver and you just need to add a printer directly. •...
  • Page 41 5. Click “Agree” on the prompt window popping out to accept the licensing agreement. 6. Click “Install”. 7. Input computer password and click “Install Software”. 8. Click “Continue Installation” on the prompt window popping out. 9. The system will finish driver installation automatically. •...
  • Page 42 3.3. Add printer to Mac system 3.3.1. Add up the printer via USB 1. Connect the printer to computer with USB cable and then turn power on. 2. Enter the “System Preferences” – “Printers & Scanners” of computer. 3. Click button to select “Add Printer or Scanner”.

  • Page 43: Wired Network Settings (For Printer Models That Support Wired Network Printing)

    4. Wired Network Settings (For printer models that support wired network printing) Printers that support wired network printing can be connected to the network, thereby the printer will work under the control through a wired network. 4.1. Install the Printer to Network Please refer to Chapter 3.1.3 to see the installation steps of NET Model.

  • Page 44: Wireless Network Setup (Applicable To Wi-Fi Models)

    5. Wireless network setup (applicable to Wi-Fi models) Depending on model, the printer with Wi-Fi printing function supports the two types of wireless network connection of both infrastructure connection and Wi-Fi hotspot connection, while there is usually only one connection between computer and printer at a time.
  • Page 45 5.1.1.2. Setup methods of wireless network setup tools 1. Take the wireless network setup tool in computer. 1) Windows system: Click the “Start menu” – “All programs” - “Printon”－ Product name – “Wireless network setup tool”. 2) Mac system: click "Go" - "Applications" - "Printon" - "Utilities" - "Wireless Network Configuration Tool" on the computer Finder menu bar.
  • Page 46 2) Please tick “No” to configure other wireless network needed to connect to. Complete configuration according to interface prompt. • At present, the printer supports 3 types of safe modes: none, WEP and WPA/WPA2. Note： 1) None: There is no encryption method used. 2) WEP: Send and receive data via security key by using WEP (Wired Equivalent Privacy).
  • Page 47 Note： • If you do not know the SSID of access point (wireless router), please click “Print Wireless Network Information Page” to view the SSID of the needed access point (wireless router). • If the printer cannot be used normally after wireless network setup is finished, please install the drive again. 3.

  • Page 48: Wi-Fi Protected Setup (Wps) Setup

    Note： • If the printer cannot be used normally after wireless network setup is finished, please install the drive again. 5.1.2. Wi-Fi Protected Setup (WPS) setup If the access point (wireless router) supports Wi-Fi Protected Setup (WPS), the Wi-Fi key on the control panel of printer and WPS key on access point (wireless router) can be pressed in order to connect the printer to wireless network.

  • Page 49: Wi-Fi Hotspot Mode

    5.1.3. How to disable the Wi-Fi network connected Connect the wireless network in infrastructure mode by the steps above. If connected, the Wi-Fi light on the control panel is normally on. Press and hold this button for more than 2s to disconnect from Wi-Fi network (Wi-Fi light will be off). 5.2.
  • Page 50 3. Connection failure • Please inspect if the safe mode and password of access point (wireless router) and printer is correct. • Inspect the wireless receiving around printer. Signal receiving may be affected if the router is away from the printer or there is an obstacle between them.

  • Page 51: General Settings

    7. General Settings This chapter mainly introduces some general settings of the menu on the control panel. 7.1. System Settings 7.1.1. Toner Save Setting Users can select Toner Save Setting to lower the cost of printing. When the Toner Save mode is "On", the output color of the copy will be lighter.
  • Page 52 3) Press direction pad "▲" or "▼" to select "1. Toner Save Setting" option and press "OK" button. 4) Press direction pad "▲" or "▼" to select "1. Close" and press "OK" button. When symbol "*" appears after "1. Close", it indicates that the toner save setting is off;...

  • Page 53: Language Setting

    7.1.2. Language Setting "Language Setting" is used to select the language to be displayed on the control panel. 1) Press "Menu" button to enter the menu interface. 2) Press direction pad "▲" or "▼" to select System Settings and press OK button. 3) Press direction pad "▲"...

  • Page 54: Sleep Time Setting

    7.1.4. Sleep Time Setting Set the Sleep Mode to lower the power consumption. Sleep Time Setting allows you to select the idle time before the device enter into Sleep Mode. The default idle time is 1 minute. 1) Press "Menu" button to enter the menu interface. 2) Press direction pad "▲"...

  • Page 55: Network Settings

    7.1.6. Network Settings You can view or set the network status through Network Settings. 1) Press "Menu" button to enter the menu interface. 2) Press direction pad "▲" or "▼" to select System Settings and press OK button. 3) Press direction pad "▲" or "▼" to select Network Settings and press OK button. 4) Press direction pad "▲"...

  • Page 56: Network Information

    7.1.7. Network Information Users can check the network status through Network Information. 1) Press "Menu" button to enter the menu interface. 2) Press direction pad "▲" or "▼" to select System Settings and press OK button. 3) Press direction pad "▲" or "▼" to select Network Information and press OK button. 4) Press direction pad "▲"...

  • Page 57: Print Function

    8. Print 8.1. Print Function You can set the print function through "Start"-"Device and Printer"- select corresponding printer- right click – set print function in "Print Preferences". Some functions are as follows: Functions Diagram Manual Duplex Collate Print Reverse Print N-in-1 Poster Print (for Windows...

  • Page 58: Open Help Document

    8.2. Open Help Document You can open the "Printing Preferences" and click "Help" button (for Windows Operation System only). The help document contains the user guide where you can find the information on print settings.

  • Page 59: Duplex Print

    8.3. Duplex Print 1) The printer driver supports manual duplex. Note: • If the paper is thin, it may wrinkle. • If the paper is curled, make it flat and put it back into the manual feeder tray. • If the manual duplex function causes a paper jam, see Chapter 13.1 for handling it.
  • Page 60 b) Select Printon printer Click "Preferences" to set printing. c) Set options in "Manual Duplex" of the "Basic" tab and click "OK" after completing the settings.
  • Page 61 d) Click "Print". Note: • It is recommended to raise the output tray to prevent the paper from sliding out of it. If you choose not to raise the output tray, we recommend that you immediately remove the printed paper output from the printer. e) Send the print task after choosing Manual Duplex, then the following prompt window will appear, telling you the next specific operations.

  • Page 62: Cancel Print Job

    g) You can click "Close" button to close this prompt window, and it will not appear until the next Manual Duplex job comes in. 8.4. Cancel Print Job You can press the Cancel button on the control panel to cancel the print job you want to cancel during the printing process, or cancel the print job in the printing pool.
  • Page 63 3. After the window pops up, select "Print". 4. Select printer 1) For USB Model printer: plug the USB cable, the corresponding printer will automatically show in the left list. 2) For NET Model printer: plug the network cable, click on symbol "+" at the bottom of the left list to add printer. 3) For Wi-Fi Model printer: select the Wi-Fi icon on the top right corner of the page, click on "Open Network Preferences"...
  • Page 64 After the window pops up, click on SSID. Select the corresponding SSID.

  • Page 65: Copying Function

    5. Open the document to be printed, click on "Document" – "Print". After the window pops up, set the printing parameters, and press the "Print" button on the top right corner. 9. Copying 9.1. Copying function Copying function PS22 Image quality ●...

  • Page 66: Image Quality

    9.2. Copying method 1. Press “copying key"/"ID card copying key”/"receipt copying key” on control panel. 2. Put the original document in automatic document feeder (ADF) (supporting common copying only) with right-side up or put it on glass platform with right-side down (for the method on how to put original document, see 2.5.). 3.
  • Page 67 9.4.3. Resizing When original document is copied, resize image copied. The resizing includes “fixed” and “manual adjustment” and the default value is 100%. 1. Fixed resizing: 141% A5->A4、122% A5->B5、115% B5->A4、97% LTR->A4、94% A4->LTR、86% A4->B5、81% B5->A5、 70% A4->A5. e.g.: 70% A4->A5： 2.“Manual adjustment” applies to copying with glass platform only, the adjustment scope of which is 25%-400% and 5% can be adjusted each time after “direction key”...
  • Page 68 9.4.5. Clone Clone setting enables the printing of many original images on one piece of paper. The clone copying includes 3 modes: 2x2： 3x3： 4X4： Note: • The “clone” and “resizing function” cannot be set at the same time. 9.4.6. Poster Poster setting enables the printing of one piece of original document on several pieces of paper.
  • Page 69 9.5. ID card copying setting Change relevant setting with “copying setting menu” for better copying effect. 1. Press “ID card copying key” on control panel and then press “OK key” to enter “copying setting” interface. 2. Press “direction key” to select options and then press “OK key” to enter setting interface. 3.

  • Page 70: Paper Setting

    9.5.3. Paper setting ID card copying supports A4 and Letter paper dimension. 9.6. Receipt setting Change relevant setting with “copying setting menu” for better copying effect. 1. Press “receipt copying key” on control panel and then press “OK key” to enter “copying setting “interface. 2.

  • Page 71: Single Page Scan

    10.1.2. Single Page Scan The default scan mode of control panel is Single Page Scan mode. For the specific steps of scan operation, please refer to Chapter 10.1. 10.1.4. Merge Scan When you want to merge multi-page scanned documents into one PDF, please use Merge Scan function.

  • Page 72: Other Scan Functions

    3. Press "Start" button and the Scan Process Bar Interface will pop up on the computer. 4. After completing scanning the first page, the contents as shown below will appear on the control panel: Press "Start" button - scan the next page Press "OK"...
  • Page 73 ④ Click on "New" and the following window will pops up, edit the name of contacts ,input the E-mail address and then click on "Submit". ⑤ Put the document on the platen. ⑥ Press "Scan" button on the control panel, and press “▲” or “▼" to select "1. Single Page Scan" or "2. Merge Scan", then press "OK"...
  • Page 74 ③ Click "New", the following window will pop up. Set the relative parameters of the FTP Protocol. After complete setting, click on "Submit". ④ Put the document on the platen. ⑤ Press "Scan" button on the control panel, press “▲” or “▼" to select "1. Single Page Scan" or "2. Merge Scan" and press "OK"...
  • Page 75 Note: The relative parameters setting of the FTP Protocol are as follows: FTP Server: IP Address of the server (such as 10.10.145.100 ) Port Number: Default port number is 21 Login Name: For example, anonymous Password: such as (anonymous login needs no password) Confirm Password: For example (anonymous login needs no password) Server Name: For example, Printon 10.2.

  • Page 76: Twain Scan Driver

    This product complies with the TWAIN and Windows Image Application (WIA) standard. If using the application which supports TWAIN and WIA standard, users can use the scan function and directly scan the images to the open application. The handbook requires Office Software (Word and Excel) and Photoshop, for example, to show the operation. 10.2.2.

  • Page 77: Wia Scan Driver

    Note: Click on the "Port" below to select the scan port, which is shown as below: 10.2.2.2. Photoshop Operation Steps: 1) Launch Photoshop, click on "File" – "Import" on the top left corner, select TWAIN Scan, as is shown below: 2) After the window pops up, please refer to Step 3 of 10.2.2.1 to see the specific operation steps.
  • Page 78 2) Click on "Device" and select WIA Scan, click the “Custom Insert” below. 3) The prompt window as is shown below, set the scan information. 4) Click on "Adjust the Scanned Image Quality" on the bottom left corner of the above picture, the advanced properties interface will pop up, then users can set the scan;...
  • Page 79 2.Photoshop Operation Steps: 1) Launch Photoshop, click "File"- "Import" on the top left corner and select WIA Scan, as is shown below: 2) After the window pops up, please refer to Step 3 and Step 4 of 10.2.3.1 to see the specific operation steps. 10.2.3.2.
  • Page 80 3) Click on "Start Scan" in the above option bar. 4) After the window pops up, set the scan and click "Scan" on the bottom right corner and start scan.

  • Page 81: Cancel Scan Job

    10.2.4. Cancel Scan Job During the scanning, two ways are available to cancel the job: 1) Press "Cancel" button on the control panel to cancel the job. 2) Click Cancel button on the scan progress bar interface of the computer to cancel the job. 10.3.
  • Page 82 3. After the window pops up, click on "Scan". 4. Click on "Open Scanner" and the scan window will pop up.
  • Page 83 5. Click on "Show Details" on the bottom right corner to set the scan parameters. 6. Click on "Scan" on the bottom right corner and start scan. 10.3.1.2. Call CIA through applications Operation Steps: 1) Click on "Finder" icon on the bottom left corner of the computer desktop, or use keyboard shortcuts command+shift+C to open the window.

  • Page 84: Twain Scan

    2) After selecting the printer in the left list, set the scan parameters in the right list. Click on "Scan" on the bottom right corner and start scan. 10.3.2. TWAIN Scan Take Photoshop as an example. Operation Steps: 1) Launch Photoshop, click on "File" – "Import" on the top left corner and select TWAIN Scan, as is shown below: 2) After the window pops up, please refer to Step 3 of 10.2.2.1 to see the specific operation steps.

  • Page 85: Routine Maintenance

    11. Routine Maintenance 11.1. Cleaning the Printer Note: • Please use mild detergents. Please clean the printer in accordance with the following steps: 1. Turn off the main power switch and unplug the power cord, USB cable, phone cord and the network cable. 2.

  • Page 86: Use And Maintenance Of Laser Toner Cartridge

    6. Remove the laser toner cartridge along the guides. Note: • When removing the laser toner cartridge, put the cartridge in a protective bag or wrap it with thick paper to avoid direct light damaging the photosensitive drum. 7. Gently wipe the dustproof mirror of laser scanning surface with a cotton swab or a dry and lint-free soft cloth with a little alcohol.

  • Page 87: Replace Laser Toner Cartridge

    please immediately wash with clear water, and consult a doctor immediately if you feel unwell. • When placing the laser toner cartridge, please keep it away from the area reachable by children. 12.2.2. Service Life of the Laser Toner Cartridge Service life of the laser toner cartridge depends on the amount of toner that print jobs require.

  • Page 88: Troubleshooting

    4. Open the package of a new laser toner cartridge, hold the handle of the cartridge and gently shake around 5 to 6 times, so as to make the toner evenly distributed inside the cartridge. 5. Remove the cartridge protector (blister cover), insert the cartridge along the guides into the printer, then push it firmly along the direction of the arrow until you hear a "click"...

  • Page 89: Clearing Jammed Paper

    13.1. Clearing Jammed Paper Note: • Remove the jammed paper in accordance with the following steps, close the upper cover and tidy the paper in the tray, then the printer will automatically resume printing. If the printer cannot automatically start printing, please press the button on the control panel.

  • Page 90: Error Message

    5) After removing the jammed paper, insert the laser toner cartridge into the printer along the guides until you hear a "click" assuring you that the cartridge is fully inserted. 6) Neatly put the paper in the tray, and do not carry out the next print until the indicator light resumes print-ready status. 7) If you cannot remove the jammed paper yourself, please contact your local Printon Authorized Repair Center or send the printer to the nearest Printon Authorized Service Center for repair.

  • Page 91: Common Troubleshooting

    paper in the ADF. Note: • If the problem remains, please contact Printon Customer Service. 13.3. Common Troubleshooting 13.3.1. Common Trouble Trouble Type Trouble Cause Solution Problems in Poor print quality 13.3.2. Image Defects. 13.3.2. Image Defects. printing Failed to copy The scanner is damaged.

  • Page 92: Image Defects

    • Too much paper in the • Remove excess paper from the tray. If you print on tray. special print media, please use the manual feeder tray. • The print media is beyond the usage specification • Make sure to use the paper that meets range.
  • Page 93 • The print media that does not meet usage specification • Please use the print media within the is used. For example, the media is damp or too rough. specification range. • The inside of the printer is dirty. • Clean the inside of the printer. •...

  • Page 94: Menu Structure

    Wrinkled paper • The laser toner cartridge is dirty. • Clean the laser toner cartridge or replace it with a new one. • The transfer roller inside the printer is dirty. • Clean the internal transfer components • The transfer voltage inside the printer is abnormal. of the printer.

  • Page 95: Product Specifications

    15. Product Specifications Overview of the Specifications Product Size 417mm*305mm*244mm (W*D*H) Product Weight about 7.5Kg (No wrappage, with random cartridges) Preferred Temperature Range for Printing: 10-32°C (50°F-90°F) Print Environment Preferred Moisture Range for Printing: 20% - 80% Power Voltage AC220~240V (-15%, +10%), 50Hz/60Hz; 3A Print: ≤54dB Noise Standby: ≤30dB...

  • Page 96: Print Specifications

    Print Specifications Print Speed PMF22: (A4 20/22ppm)/(Letter 21/23ppm) Print Time of First Page <7.8sec Print Language Copy Specifications Copy Speed 22cpm (A4)/23cpm (Letter) FCOT Flatbed <10 seconds Maximum Pages for Successive Print 99 pages Zoom Ratio 25%~400% Other Copy Functions ID copy, Receipt copy, N-up copy, Clone copy Scan Specifications Scan Type...
  • Page 97 Thank You...
