Summary of Contents for EVOCONNECT HDV-312

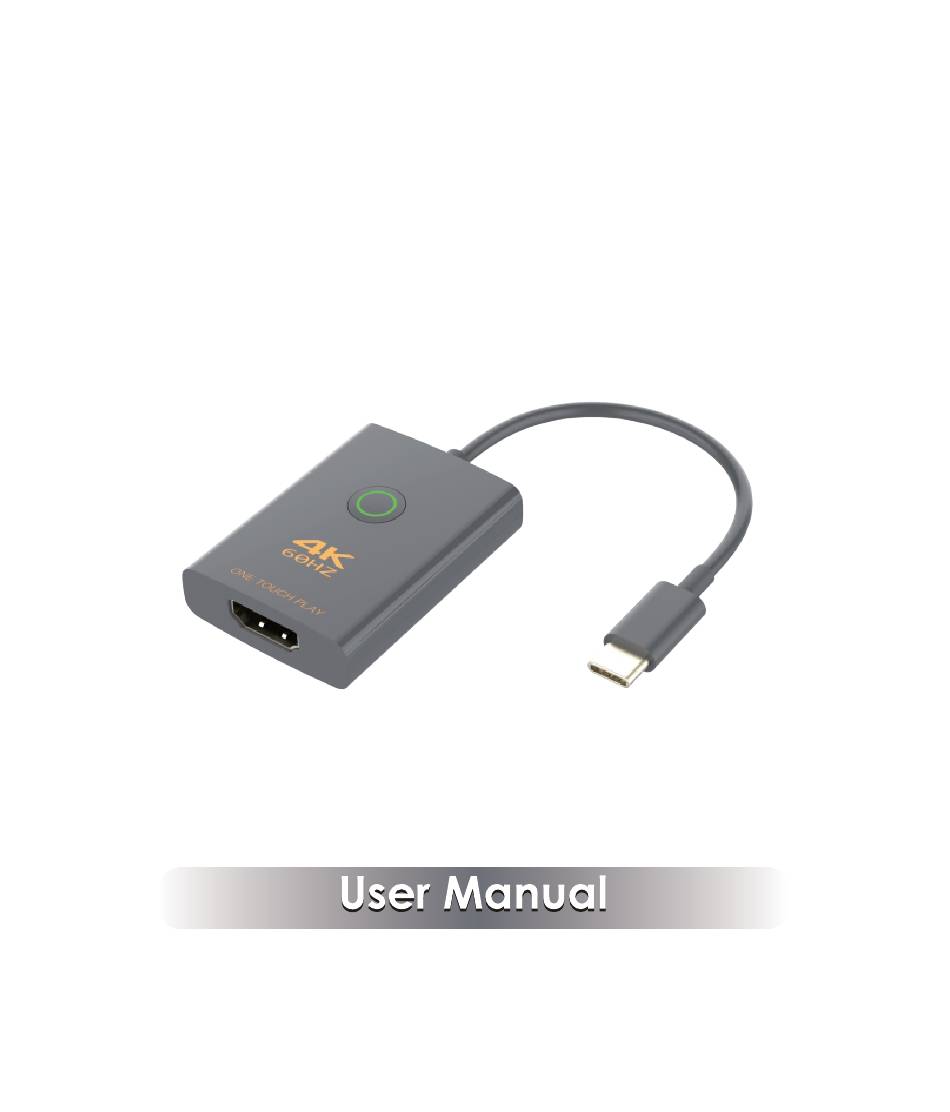

- Page 1 One Click Security USB-C to HDMI Adapter VER 1.0...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc.
- Page 3 1. Introduction This One Click Security USB-C to HDMI Adapter has 1 USB INPUT and 1 HDMI OUTPUT, which can convert USB-C signal to HDMI signal with video resolution up to 4K@60Hz 4:4:4. It supports one click video mute for security. You can easily turn the video on and off at hand.
- Page 4 4. Specifications Technical HDMI Compliance HDMI 2.0b USB-C Compliance DP 1.2a Video Bandwidth HDMI: 18 Gbps Video Resolution Up to 4K2K@60Hz Color Depth 8-bit, 10-bit, 12-bit Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2 LPCM 7.1CH, Dolby True HD, and Audio Format DTS-HD Master Human body model —...
- Page 5 5. Operation Controls and Functions Name Function Description USB IN USB type-C port, connect to a source device. HDMI signal output port, connect to a display HDMI OUT device, such as TV set. Button: PC/laptop picture on/off LED&Button LED Green: PC/laptop picture on LED Red: PC/laptop picture off...
- Page 6 6. Application Example Notebook with HDTV USB-C port...
