Nitecore RSW2i WL User Manual

RSW2i WL

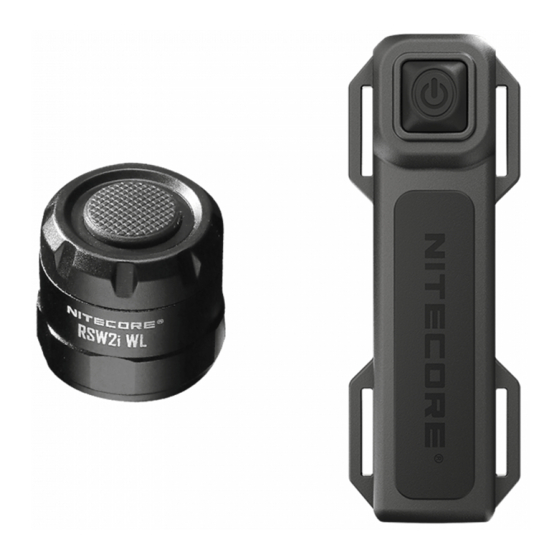

The RSW2i WL Wireless Remote Switch is for wireless control of
NITECORE i Series flashlights.
Specifications
Compatible With: P10i, P10iX, P20i, P20i UV, P20iX, P30i, P35i
Package Contents:
Wireless Tailcap
Hook-and-loop Fastener
Picatinny Rail Mounts x 2
(optional)
Operation Instructions
Connect / Disconnect the Wireless Remote Switch
(The pairing between the Wireless Tailcap and the Wireless
Remote Switch is preset in the factory.)
As illustrated, unscrew the original tailcap of the flashlight and
replace it with the Wireless Tailcap. After inserting the battery
and tightening the Wireless Tailcap,
half press the Wireless Tailcap 3
times, the indicator on the tailcap
will fade in and out, informing the
user that the Wireless Remote
Switch has been connected with
the flashlight. After connecting, half
press the Wireless Tailcap 3 times
again, the Wireless Remote Switch
will be disconnected.
Note:
1. The maximum signal range between the Wireless Tailcap and
the Wireless Remote Switch is 1m (3.28ft) when there are no
obstacles blocking the path.
2. The Wireless Remote Switch is powered by 1 x 3V CR1632
button cell battery which enables approx. 4,000 presses.
The standby time is approx. 12 months for a new battery. To
replace the button cell battery, remove the battery cap of the
Wireless Remote Switch with a screwdriver or a key.
3. Fully tighten the Wireless Tailcap to the flashlight tube.
The flashlight or the Wireless Remote Switch will not work
properly otherwise.
Using Wireless Remote Switch
On / Off
On: When the light is off, full press the
Button A to turn it on.
Off: When the light is on, full press the
Button A or the Button B to turn it off.
Brightness Level Adjustment
When the light is on, half press the Button
A to adjust the brightness levels.
Tactical Momentary Illumination
When the light is off, press and hold the Button B to access
TURBO Mode. Release to turn it off.
Special Modes
When the light is on, full press and hold the Button A to access
STROBE Mode. Release to keep STROBE Mode.
When the light is off, full press and hold the Button A to access
STROBE Mode. Release to turn it off.
Note: The Tactical Momentary Illumination and Special Modes
are only available for P10i, P20i, P20i UV Tactical Mode, P10iX
Tactical Mode, P20iX Tactical Mode
User Manual
Wireless Remote Switch
Hook-and-loop Straps x 2
Pairing Instructions
The pairing between the Wireless Tailcap and the Wireless
Remote Switch is preset in the factory. Please follow the steps
below if you need to re-pair them.
1. After inserting the battery and tightening the Wireless
Tailcap, half press the Wireless Tailcap 5 times, the indicator
on the Wireless Tailcap will flash quickly to indicate the
access to the pair pending status.
2. After accessing the pair pending status, press both Button
A and Button B of the Wireless Remote Switch until the
flashlight becomes steadily turned on.
Note:
1. After accessing the pair pending status, the flashlight will
return to the standby status if it fails to be paired within 5
minutes.
2. If the flashlight is turned on after accessing the pair pending
status, it will automatically exit the status.
3. Make sure the distance between the flashlight and the
Wireless Remote Switch is within 1m during the pairing
process.
4. Replace or recharge the battery when the battery power of
the flashlight is low. Changing the battery does not remove
the pairing between the flashlight and the Wireless Remote
Switch.
WARNING
THIS PRODUCT CONTAINS A BUTTON BATTERY
If swallowed, a lithium button battery can cause severe or
fatal injuries within 2 hours.
Keep batteries out of reach of children.
If you think batteries may have been swallowed or placed
inside any part of the body, seek immediate medical attention.
Warranty Service
All NITECORE products are warranted for quality. Any DOA /
®
defective product can be exchanged for a replacement through
a local distributor/dealer within 15 days of purchase. After
that, all defective / malfunctioning NITECORE
be repaired free of charge within 12 months from the date
of purchase. Beyond 12 months, a limited warranty applies,
covering the cost of labor and maintenance, but not the cost of
accessories or replacement parts.
The warranty will be nullified if
1. the product(s) is/are broken down, reconstructed and/or
modified by unauthorized parties.
2. the product(s) is/are damaged due to improper use. (e.g.
reversed polarity installation)
3. the product(s) is/are damaged due to battery leakage.
For the latest information on NITECORE
please contact a local NITECORE
®
to service@nitecore.com
※ All images, text and statements specified herein this
user manual are for reference purpose only. Should any
discrepancy occur between this manual and information
specified on www.nitecore.com, Sysmax Innovations Co.,
Ltd. reserves the rights to interpret and amend the content
of this document at any time without prior notice.
SYSMAX Innovations Co., Ltd.
TEL: +86-20-83862000
FAX: +86-20-83882723
E-mail: info@nitecore.com
Web: www.nitecore.com
Address： Unit 6355, 5/F, No. 1021 Gaopu Road,
Tianhe District, Guangzhou,
510653, Guangdong, China
