Apollo REACH WIRELESS RW1700-052APO Quick Start Manual

RW1700-052APO
REACH Output Module
IMPORTANT TO CONSIDER
When mounting a wireless device, a comprehensive radio survey
should have been carried out to establish the location that provides
the best coverage and optimum reach. Taking into consideration the building
structure and materials, the survey identifies the wireless infrastructure
required and product locations for optimum performance, identifying
any factor that could prevent radio integrity.
Avoid fixing or mounting the unit close to the following:
• Equipment that utilises large electrical currents
• Large metal objects or structures
• Fluorescent lighting fittings
• Metal ceiling structures
• IT cabling.
Keep 2 meters minimum spacing between other wireless equipment
in the area to avoid signal interference.
EN54 approved environmental temperature range is -10°C to +55°C
UNBOXING
• When unboxing the output module you will find the unit and its lid.
• This comes with pre-formed mounting holes to drill out and mount the backbox.
• Securing screws are supplied for the lid.
• A resistor pack is supplied for the monitored load connection (10KΩ R
For more information, please refer to the user manual. Available on apollo-fire.co.uk
Apollo Fire Detectors Ltd. 36 Brookside Road, Havant, Hampshire, United Kingdom, PO9 1JR
T: +44 (0)23 9244 2706 - E: techsales@apollo-fire.com - W: www.apollo-fire.co.uk
REACH Output Module
QUICK START GUIDE
THE BOX INSIDE THE BOX
Product Part Number • 1 x Output Module
Product Description • 2 x CR123A batteries
• 4 x Securing screws
• 1 x Resistor pack
• 1 x Quick start guide
Scan QR code
for full user manual
).
EOL
RW1700-052APO
RW1700-052APO

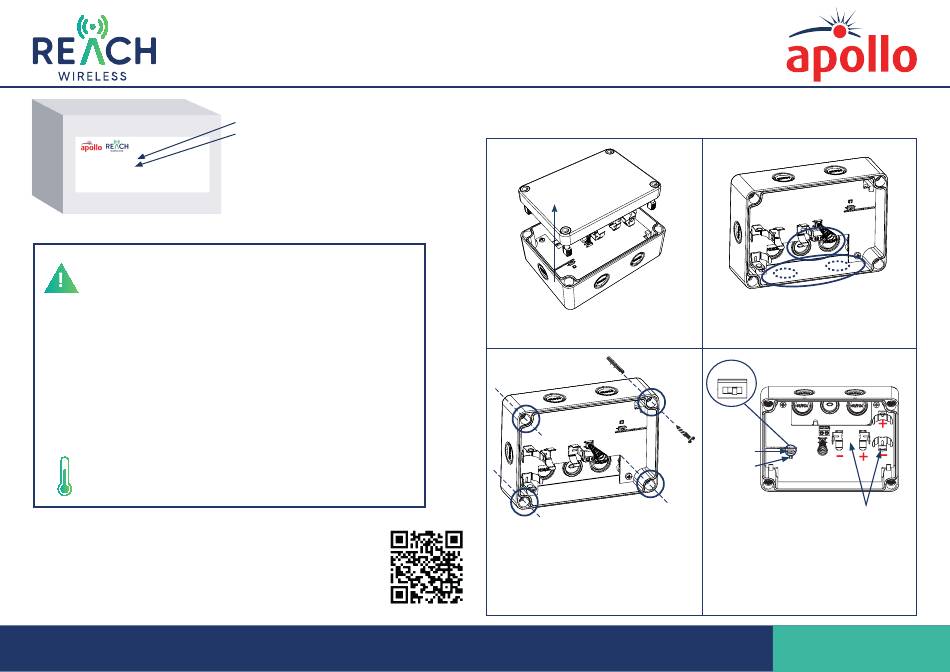

MOUNTING STEPS
The Output Module is designed to meet IP65 rating, suitable for external mounting.
Proceed as follows to complete the device installation.
Remove the lid from the backbox, removing the screws
on the corners.
• To retain IP-rating, please ensure you use the outer holes
on the casing.
• Using a pencil, mark through the outer holes on the desired
surface you will attach the unit to.
• Using a suitable-sized drill bit (6 mm) drill the marked screw
points on your chosen surface.
• Ensure you use the correct fixings for the type of surface
you are mounting to.
• Screw the backbox to the desired surface using all fixing holes
and appropriate-sized roundhead screws (not countersunk).
1
• Remove the appropriate knock-out on the underside or lower
rear of the casing, install the M16/20 IP-rated gland.
• Note: pay attention to avoid damages to the PCB, while
removing the knock-out, or remove it before starting.
3
ON 1
DIP
SWITCH
LED
BATTERY
COMPARTMENTS
• Ensure the switch on the PCB is in position ON.
• Fit the 2x CR123A batteries ensuring you have checked
they are the correct way round observing the polarity
indications on the PCB.
• The LED will signal 4 times red.
• Move the switch on the PCB to position 1. The LED will blink
few seconds green and then signal alternatively green/red
4 times.
RW_QSG_MODULE_OUTPUT_REV_A.1
2
4
