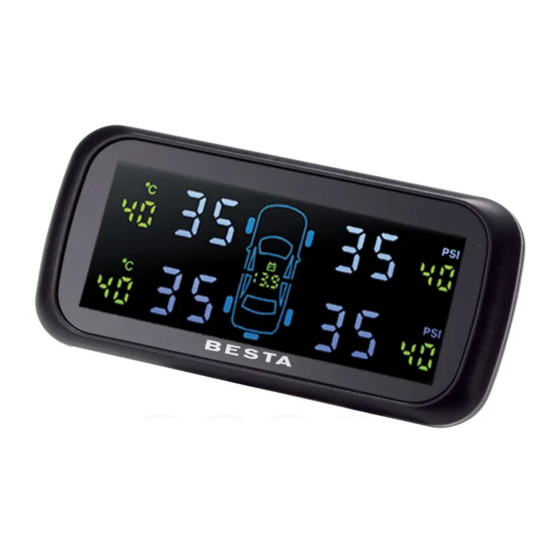

BESTA TPMS-3

Tire Pressure Monitoring System

User's Manual

Table of Contents

Need help?

Do you have a question about the TPMS-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Besta TPMS-3

Page 1 BESTA TPMS-3 Tire Pressure Monitoring System User’s Manual...
Page 2: Table Of Contents
CONTENTS 1. Attention............2 2. Installation Notice………………………………. 2 3. Components………………..…………………….. 3 Components….……………..……………… 3 3.2 Monitor Icons Description…………….…… 3 4. Monitor Installation …………….……………..…. 4 5. Functions & Features ……………...……….…. 6 Monitor Functions………...……………………… 7 7. Factory Default Settings and Change……….… 8 8. Alert Status…………………….……………… 13 9.
Page 3: Attention
1. Attention Read through this guide before installing the product. Install the monitor (receiver) inside the vehicle where it doesn’t affect your driving. The monitor should be well fixed to avoid falling off during driving. Check if there is any air leakage after installing the sensors. (Spray some soapy water on the valve, the bubble goes bigger if air leakage.) The tire may blowout for high tire pressure, and higher fuel consumption for lower tire pressure.
Page 4: Components
3. Components Setting button Selection buttons Note: Press for 3 seconds to access setup mode, save and exit. 3.1 Components Monitor Holder Cigarette Lighter Car Charger Note: 4pcs Sensors in the package (external mini/ external regular/ internal depend on the packaging) 3.2 Monitor Icons Description...
Page 5: Monitor Installation
Notification and descriptions Pair the sensors & the receiver Alert for low tire pressure Swap the tires Alert for low battery of sensor Alert for leakage or flat tires Temperature unit Alert for high tire temperature Pressure unit Alert for high tire pressure Car battery voltage .
Page 6 Connect power adaptor B. Cigarette Lighter Mounting (factory default mounting) Note: Please use the assigned screws to avoid damage to the product Mount the holder on the backside of monitor (receiver) and tighten the screws Insert the cigarette lighter connector into the holder and tighten the screws...
Page 7: Functions & Features
Suggestion: Install the monitor (receiver) and power it up before installing the sensors. Connect the power line to the DC jack on the cigarette lighter. 5. Functions and Features 5.1 Main Functions This product is mainly used for monitoring the pressure and temperature of tires automatically while driving.
Page 8: Monitor Functions
temperature is high than the limitation (usually less than 80℃), tire wear will increase 2% for every 1℃ increase D. Real-time Monitoring Tire Pressure The product can monitor the pressure and temperature any time, if there is any abnormal status, an alert will be sent immediately. 5.2 Product Features A.
Page 9: Factory Default Settings And Change
2 mounting methods, cigarette lighter and monitor holder Wide angle screen design Specifications Input voltage DC 8V ~ 16V Storage temperature -30℃ ~ +85℃ Operation temperature -20℃ ~ +80℃ Frequency 433.92MHz Dimension 80*38*11.5 (L*W*H) Weight 33G (Without cigarette lighter or holder) 7.
Page 10 Pressure Unit Setting Press for 3 seconds to access the setting mode, press to select pressure unit setting. (ii) Press again to confirm the chosen of pressure unit setting. (iii) Press to select the pressure unit, press to confirm. (iv) Press and hold for 3 seconds to save the setting and exit to standby mode.
Page 11 High pressure setting Press for 3 seconds to access the setting mode, press to select high pressure setting. (ii) Press again to confirm the chosen of high pressure setting. (iii) Press to adjust the pressure value, press to confirm. (iv) Press and hold for 3 seconds to save the setting and exit to standby mode.
Page 12 High temperature setting Press for 3 seconds to access the setting mode, press to select high temperature setting. (ii) Press again to confirm the chosen of high temperature setting. (iii) Press to adjust the temperature value, press to confirm. (iv) Press and hold for 3 seconds to save the setting and exit to standby mode.
Page 13 (7-2-1) (7-2-2) (7-2-3) Tire exchange setting Press for 3 seconds to access the setting mode, press to select tire swap setting. (7-3-1) (ii) Press again to confirm the chosen of tire swap setting. (7-3-2) (iii) Press to select the desired tire and press to change the tire position.
Page 14: Alert Status
(7-3-3) (7-3-4) 8. Alert Status When tire pressure or temperature is out of the pre-defined limitation value, the relative icon will be shown and the value will flash, the alarm will also turn on together with the flashing red light. Press any button to turn off the alarm, however, the flashing red light and icon will continue until the problem is solved.
Page 15 (8-1-2) High Temperature Alert For example, when the temperature of right front tire is 66℃ (higher than high Temperature value), the High temperature icon and data will flash, the audible alarm will turn on together with the flashing red light (8-1-3) (8-1-3) Fast Leakage Alert When the sensor detects fast leakage of tire, it will send an alert immediately.
Page 16 Sensor Low Battery Alert When the sensor detects low battery level, it will send an alert immediately. The low battery icon will turn on and the corresponding tire icon will flash. The audible alarm will turn on together with the flashing red light. Press any button to turn off the alarm, however, the flashing red light and icon will continue until the sensor has been replaced with a new battery.
Page 17: Trouble Shootings Guide
9. Trouble Shooting Guide Monitor doesn’t display properly A. Ensure the monitor is turned on. B. Check the connection between cigarette lighter and adapter. C. Ensure DC socket is connected. D. If above treatment are unable solve the problem, please contact the local dealer.
Page 18 A. Ensure the sensor is installed B. If it’s an external sensor, please screw the sensor in the air nozzle firmly, because the sensor is not able to push up the cord of air nozzle, it can’t detect the tire pressure. Monitor screen display wrong color Check whether the temperature is too low in vehicle (lower than -70℃), when the temperature return to normal level, it will display properly.
