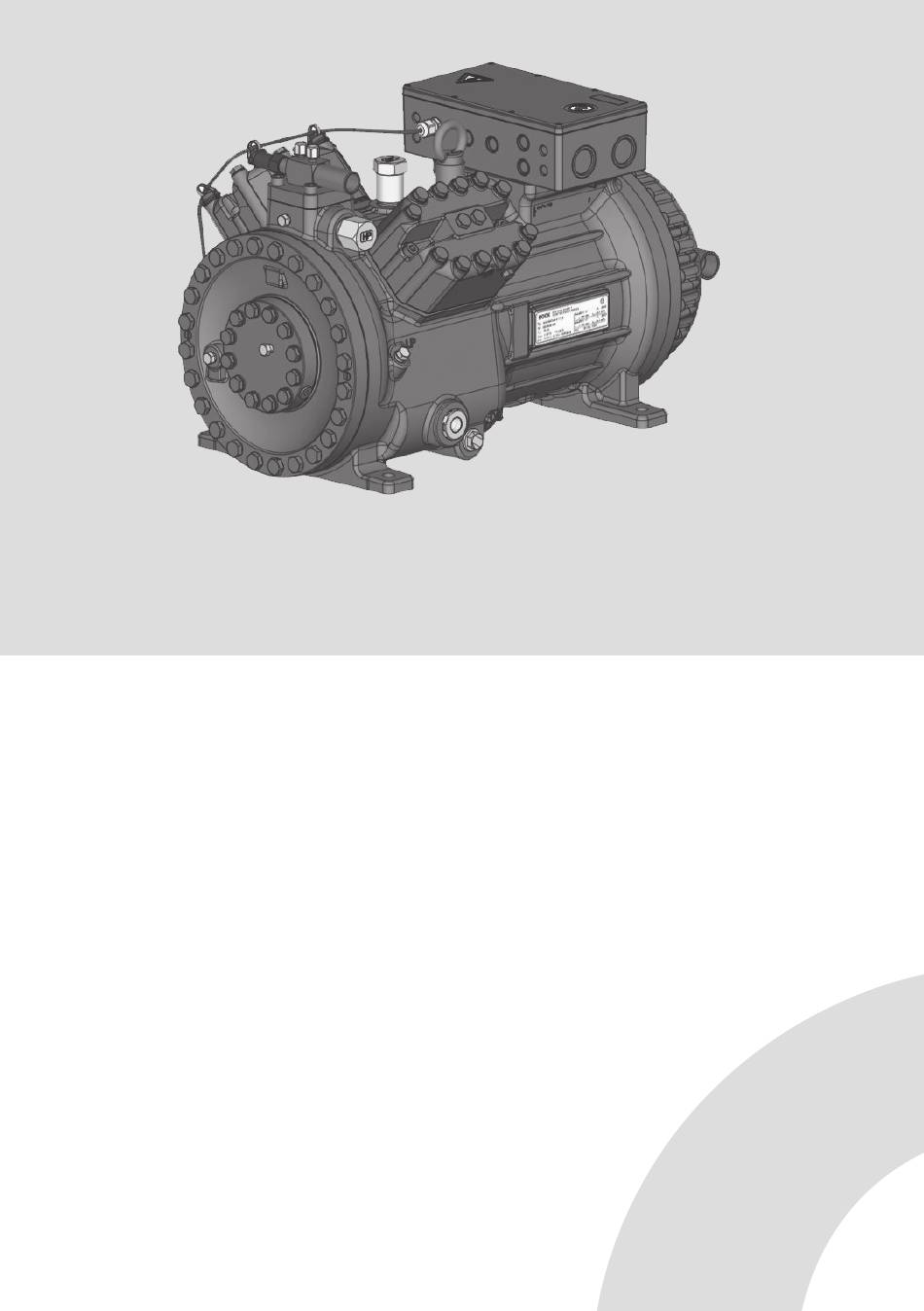

BOCK HGX 34 CO
Assembly instructions
96459-05.2022-Gb
Translation of the original instructions
HGX34/110-4 (ML)(S)(SH) CO
HGX34/150-4 (ML)(S)(SH) CO
HGX34/190-4 (ML)(S)(SH) CO
HGX34/230-4 (ML)(S)(SH) CO
HGX34/110 MLP 11 CO
HGX34/130 MLP 14 CO
HGX34/150 MLP 16 CO
HGX34/170 MLP 19 CO
HGX34/190 MLP 22 CO
HGX34/210 MLP 24 CO
HGX34/230 MLP 26 CO
HGX34/290 MLP 34 CO
BOCK
®
T
HGX34/130-4 (ML)(S)(SH) CO
2
T
HGX34/170-4 (ML)(S)(SH) CO
2
T
HGX34/210-4 (ML)(S)(SH) CO
2
T
HGX34/290-4 (ML)(S)(SH) CO
2
T
HGX34/110 (SP)(SHP) 16 CO
2
T
HGX34/130 (SP)(SHP) 19 CO
2
T
HGX34/150 (SP)(SHP) 22 CO
2
T
HGX34/170 (SP)(SHP) 28 CO
2
T
HGX34/190 (SP)(SHP) 30 CO
2
T
HGX34/210 (SP)(SHP) 31 CO
2
T
HGX34/230 (SP)(SHP) 35 CO
2
T
HGX34/290 (SP)(SHP) 48 CO
2
T
2
2
2
2
T
2
2
2
2
2
2
2
2
T
T
T
T
2
T
T
T
T
T
T
T
colour the world
of tomorrow
Advertisement
Table of Contents
Related Manuals for BOCK HGX34 CO2 T
Summary of Contents for BOCK HGX34 CO2 T
- Page 1 BOCK HGX 34 CO Assembly instructions 96459-05.2022-Gb Translation of the original instructions HGX34/110-4 (ML)(S)(SH) CO HGX34/130-4 (ML)(S)(SH) CO HGX34/150-4 (ML)(S)(SH) CO HGX34/170-4 (ML)(S)(SH) CO HGX34/190-4 (ML)(S)(SH) CO HGX34/210-4 (ML)(S)(SH) CO HGX34/230-4 (ML)(S)(SH) CO HGX34/290-4 (ML)(S)(SH) CO HGX34/110 MLP 11 CO...
-
Page 2: Table Of Contents
About these instructions Read these instructions before assembly and before using the compressor. This will avoid misunder- standings and prevent damage. Improper assembly and use of the compressor can result in serious or fatal injury. Observe the safety instructions contained in these instructions. These instructions must be passed onto the end customer along with the unit in which the compres- sor is installed. Manufacturer Bock GmbH 72636 Frickenhausen Contact Bock GmbH Benzstraße 7 72636 Frickenhausen Germany Telephone +49 7022 9454-0 Fax +49 7022 9454-137 www.bock.de service@bock.de Contents Page Safety 1.1 Identification of safety instructions 1.2 Qualifications required of personnel 1.3 Safety instructions 1.4 Intended use Product description 2.1 Short description 2.2 Name plate 2.3 Type key... - Page 3 Contents Page Areas of application 3.1 Refrigerants 3.2 Oil charge 3.3 Limits of application Compressor assembly 4.1 Storage and transportation 4.2 Setting up 4.3 Connecting the pipelines - solder system 4.4 Connecting the pipelines - cutting ring system 4.5 Pipes 4.6 Flange shut-off valves (HP/LP) 4.7 Laying suction and pressure lines 4.8 Operating the shut-off valves 4.9 Operating mode of the lockable service connections 4.10 Oil return 4.11 Suction pipe filter Electrical connection 5.1 Information for contactor and motor contactor selection 5.2 Standard motor, designed for direct or part winding start 5.3 Basic circuit diagram for part winding start 5.4 Special motor: design for direct or star-delta start 5.5 Basic circuit diagram for star-delta start with special motor...
-
Page 4: Safety
1 | Safety 1.1 Identification of safety instructions: DANGER Indicates a dangerous situation which, if not avoided, will cause immediate fatal or serious injury WARNING Indicates a dangerous situation which, if not avoided, may cause fatal or serious injury CAUTION Indicates a dangerous situation which, if not avoided, may imme- diately cause fairly severe or minor injury. -
Page 5: Safety Instructions
These assembly instructions describe the standard version of the compressors named in the ti- tle manufactured by Bock. Bock refrigerating compressors are intended for installing in a machine (within the EU according to the EU Directives 2006/42/EC Machinery Directive and 2014/68/EU Pressure Equipment Directive). -
Page 6: Product Description
2 | Product description 2.1 Short description • Semi-hermetic four-cylinder reciprocating compressor with suction gas cooled driving motor. • T he flow of refrigerant sucked in from the evaporator is led over the engine and provides for a particularly intensive cooling. Thus the engine can be kept on a relatively low temperature level specially during high load. • Oil pump independent of direction of rotation for reliable and safe oil supply. • O ne decompression valve each on the low and high pressure side, which vent into the atmos- phere when inadmissibly high pressure levels are reached. Transport eyelet Valve plate Name plate Oil pump Oil sight glass Fig. 1 Discharge shut-off valve Terminal box Cylinder cover Suction shut-off valve Fig. 2 Dimension and connection values can be found in chapter 9... - Page 7 2 | Product description 2.2 Name plate (example) BOCK Bock GmbH, Benzstraße 7 72636 Frickenhausen, Germany HGX34/230-4 S CO 20,1 BC12345-001 59,8 A 24,1 170 A 275 A BOCK lub E85 CO2,C 85 E 100/150 bar Fig. 3 Voltage, circuit, frequency Type designation 50 Hz Nominal rotation speed...
-
Page 8: Areas Of Application
R744 (Recommendation CO quality 4.5 (< 5 ppm H 3.2 Oil charge The compressors are filled at the factory with the following oil type: Compressor version ML(P) and S(P): BOCK lub E85 Compressor version SH(P): BOCK C170E (only this oils may be used) ATTENTION Property damage possible. The oil level must be in the Max. -
Page 9: Limits Of Application
3 | Areas of application 3.3 Limits of application ATTENTION Compressor operation is possible within the operating limits shown in the diagrams. Please note the significance of the shaded areas. Thresholds should not be selected as design or continuous operation points. - Permissible ambient temperature (-20 °C) - (+60 °C). -
Page 10: Setting Up
Datum Name Zeichnung hergestellten Gegenstände durch den Abnehmer oder Dritte ist nicht gestattet. Erstellt 19.04. Kurz Wir behalten uns alle Rechte, gemäß DIN ISO 16016 an dieser Zeichnung vor. Geprüft Collar Benzstraße 7 72636 Frickenhausen Germany www.bock.de Freigabe Fig. 6 Figure similar... -
Page 11: Pipes
4 | Compressor assembly Tube preparation: The tube has to be sawn in a right angle. An angular tolerance of ± 1° is permissible. Slightly trim the pipe ends inside and outside. For thin walled steel pipes or soft pipes made of nonferrous metal, reinforcing sleeves have to be used. Pipe assembly: Push union nut (5) and cutting ring (3) onto pipe (2). Insert pipe into socket (6) as far as it will go and firmly press against pipe stop, otherwise incorrect assembly. Hand tighten union nut until socket, cutting ring and union nut are locked. Tighten union nut 1 turns using a spanner wrench. The cutting ring is noticeably locked to the socket face (for assembly inside pipe connection, hold up valve with a spanner wrench). This should cause the cutting ring with its cutting edges (1) to cut into the pipe resulting in a visible collar. In order to stick to the turns we recommend using marking lines on union nut and pipe. After assembly, it is necessary to check the collar. The gasket must not be... -
Page 12: Laying Suction And Pressure Lines
4 | Compressor assembly 4.7 Laying suction and pressure lines ATTENTION Property damage possible. Improperly installed pipes can cause cracks and tears which can result in a loss of refrigerant. INFO Proper layout of the suction and pressure lines directly after the compressor is integral to the smooth running and vibration behaviour of the system. -
Page 13: Operating Mode Of The Lockable Service Connections
Opening the service connection Compressor 1 / 2 Spindle: Turn - 1 turn to the right clockwise. —> Service connection opened / shut-off valve opened. The connection which cannot be shut off is intended for safety devices. After activating the spindle, generally fit the spindle protection cap again and tighten with 40 - 50 Nm. This serves as a second sealing feature during operation. 4.10 Oil return To ensure the oil return function will work reliably no matter what kind of system configuration you are using, Bock recommends incorporating oil separators or oil level monitoring equipment. The "O" connection is already available from the factory for the purpose of installing the additional oil level monitoring component. Oil should be returned from the oil separator to the compressor via the "D1" connection provided for this purpose on the compressor. 4.11 Suction pipe filter For systems with long pipes and higher degree of contamination, a filter on the suction-side is recommended. The filter has to be be renewed depending on the degree of contamina- tion (reduced pressure loss). -
Page 14: Electrical Connection
5 | Electrical connection Electrical connection DANGER Risk of electric shock! High voltage! Only carry out work when the electrical system is disconnected from the power supply! ATTENTION When attaching accessories with an electrical cable, a minimum bending radius of 3 x the cable diameter must be maintained for laying the cable. -
Page 15: Standard Motor, Designed For Direct Or Part Winding Start
5 | Electrical connection 5.2 Standard motor, designed for direct or part winding start Designation on the name plate Y/YY Compressors marked in this way are suitable for direct or part winding start. The motor winding is divided into two parts: part winding 1 = 50 % and part winding 2 = 50 %. This winding division reduces the start-up current during a part winding start to approx. 50 % of the value for a direct start. Not possible on compressors with LSPM Motor! In the factory, the motor is switched for direct starting (YY). For part winding start (Y/YY), remove the bridges and connect the motor feed cable according to the circuit diagram: 400 V Direct start YY Part winding start Y/YY PW II PW I ATTENTION Property damage possible. -
Page 16: Basic Circuit Diagram For Part Winding Start
5.3 Basic circuit diagram for part winding start FC1.2 FC1.1 I> I> I> I> I> I> FC1.1 FC1.2 L3 N PE Y/YY B1 B2 INT69 Compressor terminal box Anschlußkasten Verdichter Fig. 14 High pressure safety monitor Safety chain (high/low pressure monitoring ) Cold conductor (PTC sensor) motor winding Thermal protection thermostat* Oil temperature sensor Release switch (thermostat) Datum 20.02.2009 Bearb. bauknecht DELTA-P II Oil differential pressure sensor DELTA-P II (accessory) Gepr. - Page 17 L1.1 L2.1 L3.1 L1.2 P> Θ Θ Θ DELTA- P II Θ FC1.1/1.2 Motor protection switch Control power circuit fuse INT69 G Electronic trigger unit INT69 G Delay relay for contactor switch over Main switch PW INT69 HG44/66 Mains contactor (part winding 1) Mains contactor (part winding 2) BOCK COMPRESSORS Control voltage switch...
-
Page 18: Special Motor: Design For Direct Or Star-Delta Start
5 | Electrical connection 5.4 Special motor: design for direct or star-delta start Designation on the name plate ∆ / Y... - Page 19 5 | Electrical connection Star-delta start-up is only possible for 230 V power supply. Example: 230 V Δ 400 V Y Direct start Star-delta start Direct start only (not on LSPM Motor) Only direct start is possible with LSPM Motor.
- Page 20 5.5 Basic circuit diagram for star-delta start with special motor FC1.1 I> I> I> FC1.1 FC1.2 FC1.2 I> I> I> L3 N PE ˜ B1 B2 INT69G Compressor terminal box Anschlußkasten Verdichter Fig. 15 High pressure safety monitor Safety chain (high/low pressure monitoring ) Cold conductor (PTC sensor) motor winding Thermal protection thermostat (PTC sensor)* Oil temperature sensor Release switch (thermostat) Datum 20.02.2009 DELTA PII Oil differential pressure sensor DELTA-P II (accessory) Bearb.
- Page 21 L1.1 L2.1 L3.1 L1.2 P> Θ Θ Θ DELTA- P II Θ FC1.1/1.2 Motor protection switch Control power circuit fuse INT69 G Electronic trigger unit INT69 G Delay relay for contactor switch over Main switch Mains contactor D/S INT69 HG44/66 neu Δ-contactor BOCK COMPRESSORS Y-contactor Control voltage switch...
-
Page 22: Electronic Trigger Unit Int69 G
5 | Electrical connection 5.6 Electronic trigger unit INT69 G The compressor motor is fitted with cold conductor temperature sensors (PTC) connected to the electronic trigger unit INT69 G in the terminal box. In case of excess temperature in the motor winding, the INT69 G deactivates the motor contactor. Once cooled, it can be restarted only if the electronic lock of the output relay (terminals B1 + B2) is released by interrupting the supply voltage. -
Page 23: Oil Sump Heater
5 | Electrical connection Relay position INT69 G Trigger unit state Relay position Deactivated state 11-12 INT69 G switch-on 11-14 B2 12 14 11 Remove PTC connector 11-12 Fig. 17 Insert PTC connector 11-12 Reset after mains on 11-14 5.9 Oil sump heater In order to avoid damage to the compressor, the compressor is equipped with an oil sump heater as a standard feature. ATTENTION The oil sump heater must generally be connected and operated! Operation: The oil sump heater operates when the compressor is at a standstill. -
Page 24: Commissioning
5| Electrical connection Rotational speed 0 - f-min f-min - f-max range Start-up time < 1 s ca. 4 s immediately Switch-off time f-min/f-max see chapter: Technical data: adjustable frequency range 6 | Commissioning 6.1 Preparations for start-up INFO In order to protect the compressor against inadmissible operating conditions, high-pressure and low-pressure pressostats controls are mandatory on the installation side. The compressor has undergone trials in the factory and all functions have been tested. There are therefore no special running-in instructions. -
Page 25: Evacuation
6 | Commissioning 6.4 Evacuation ATTENTION Do not start the compressor if it is under vacuum. Do not apply any voltage - even for test purposes (must only be operated with refrigerant). Under vacuum, the spark-over and creepage current distances of the terminal board connection bolts shorten; this can result in winding and terminal board damage. First evacuate the system and then include the compressor in the evacuation process. Relieve the compressor pressure. -
Page 26: Start-Up
6 | Commissioning 6.6 Start-up WARNING Ensure that both shut-off valves are open before starting the compressor! Check that the safety and protection devices (pressure switch, motor protection, electrical contact protection measures, etc.) are functioning properly. Switch on the compressor and let it run for at least 10 minutes. The machine should reach a state of equilibrium. Check the oil level: The oil level must be visible in the sight glass. After a compressor is replaced, the oil level must be checked again. If the level is too high, oil must be drained off (danger of oil liquid shocks; reduced capacity of the refrigerating system). ATTENTION If larger quantities of oil have to be topped up, there is a risk of oil impact effects. -
Page 27: Decompression Valves
6 | Commissioning 6.8 Decompression valves ATTENTION The compressor is fitted with two decompression valves. One valve each on the suction and discharge side. If excessive pressures are reached, the valves open and prevent further pressure increase. Thereby CO is blown off to the ambient! In the event that a pressure relief valve activates repeatedly, check valve and replace if necessary as during blow-off extreme con- ditions can occur, which may result in a permanent leak. -
Page 28: Avoiding Slugging
6 | Commissioning 6.9 Avoiding slugging ATTENTION Slugging can result in damage to the compressor and cause refrigerant to leak. To prevent slugging: The complete refrigeration plant must be properly designed. All components must be compatibly rated with each other with regard to output (particularly the evaporator and expansion valves). Suction gas superheating at the compressor input should be > 10 K (check the setting of the expansion valve). Regard oil temperature and pressure gas temperature. (The pressure gas temperature has to be high enough min. 50 °C, so the oil temperature is > 30 °C). The system must reach a state of equilibrium. P articularly in critical systems (e.g. several evaporator points), measures such as the use of liquid traps, solenoid valve in the liquid line, etc. are recommended. There should be no movement of refrigerant in the compressor while the system is at a standstill. -
Page 29: Work To Be Carried Out
7.3 Spare part recommendation / accessories Available spare parts and accessories can be found on our compressor selection tool under vap.bock.de as well as at bockshop.bock.de. Only use genuine Bock spare parts! 7.4 Lubricants For operation with CO the following oil types are necessary:... -
Page 30: Technical Data
8 | Technical data Oil charge (sight glass centre) Oil charge (ex works) Suction line Discharge line Weight Adjustable 20 - 70 frequency range Starting current (rotor locked) Max. power consumption Max. operating current 380-420 V Y/YY - 3 - 50 Hz PW 440-480 V Y/YY - 3 - 60 Hz PW Voltage PW = Part Winding Winding ratio : 50 % / 50 % Displacement (1450 / 1740 rpm) No. - Page 31 8 | Technical data 20 - 70 380-420 V Y/YY - 3 - 50 Hz PW 440-480 V Y/YY - 3 - 60 Hz PW PW = Part Winding Winding ratio : 50 % / 50 %...
- Page 32 8 | Technical data Oil charge (sight glass centre) Oil charge (ex works) Suction line Discharge line Weight Adjustable 20 - 70 frequency range Starting current (rotor locked) Max. power consumption Max. operating current 220-240 V ∆ / 380-420 V Y - 3 - 50 Hz Voltage 265-290 V ∆ / 440-480 V Y - 3 - 60 Hz Displacement (1500 / 1800 rpm) No.
- Page 33 8 | Technical data 20 - 70 220-240 V ∆ / 380-420 V Y - 3 - 50 Hz 265-290 V ∆ / 440-480 V Y - 3 - 60 Hz...
-
Page 34: Dimensions And Connections
9 | Dimensions and connections Centre of gravity + 0,08 Anschlüsse / 16,42 Connections Z SI2 Saugabsperrventil, Ro Suction line valve, tub Druckabsperrventil, R Discharge line valve, B2,I Anschluss Saugseite, Connection suction si Anschluss Saugseite, Anschlüsse / + 0,08 Connection suction si 16,42 Connections Anschluss Saugseite,... - Page 35 9 | Dimensions and connections Suction line see technical data, chapter 8 Discharge line 7 / 16 “ UNF Connection suction side, not lockable 7 / 16 “ UNF Connection suction side, lockable 1 / 8 “ NPTF Connection suction side, not lockable 7 / 16 “ UNF Connection discharge side, not lockable 7 / 16 “ UNF Connection discharge side, lockable 1 / 8 “ NPTF Connection discharge side, not lockable 1 / 4 “ NPTF Connection oil return from oil separator 1 / 8 “ NPTF Connection oil pressure gauge...
-
Page 36: Declaration Of Incorporation
10| Declaration of incorporation Declaration of incorporation for incomplete machinery in accordance with EC Machinery Directive 2006/42/EC, Annex II 1. B Manufacturer: Bock GmbH Benzstraße 7 72636 Frickenhausen, Germany We, as manufacturer, declare in sole responsibility that the incomplete machinery... -
Page 37: Service
11| Service Dear customer, if you have any questions about installation, operation and accessories, please contact our technical service or specialist wholesaler and/or our representative. The Bock service team can be contacted by phone, +49 (0)7022 9454-0 or via service@bock.de Yours faithfully Bock GmbH... - Page 38 BOCK ® Bock GmbH Benzstraße 7 72636 Frickenhausen Germany Phone +49 7022 9454-0 +49 7022 9454-137 www.bock.de © Bock GmbH. All rights reserved. Subject to modifications.
