Summary of Contents for Dataplot EASYLAM EXPERT 80 C

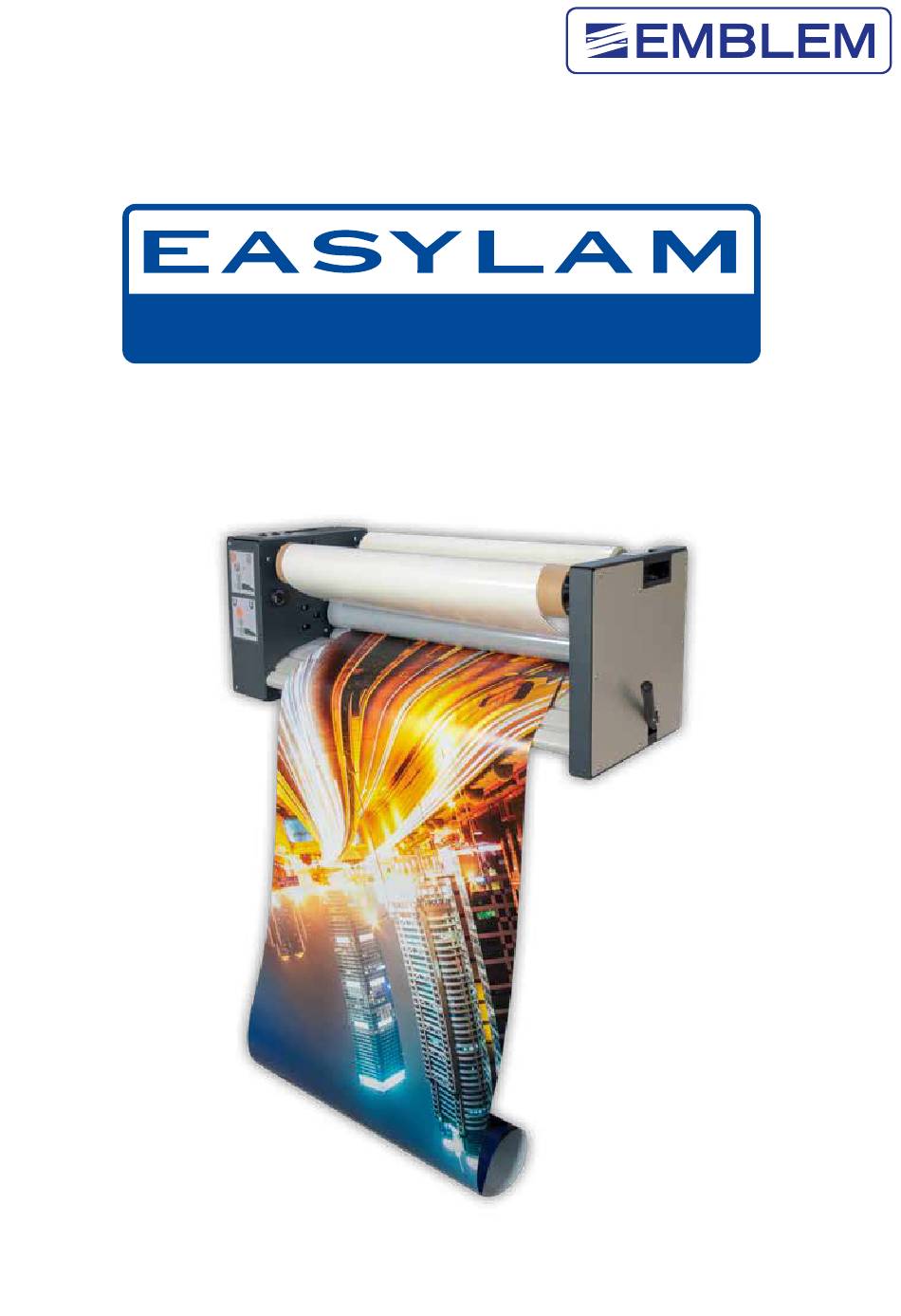

- Page 1 laminating machine EXPERT 80 C instruction manual Version 1.1...
-
Page 3: Technical Information
Read operating instructions carefully before commissioning and keep for further use. Technical information model ......................EASYLAM EXPERT 80C length ......................105 cm width ......................35 cm height ......................37 cm weight without packaging and laminate ............30 kg max. material width ..................78 cm effective roll length mm ..................795 mm max. - Page 4 Further installation instructions: Power supply The power supply specified here should be available near the site: • Single phase voltage: 230V • Frequency: 50 - 60 Hz • Current: 4.5 A Space requirement The floor space must correspond to the space requirements for the scheduled use of the machine. Also take into account the space required for feeding or discharging the material and the dimensions of the images and plates to be processed.
- Page 5 - 3 -...
-
Page 6: Safety Devices
The switch keyboard The machine is controlled next to the foot pedal via the following keypad: • Switches On or Off of the axis, which rolls up the protective liner. • Starts or stops the laminating process. • Turns the laminator on or off Safety devices The machine is equipped with the following safety devices: •... - Page 7 Operation of the machine EASYLAM EXPERT 80C is supplied as a table-top unit without stand. In the start-up phase the operator stands in front of the machine. The machine is switched on via the main switch. With the start/stop switch starts the laminating process.
- Page 8 EASYLAM-CUTTER This knife is included with your device. Special knive for the optimal equipment of our laminator with laminating films. There are different ways to equip our laminators with laminate. For easy and economical handling we recommend our EASYLAM-CUTTER. Item no.: 24959 This knife has a special blade.
- Page 9 Behind the rollers of the laminator Position the blade of the should protrude approx 5 cm EASYLAM-CUTTERs between film and liner Also use the blade in front Carefully separate the liner Start laminating Fasten the liner to the the core to wind up...
- Page 10 Working method I: protect a print with laminate 1. Open the laminating rollers with the lever on the right side (lever backwards) 2. Place the laminate with the axis in the axis holder no. 09. (see page 3) as described on page 5. 3.
- Page 11 Working method II: laminating weeded vinyl plot with APP film 1. Place the material axis with the APP film in the axis holder no. 11 (see page 3). The APP roll lies on the top laminating roller. 2. Open the laminating rollers with the lever on the right side (lever to the rear). 3.
-
Page 12: Ce Declaration Of Conformity
CSN EN 60204-1 ed.2:2007, CSN EN 61000-6-1 ed.2:2007, CSN EN 61000-6-3 ed.2:2007, CSN EN ISO 12100:2011, CSN EN 953+Al:2009, CSN EN ISO 11202:2010, CSN EN ISO3746:2011. DATAPLOT GmbH • Gutenbergstraße 15 • D–24558 Henstedt–Ulzburg • Germany Tel. +49 41 93 995 0 • Fax +49 41 93 995 220...
