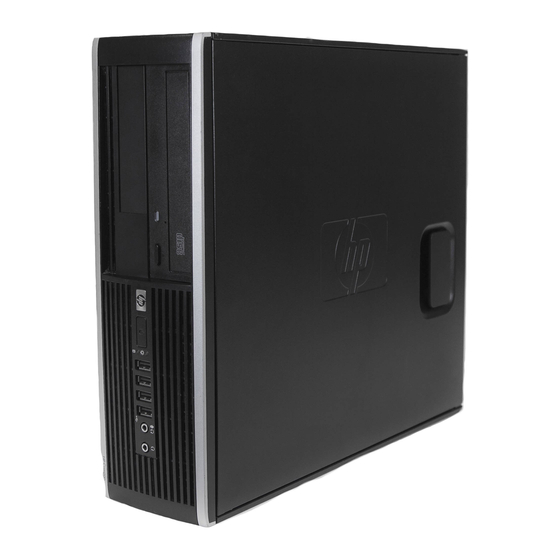

HP Compaq Elite 8100 CMT Specification

Small form factor business pc.
Hide thumbs

Advertisement

QuickSpecs

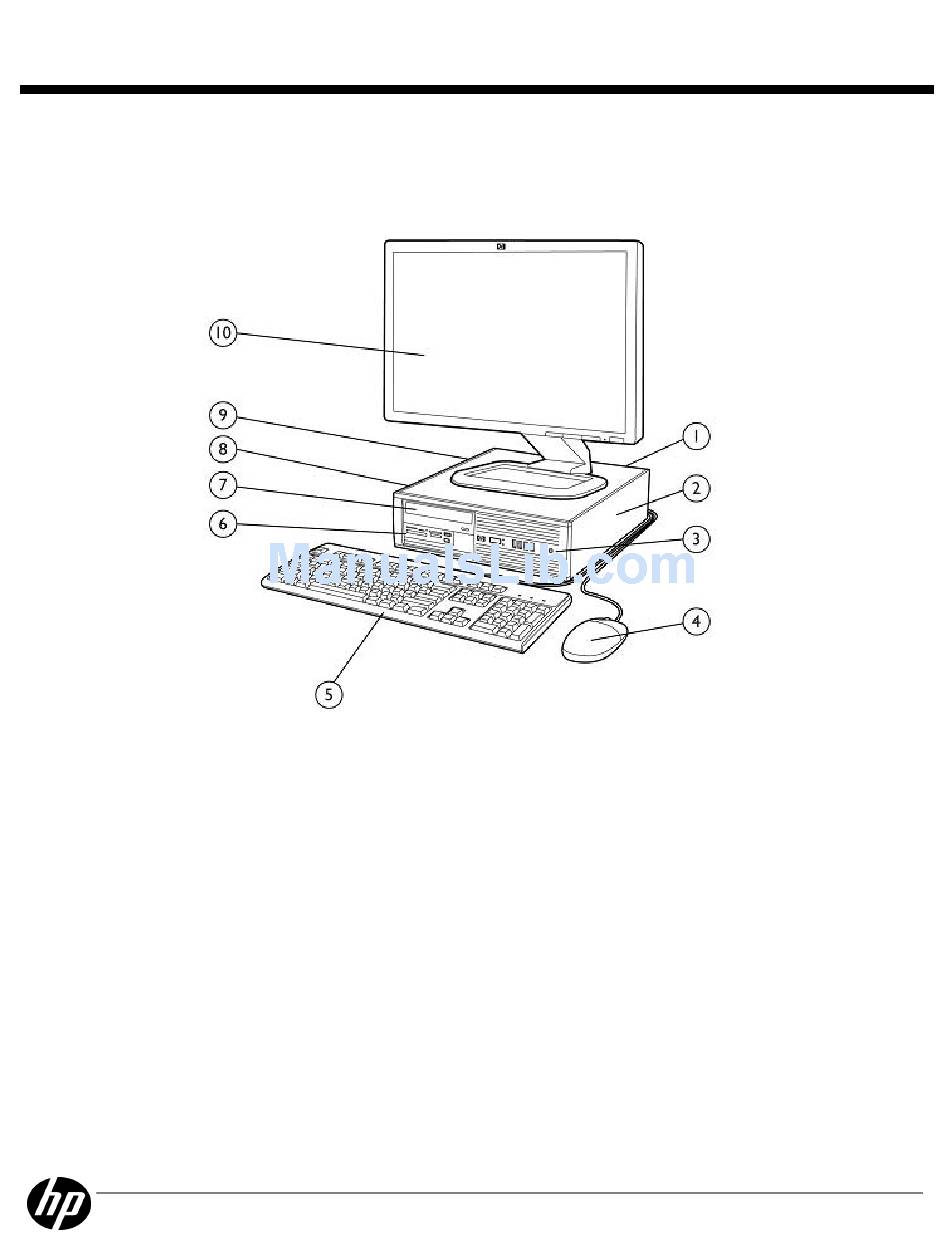

Overview
1
Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort
and VGA video interfaces, and audio in/out jacks
2
Low profile expansion slots include (1) PCI slot, (1) PCI Express x1 slots and (2) PCI Express x16 graphics slot
3
Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack
4
HP Optical Mouse
5
HP Keyboard
6
3.5" external drive bay supporting a media card reader or a secondary hard disk drive
7
5.25" external drive bay supporting an optical disk drive
8
3.5" internal drive bay supporting primary hard disk drive
9
240W standard or 89% high efficiency Power Supply
10
HP Monitor (sold separately)
HP Compaq 8100 Elite Small Form Factor Business PC
HP Compaq 8100 Elite Small Form Factor Business PC
HP Compaq 8100 Elite Small Form Factor Business PC
HP Compaq 8100 Elite Small Form Factor Business PC
DA - 13524
North America — Version 20 — January 18, 2011
HP Compaq 8100 Elite Series
HP Compaq 8100 Elite Series
HP Compaq 8100 Elite Series
HP Compaq 8100 Elite Series
Page 1

Advertisement

Table of Contents

   Also See for HP Compaq Elite 8100 CMT

   Related Manuals for HP Compaq Elite 8100 CMT

   Summary of Contents for HP Compaq Elite 8100 CMT

  • Page 1 QuickSpecs Overview HP Compaq 8100 Elite Small Form Factor Business PC HP Compaq 8100 Elite Small Form Factor Business PC HP Compaq 8100 Elite Small Form Factor Business PC HP Compaq 8100 Elite Small Form Factor Business PC Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort...
  • Page 2 HP Compaq 8100 Elite Convertible Minitower Business PC HP Compaq 8100 Elite Convertible Minitower Business PC (3) 5.25” external drive bays supporting optical disk drives, removable hard disk drives, or the HP Media Card Reader 320W standard or 89% high efficiency Power Supply Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort...
  • Page 3 (http://h10019.www1.hp.com/business-site/index.html) Tailored HP Factory Express deployment and lifecycle services available (http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx) Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions and exclusions apply) Tool-less serviceability features for easier upgrades and repairs DA - 13524 North America —...
  • Page 4 Trusted Platform Module (TPM) 1.2 Security Chip Intel Pro 1000 CT GbE NIC Broadcom NetXtreme GbE Ethernet Plus NIC HP 802.11b/g/n wireless NIC (SFF and MT) Intel WiFi Link 5100 a/b/g/n wireless NIC (USDT) LSI 56K Int'l SoftModem HP USB Smartcard keyboard...
  • Page 5 Terms and conditions may vary by country. Certain restrictions and exclusions apply. On-site services may be provided pursuant to a service contract between HP and an authorized HP third party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.
  • Page 6 4 cores/4 threads Requires a discrete graphics solution DA - 13524 North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 7 Include a preinstalled operating system that is mirrored mode out of the box. Please refer to the HP White Paper titled "Advanced Host Controller Interface (AHCI) and Redundant Array of Independent Disks (RAID) on HP Compaq 8000 Elite Series PCs" at: DA - 13524 http://www.hp.com...
  • Page 8 Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This chart does not represent all possible memory configurations. The HP Compaq 8100 Elite Series PCsupports non-ECC DDR3 PC3-10600 (1333 MHz) and PC3- 8500 (1066 MHz) memory.
  • Page 9 Small Form Factor Small Form Factor Small Form Factor North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Convertible Minitower...
  • Page 10 Media Card Reader (22-in-1) with 1394 port DA - 13524 1,2,3 North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 11 Intel 82567LM GbE Network Connection (integrated) Intel Gigabit CT Desktop NIC Card Broadcom NetXtreme GbE Ethernet Plus NIC (PCIe x1) HP 802.11 b/g/n Wireless PCIe x1 Card Note: The integrated network connection is required to support the vPro Technology features.
  • Page 12 QuickSpecs Standard Features and Configurable Components (availability may vary by country) HP DisplayPort to DVI-D Adapter HP DisplayPort to VGA Adapter HP DisplayPort to HDMI Adapter HP DisplayPort Cable * When ordered with an Nvidia Quadro NVS 295 card, the PC is shipped with two DisplayPort to VGA Adapters. When an Nvidia Quadro NVS 295 card is purchased as an after-market option, it comes with two DisplayPort to DVI-D Adapters.
  • Page 13 PC Tower Stand Configure CMT in desktop orientation DA - 13524 North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 14 HP 64-GB Solid State Drive HP 80-GB Solid State Drive HP eSATA Adapter HP Removable SATA Hard Drive Enclosure (frame & carrier) HP Removable SATA Hard Drive Enclosure (Carrier Only) DA - 13524 North America — Version 20 — January 18, 2011...
  • Page 15 HP USB SmartCard Keyboard HP USB Keyboard and Mouse Kit HP USB Washable Keyboard HP USB and PS/2 Washable Mouse HP USB and PS/2 Washable Keyboard and Mouse Kit HP PS/2 Optical Scroll Mouse HP USB Optical Scroll Mouse HP USB Laser Mouse HP USB Travel Mouse HP 2.4GHz Wireless Keyboard and Mouse...
  • Page 16 HP Client Automation Software HP Client Automation Software HP Client Automation Software HP Client Automation – Standard Edition (single seat) HP Client Automation – Standard Edition (10 seats) HP Client Automation – Standard Edition (100 seats) HP Client Automation – Standard Edition (500 seats) HP Client Automation –...
  • Page 17 North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 18: Technical Specifications

    Non-operating: 5% to 95% (non-condensing at ambient) Operating: 10,000 ft (3048 m) Non-operating: 30,000 ft (9144 m) North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 19 PXE, remote configuration, remote control, and F10 Setup support for 12 languages. Select models feature either Intel Standard Manageability or Core 2 processor with vPro Technology. Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and advanced change notification.
  • Page 20 BIOS settings using F10 setup or under the OS. Advanced Configuration and Power Interface (ACPI) – Represents a significant innovation in power and configuration management, allowing operating systems and applications to manage power based on activity and usage. HP Elite models use ACPI to provide power conservation features.
  • Page 21 VMs from accessing each other's memory. Computrace agent support standard Product can be oriented as either a desktop or a tower Implementation of the industry standard ATA Security feature set. When enabled, it prevents software access to user data on the drive until one or two user-defined passwords are provided.
  • Page 22 Detects errors in Read/Write buffers on HDD cache RAM Interface in F10 setup provides confirmation of SMART IV support. North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 23 DA - 13524 North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 24 QuickSpecs Technical Specifications - Audio HP Thin USB Powered Speakers HP Thin USB Powered Speakers HP Thin USB Powered Speakers HP Thin USB Powered Speakers On/Off/Volume Controls On/Off/Volume Controls On/Off/Volume Controls On/Off/Volume Controls Right side of right speaker Power LED...
  • Page 25 Alerting ASF 2.0 support, AMT 3.0 support DA - 13524 North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Page 25...
  • Page 26 Operating temperature 32° to 131°F (0° to 55° C) Operating humidity 131° F (55° C) with 5% to 95% non-condensing humidity North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 27 4.75 x 2.25 x 0.8 in (12.1 x 5.7 x 2.0 cm) Management Management Management Management WOL, PXE, DMI, WFM 2.0 HP Wireless Network Connection 802.11 b/g/n HP Wireless Network Connection 802.11 b/g/n HP Wireless Network Connection 802.11 b/g/n HP Wireless Network Connection 802.11 b/g/n 3.3 x 4.7 in Dimensions...
  • Page 28 13 Mbps (20 MHz EWC) 26 Mbps (20 MHz EWC) 39 Mbps (20 MHz EWC) North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 29 81 Mbps (40 MHz EWC) 108 Mbps (40 MHz EWC) 135 Mbps (40 MHz EWC) North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 30 10% to 90% (non-condensing) Non-operating: 5% to 90% (non-condensing) North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Page 30...
  • Page 31 Intel PROSet for Microsoft Windows XP (required for Cisco Compatible Extensions support) North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 32 PCI Express revision 1.1 specification. WHQL approved; ASPM compliant. DA - 13524 North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 33 Multi-display Support Multi-display Support Multi-display Support on the back plane of the system board and presented as part of the rear I/O set of interfaces. DVI supported via optional HP DisplayPort to DVI-D adapter. Graphics/Video API Graphics/Video API Graphics/Video API Graphics/Video API Microsoft DirectX®...
  • Page 34 2560x1600 Specification Specification Specification Specification North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Digital Connection Digital Connection Digital Connection...
  • Page 35 85Hz on both displays or dual digital displays at 1920x1200 (single-link). Display resolution support Display resolution support Display resolution support Display resolution support NVIEW advanced multi-display desktop and application management seamlessly integrated into Microsoft Windows Color planes Color planes Color planes...
  • Page 36 DA - 13524 Specification Specification Specification Specification North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Description Description Description...
  • Page 37 EMC Emissions EMC Emissions EMC Emissions EMC Emissions North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Maximum Refresh Rate...
  • Page 38 Frame buffer 512 MB DDR3, 64 bit wide EMC Emissions EMC Emissions EMC Emissions EMC Emissions North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Description Description...
  • Page 39 1920x1200 1920x1440 2048x1536 2560x1600 North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Maximum Refresh Rate (Hz) Maximum Refresh Rate (Hz)
  • Page 40 Memory clock 500 MHz Frame buffer 1 GB DDR3, 128 bit wide North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 41 Technology Equipment Canadian Standard ICES-003 is equivalent to CISPR22 Taiwanese Standard BSMI Japanese VCCI Australian C-Tick Korean (MIC) HP DisplayPort to DVI-D Adapter HP DisplayPort to DVI-D Adapter HP DisplayPort to DVI-D Adapter HP DisplayPort to DVI-D Adapter Connectors Connectors Connectors...
  • Page 42 Note: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Using the DisplayPort to VGA Adapter may require an update to the graphics driver installed on your system. To install the most up-to-dat graphics driver go to: www.hp.com.
  • Page 43 Average: Average: Average: Full-Stroke: Full-Stroke: 18 ms Full-Stroke: Full-Stroke: North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Page 43...
  • Page 44 Average: Average: Average: Full-Stroke: Full-Stroke: 21 ms Full-Stroke: Full-Stroke: North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Page 44...
  • Page 45 84° F (29° C) Temperature Temperature (operating) Temperature Temperature North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Page 45...
  • Page 46 Temperature Temperature (operating) Shock: Shock: Shock: Shock: 1,500 G/0.5-ms North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Page 46...
  • Page 47 26 in (66 cm) on carpet, six-drop sequence 42 in (107 cm) on concrete, 16-drop sequence North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 48 10% to 90% (non-condensing at ambient) 20% to 80% (non-condensing at ambient) North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 49 10% to 90% (non-condensing at ambient) 20% to 80% (non-condensing at ambient) North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 50 -20° to 60° C 10% to 90% (non condensing at ambient) North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 51 Minimum 200,000 revolutions UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 52 IEC-61000-4-2 criteria B, Contact discharge: +/- 4kV, Air discharge: +/- 8kV FCC Class B North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 53 Wheel – 1,000,000 times Tilt switch – 500,000 times 1850mm PC99 compliant North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Page 53...
  • Page 54 DVD-R up to 12X BD-ROM up to 6X BD-ROM DL up to 4.8X North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 55 (other than playback) DVD Video DL (other than playback) North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series < 120 ms typical <...
  • Page 56 Media Media Read Read North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Up to 21600 KB/s (16X) Up to 21600 KB/s (16X)
  • Page 57 CD-ROM, CD-R Read CD-RW Read Digital/Analog Audio Playback North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series 100 mV ripple p-p 200 mV ripple p-p <1000 mA (typical)
  • Page 58 Total Drive Power (Standby Mode) 41° to 122° F North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series Up to 6000 KB/s (40X)
  • Page 59 86° F (30° C) 0 to 10,171 ft. (0 to 3,100 meters) North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 60 QuickSpecs Technical Specifications - Removable Storage HP 22-n-1 Media Card Reader plus 1394 Media Card Reader HP 22-n-1 Media Card Reader plus 1394 Media Card Reader HP 22-n-1 Media Card Reader plus 1394 Media Card Reader HP 22-n-1 Media Card Reader plus 1394 Media Card Reader USB 2.0 High-speed interface...
  • Page 61 No power applied Delta °C < 1.0°C/min Delta % R.H. < 1.5% R.H./min North America — Version 20 — January 18, 2011 HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series HP Compaq 8100 Elite Series...
  • Page 62 Additional Information Additional Information 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).
  • Page 63 QuickSpecs Technical Specifications - Environmental Data This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold where HP registers commercial desktop products. See Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.
  • Page 64 This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986). This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold where HP registers commercial desktop products. See Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.
  • Page 65 Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
  • Page 66 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
