Summary of Contents for Arsimed Medical BT 12 - S

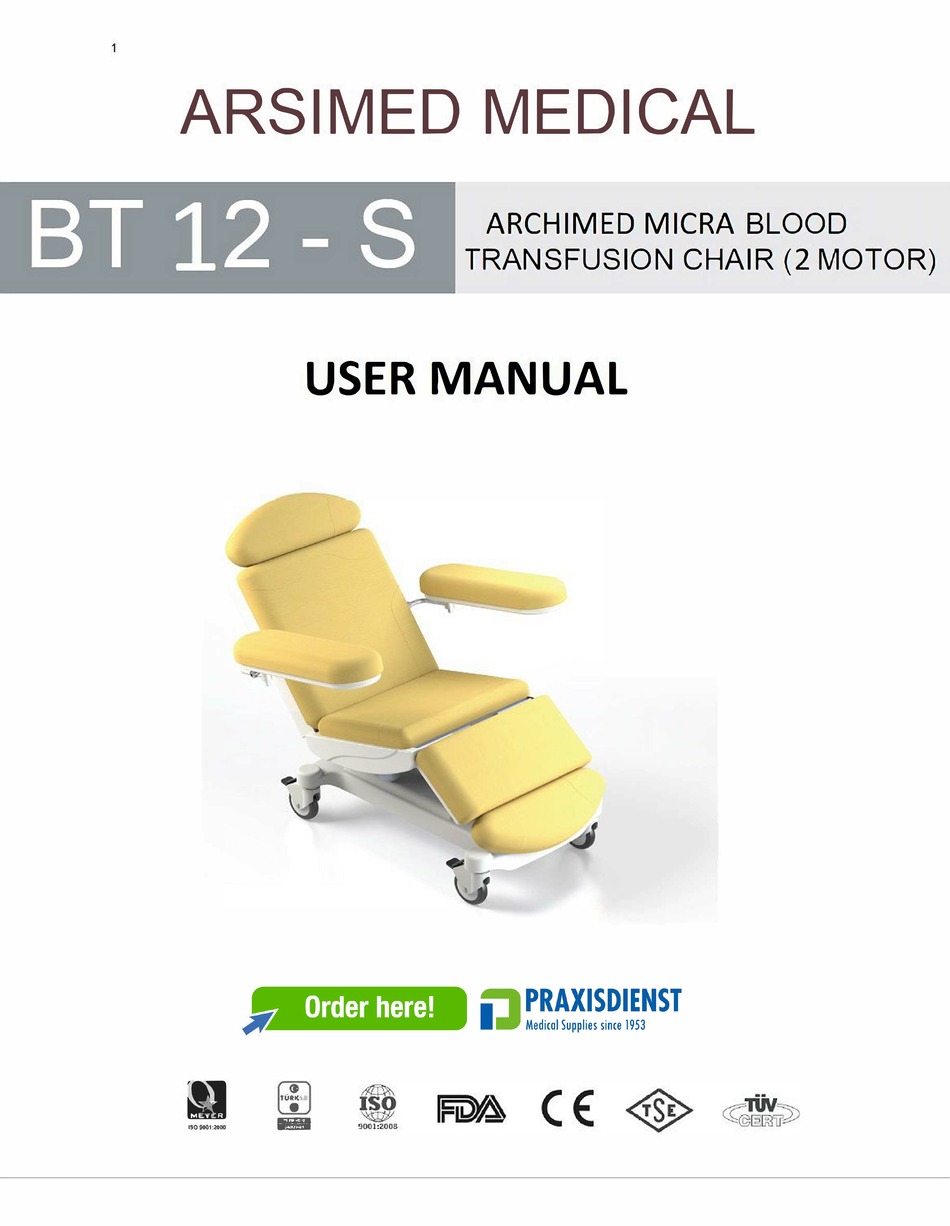

- Page 1 ARSIMED MEDICAL ARCHIMED MICRA BLOOD TRANSFUSION CHAIR (2 MOTOR) USER MANUAL 11 . . • TÜ�)l.t • llillI!Z _ 1509001�:MOO lliEmmll...
- Page 2 PRODUCT INFORMATION THAT YOU NEED TO PROVIDE FOR SERVICING DATE OF PURCHASE SERIAL NUMBER MODEL NUMBER NAME OF OWNER / FACILITY / DEPATMENT lf the table was purchased from an authorized Arsimed Medical dealer, please fill out the section below. DEALER'S NAME DEALER'S PHONE NUMBER DEALER'S ADDRESS...
-
Page 3: Table Of Contents
CHAPTER 1 INTRODUCTIO Typographical Conve.ntions ........................5 Operating Precautions ..........................6 Features ..............................6 Technical Specifications ..........................7 Electrical Description ..........................8. Product Symbol Definitions ......................... 9 table Components ............................10 Operating lnstructions For OT03-S GYNAECOLOGY T ABLE ..............11 Using The Handset ............................. -
Page 4: N Typographical Conve.ntions
CHAPTER 1 INTRODUCTION Purpose Please read the instructions before using the table. This booklet includes necessary information for the use and operation of the Archimed M icra Blood Donation Chai r 2 Motors . Please make this booklet available to the operators who will operate the table and inform any risks that may be encountered while operating the table. -
Page 5: Electrical Description
ELECTRICAL DESCRIPTION Mains Power Requirements Condition Range Rated voltage 110 V - 230 V Power/input 6A/2A Frequency 50 Hz - 60 Hz electrical power system is insulated from the metal parts of the table. No additional electrical components, such as isolation transformers, are required to make this table meets applicable electrical codes. -
Page 6: Product Symbol Definitions
PRODUCT SYMBOL DEFINITIONS Product Symbol Definitions Symbol Description Type B applied part according to EN 60601-1. IPX4 IEC Standard publication 529 CAUTION: Consult accompanying documents. Conforms to the European Medical Device Directive 93/42/ Alternative Current Direct Current ••rw• l� :ti g Safe working load Protective Earthing Ground �... - Page 7 TABLE COMPONENTS HEAD PART 2) BACK PART � 3) SITTING PART 4 ) LEG SUPPORT 5) FOOT EXTEND 6) HAND SUPPORT 7 ) ACTUATOR 8) ABS · CASTOR...
- Page 8 OPERATION 1. Step Connect the power cable to in 100V-240V 50Hz/60Hz to turn on the table. Make sure that power cable is connected into a compatible power source. 2. Step Make sure that the little green light on the handset is on. lf they are not on, please check the whether there is power.
-
Page 9: Using The Handset
USING THE HANDSET Backrest DOWN Backrest -� EQUIPMENT ALERT The Back function will automatically stop moving FOOT UP FOOT DOWN when either the Up or Down travel limit is reached, but the actuator motor will continue to run. Do not continue to operate a function that has reached limit;... -
Page 10: Entry Position
ENTRY POSITION ENTRY POSITION... -
Page 11: Back Section Positioning
To adjust the back section from a horizontal position to a table position, depress and hold the Back Up button To adjust the back section from a table position to a horizontal position, depress and hold the Back Down BACK SECTION POSITIONING °... - Page 12 LEG SECTION POSITIONING ° The back section can be positioned at any angle between horizontal and +85 To adjust the leg section from a horizontal position to a chair position, depress and hold the Back Up button (1) until the leg section reaches the desired angle or the chair position is achieved. To adjust the leg section from a chair position to a horizontal position, depress and hold the Back Down button (2) until the leg section reaches the desired angle or the horizontal...
-
Page 13: Arm Rest
ASSEMBLING OF ARM REST... - Page 14 C R A M P P A R T A D J U S T M E N T...
-
Page 15: Chapter3
CHAPTER 3 CLEANING AND GENERAL MAINTENANCE Cleaning and general maintenance procedures defined in this manual should be complied. Do not expose the table to so much moist that liquid may accumulate. Otherwise, injuries to the people or damages to the equipment may ocur. Operating lnstructions •... -
Page 16: What To Do In Case Of A Power Cut
CHAPTER 4 WHAT TO DO IN CASE OF A POWER CUT For the tables With Batteries: Never open a discharged battery, dispose of a discharged battery in fire or have it contacted with water. A new battery should be installed only by an authorized person technical staff. -
Page 17: Unpacking And Moving The
CHAPTER 5 UNPACKING AND MOVING THE TABLE UNPACKING THE TABLE Carefully remove the packing from the table and inspect the table and upholstery for any shipment related damage. lf you detect any damage, contact us immediately. Please refer to page to for our contact details. - Page 18 PATIENT POSITIONING o safely patient positioning ,ensure the patient sit in the seat section Do not sit eg or head section . lt is not safely for patient and for the chair, miror injuries or chair demage will be appear.
- Page 19 Arsimed Medical. EXCLUSIVE REMEDY Arsimed Medical's only obligation under this warranty is the repair or replacement of defective parts. Arsimed Medical shall not be liable for any direct, special,...
