GreenWorks GPW1804CK Quick Start Manual

■ Connect the uberflex hose to the
pressure washer gun assembly by turning
the fitting clockwise. Ensure the fitting is fully
tightened to the pressure washer gun.
■ Insert the male end (A) of the wand
into the female bayonet outlet (B)
firmly.
■ While pushing in the wand firmly, turn
clockwise until tabs lock into place to
ensure a leak-free connection.
■ Pull back the quick-connect collar
■ Push the spray tip into place
■ Push the collar forward
Missing parts, accessories or need a service center?
Do Not Return to Store
Call : 1-888-909-6757
www.GreenWorksTools.com
This Quick Start Guide is not a substitute for reading the operator's manual. To reduce the risk
WARNING:
of injury or death, user must read and understand operator's manual before using this product.

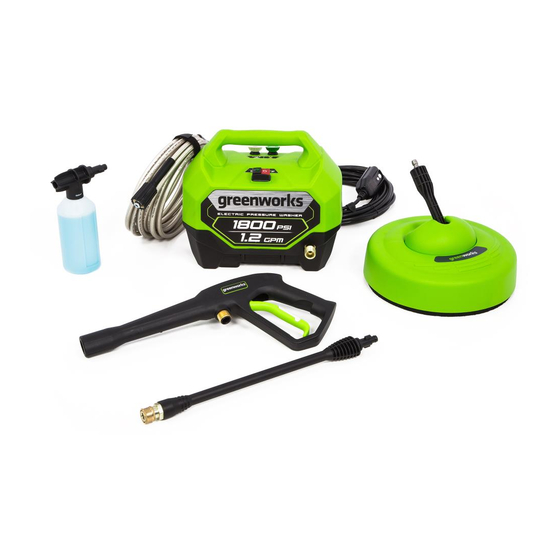

1800 PSI / 1.1 GPM
ELECTRIC PRESSURE WASHER
GPW1804CK
INSTALLING DETERGENT BOTTLE
■ Unscrew the bottle from the assembly and fill with pressure
washer detergents/soaps only.
■ Insert the male end of the bottle into the female outlet on the
trigger handle.
■ While pushing in the bottle firmly, turn clockwise until tabs lock
into place to ensure a leak-free connection.
SPRAY TIP
White - Wide fan tip (40° )
■ The white 40 degree tip, referred to as the "fan" tip creates the widest
area of cleaning with relatively low pressure. This pressure washer tip is
best used for light or delicate cleaning applications. It is recommended
40 O
for light cleaning on wood decks and other soft or delicate surfaces.
Turbo Nozzle Tip
■ This nozzle rotates in a zero to 15 degree circular motion spray pattern
to break down tough dirt and grime. The spray pattern can cover area of
4 to 8 inches wide, depending on the distance between the tip and the
TURBO surface being cleaned.
APPLICATION
Set-up
1
Connect garden hose to pressure
washer water intake.
2
Assemble pressure washer gun to spray
wand.
3
Insert the uberflex hose into trigger
handle.
4
Insert the uberflex hose into the pressure
washer.
5
Turn on water at outlet.
6
Run water hose for 30 seconds with the
motor in OFF position. This helps drain air
from the tank and lines.
30S
7 7
Connect power cord to wall outlet
Extension cord not recommended.
8
Turn on Pressure Washer
IMPORTANT: Ensure water outlet is On
before turning power On to avoid damage
to the pump.
NOTE:
AUTO ON/OFF SWITCH: This Pressure washer is equipped
with an Auto Start/Stop feature.
To operate: Turn the power switch to the On (I) position. Pump will
pressurize and shut down immediately.
Once the trigger of the gun is depressed the unit will turn on.
Unit will shut off and be in standby mode when trigger is released.
