Summary of Contents for Kellfri 13-KW340

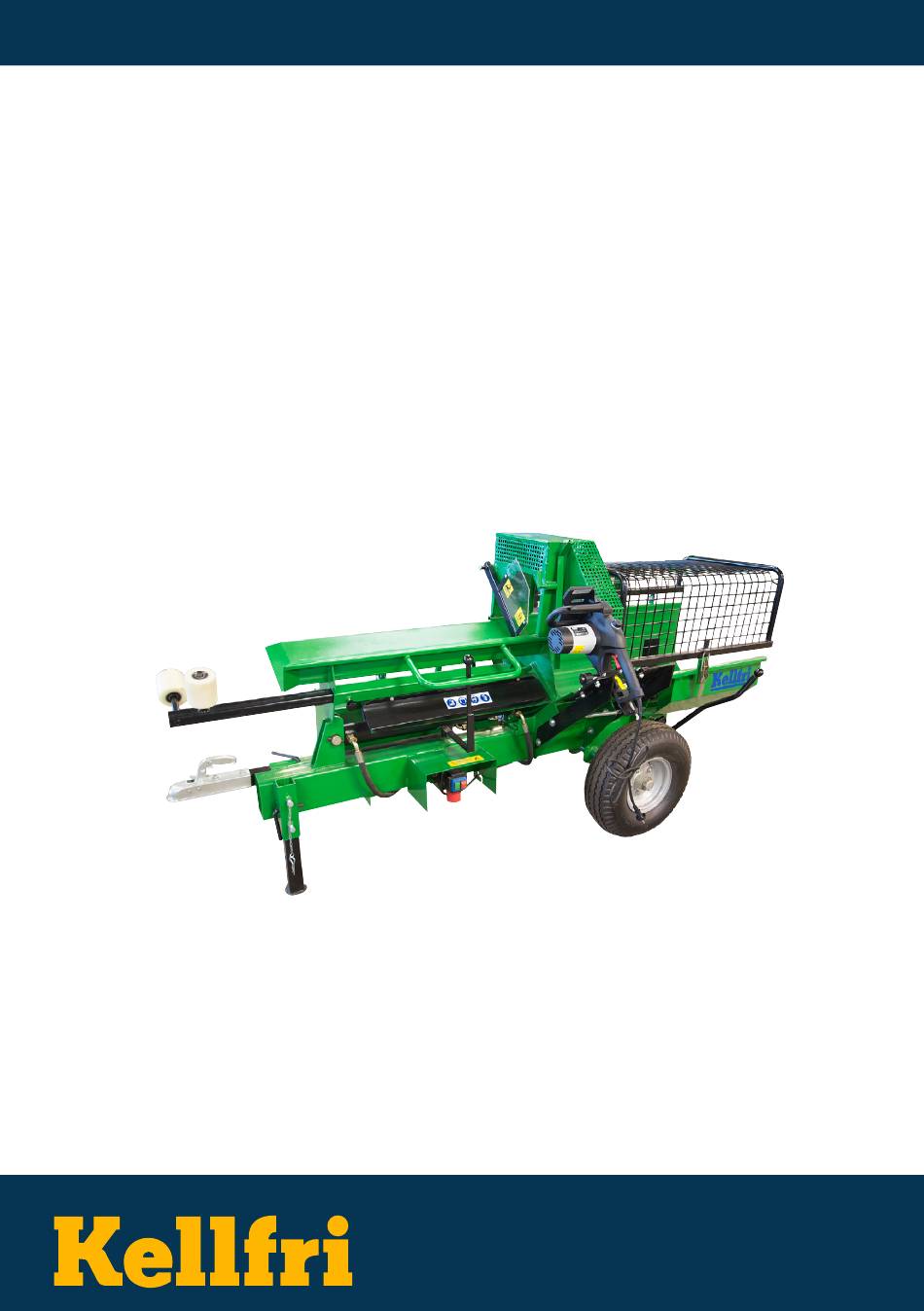

- Page 1 13-KW340 LOG CUTTER AND SPLITTER ELECTRIC-POWERED Read this manual carefully before using the product! Translated from the original...
- Page 2 Operating the machine Phase inverter Cutting and splitting of wood Transport and storing Maintenance and service Service Recycling 13-KW340 spare parts Spare part - chainsaw Installation instructions How to mount the chainsaw on themachine Electrical diagram Complaint form EC-declaration of conformity, original...
-
Page 3: Product Information
Kellfri AB is constantly working to further develop its products, and therefore reserves the right to make changes to, among other things, design and appearance without prior notice. -
Page 4: Safety Information
Your retailer The general safety instruction is also available from Kellfris website: www.kellfri.co.uk Do not use this equipment if you are feeling sick, tired or in influence of alcohol. Nor if you are under the influence of strong medications or drugs, suffering from strong depression or severe mental illness. -
Page 5: Safety Warnings
SAFETY WARNINGS * Read the manual carefully before using the machine. * The machine should only connect on 3-phase 400V grounded outlet. The outlet shall be installed by a qualified electrician. * For your own and others safety, make sure that circuit breaker is installed. * Keep working area free from other people. -
Page 6: Warning Labels
SURROUNDINGS Make sure your working area is clear from people, children and objects before attaching, con- necting and using the machine. Risk of serious injuries can occur during operation. Take an extra caution when children are in the area where the equipment/ product is being use or stored. - Page 7 ELECTRIC CHAINSAW 1. Start / Stop Switch 2. Immobilizer TECHNICAL INFORMATION 13-KW109 3. Hand guard Max power 2,2 kW/3 hp 4. Chain 5. Guide bar Cutting length 16 "(mm) 6. Oil tank cap Oil, Volume (ml) Blade size (in) 16" Chain pitch (in) 3/8”...
-
Page 8: Product Safety Information
PRODUCT SAFETY INFORMATION • Before using the product for the first time, you should know how it works. If it is possible , learn the proper use of the machine from a person with experience. • Do not use in conditions such as; rainfall, thunderstorms and strong winds, or when the weather conditions make it unsafe to use this product. -
Page 9: Before Operating
BEFORE OPERATING • Check the working area, the object to be cut and the cutting direction. • Before you begin cutting, make sure that the working area is cleared. • Take care and keep bystanders and animals away from the area within 5m in diameter. •... -
Page 10: Starting The Engine
Before using the machine you must read the sections entitled “SAFETY” and “PRODUCT IN- FORMATION”. We recommend that you start by practicing sawing smaller logs. This also helps you to learn the proper use of the chainsaw. Always follow the safety rules. The chainsaw must only be used to cut wood. It is forbidden to cut any other types of materials. -
Page 11: Stopping The Engine
STOPPING THE ENGINE Release the throttle Ventilation Always test the chain saw before performing any operation, check that the chain saw stops as soon as you release the throttle handle. Do not use chain saw if this does not occur. The chain saw must not be used until the fault is corrected. - Page 12 SAFETY MEASURES BEFORE OPERATING Read the safety information and instruction manual carefully. Be sure you understand the safety measures, instruction manual and warning labels. Use common sense when operating the machine and use appropriate personal protective equipment. Always check the performance and the machine combination that are used. It’s highly important these matches in a satisfactory manner.
-
Page 13: Operating The Machine
OPERATING THE MACHINE Only people who understand the safety information and instructions in this manual may op- erate the equipment. Be alert and careful when working with the machine and only use the tool or product in the manner described in this manual. When working with equipment that has moving parts, there is always the risk of injury. - Page 14 CUTTING AND SPLITTING OF WOOD • Make sure no one has hands or arms near moving parts of the machine • Walk around and look at the machine to familiarize yourself with its features before start- ing. • Press the start button and wait a few minutes until the oil has reached the operating tem- perature.
-
Page 15: Transport And Storing
Never let children play where the machine is being stored. Always keep in mind the risk of tipping! Kellfri disclaim any responsibility for self-made modifications, alterations or conversions of the product. ALWAYS REMEMBER! •... -
Page 16: Troubleshooting
SERVICE INTERVAL ACTION Exchange after 10 h Oil Change Thereafter every 50 h • Use hydraulic oil ISO 32 or 46 or once a year • Draining the tank is done by removing the drain-plug under the tank. • Fill through the filler plug on top. Bolts and nuts Check regularly, preferably before Check and retighten all bolts and nuts... - Page 17 13-KW340 SPAREPARTS SPECIFICATION SPECIFICATION Guide roller, nylon 80/16 x95mm Lid for refill and venting Supporting arm Adapter-motor pump Cylinder 60/37 stroke 630 Electric motor Y2 112M-4-4kW S1 1430 rpm 380V Pin 35 x95mm Hub cap Pin 16 x100mm - drawbar Wheel 600-9 6 bearings Ball coupling 50 mm...
- Page 18 21 22 POS.NO. SPECIFICATION Hydraulic valve Valve house 90o Hydraulic tube ½L=370mm- 90o 90o coupling : RETURN pump-tank Hydraulic tube ½ L=1050 mm 90ocoupling: Pressure,cylinder- control valve Hydraulic pump Hydraulic tube ½ L=1000 mm Hydrualic tube ½ L=450 mm Hydraulic tube ½L=350 straight 90o coupling Table of contents...
-
Page 19: Spare Parts
SPARE PARTS PRODUCT.NO. 1. Ball coupling R13-KW340.005 2. Wheel, 600 - 9 6 PR R13-KW340.013 3. Adjuster arm for the knife R13-KW340.033 4. Electrical chainsaw R13-KW340.027 5. Guide roller, nylon R13-KW340.001 6. Attachment for guide rollers R13-KW340.002 7. Motor guard R13-KW340.029 8. -
Page 20: Installation Instructions
INSTALLATION INSTRUCTIONS The chainsaw is delivered separately (not fitted to the machine) A mounting plate and bracket that locks the chainsaw holder in place is delivered together with the chainsaw. Make sure that the bracket is mounted on the chain saw, (marked in the picture) if the bracket is not mounted see the instruction below: Install the bracket on the chainsaw... - Page 21 MOUNT THE CHAINSAW ON THE MACHINE 1. Hook the tag into the hole. 2. Secure the handle with mounting plate. Thighten all screws 3. Mount the lock bolt and tighten it. Check that the chainsaw is mounted properly and can- not come loose.
-
Page 22: Electrical Diagram
ELECTRICAL DIAGRAM 230 V Motor Table of contents... -
Page 23: Complaint Form
COMPLAINT FORM We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine. -
Page 24: Ec Declaration Of Conformity (Original)
You are always welcome to give your feedbacks, reviews or ask us about our equipment and products. Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
