Summary of Contents for Grillfest MS-P005-402

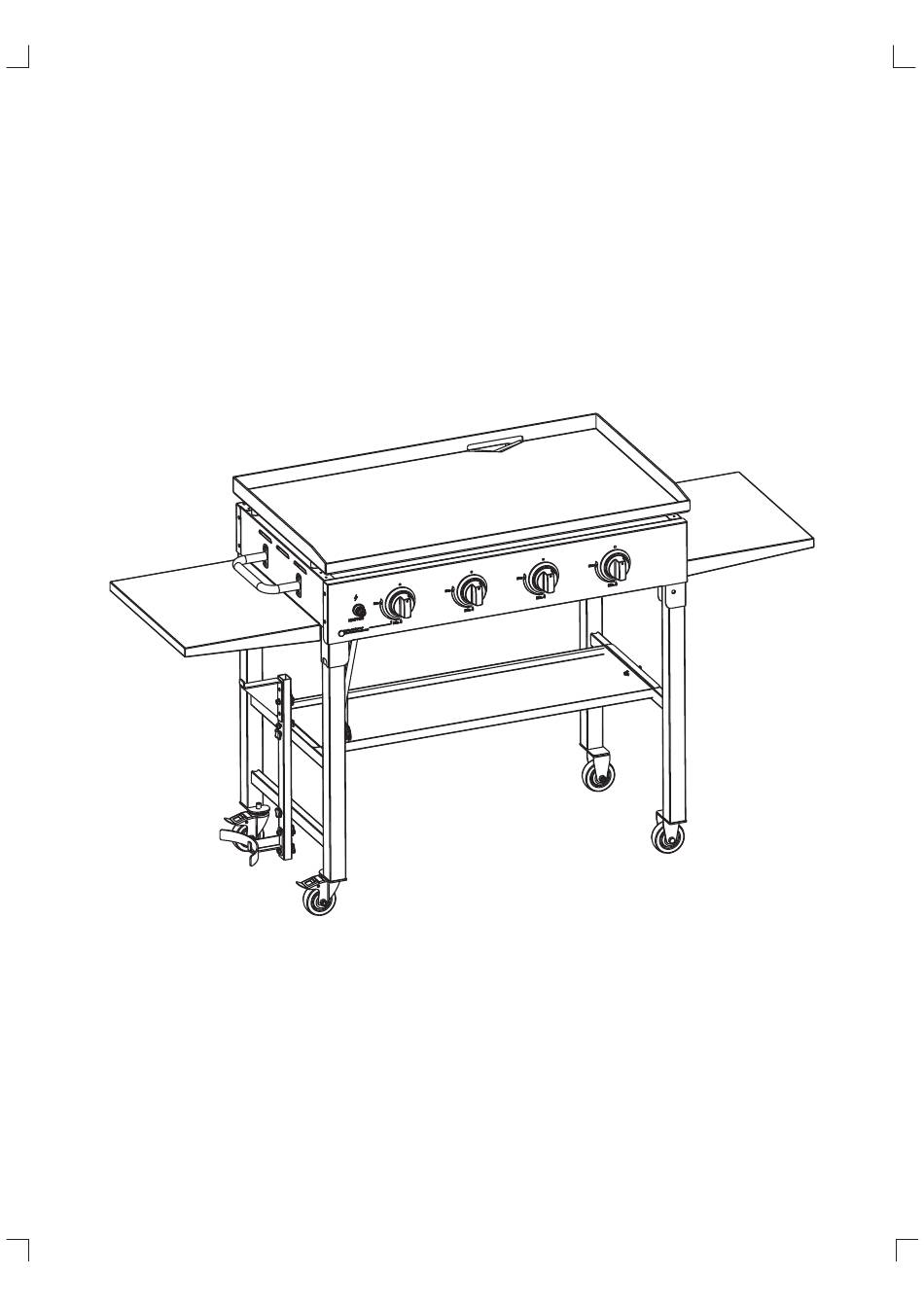

- Page 1 OWNER'SMANUAL 4 BURNER GAS GRIDDLE Model:MS-P005-402...
- Page 2 DANGER DANGER If you smell gas: 1. Do not store or use gasoline or other flammable 1. Shut off gas to the appliance. liquids or vapors in the vicinity of this or any 2. Extinguish any open flame. other appliance. 3.
- Page 3 •This griddle is safety certified for use in the DANGER United States and/or Canada only Do not modify for use in any other location. If you smell gas: Modification will result in a safety hazard. 1. Shut off gas to the appliance. Safety Symbols 2.
- Page 4 TABLE OF CONTENTS FOR YOUR SAFETY....... 1-2 USE AND CARE........4-9 ILLUSTRATED PARTS LIST....10-11 HARDWARE.......... 11 ASSEMBLY..........12-15 CARE AND MAINTENANCE..... 16 GRIDDLE CARE & SEASONING....17-18...
- Page 5 CAN/CSA-B339, tanks, spheres and tubes for DANGER Transportation of dangerous goods. Transport Canada (TC). See LP Tank collar for marking. •NEVER store a spare LP cylinder under or near • LP Tank valve must have: the appliance or in an enclosed area. •...
- Page 6 LP Tank Exchange Connecting Regulator To The LP Tank • Many retailers that sell grills offer you the option of replacing your empty LP tank through an exchange 1. LP tank must be properly secured onto griddle. service. Use only those reputable exchange (Refer to assembly section.) companies that inspect, precision fill, test and certify 2.
- Page 7 Leak Testing Valves, Hose and Regulator 1. Turn all griddle control knobs to OFF. 2. Be sure regulator is tightly connected to LP tank. 3. Completely open LP tank valve by turning OPD hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately.
- Page 8 Safety Tips 1. Before opening LP cylinder valve, check the coupling nut for tightness. 2. When griddle is not in use, tum off all control knobs and LP cylinder valve. 3. Never move griddle while in operation or still hot. 4.
- Page 9 General Griddle Cleaning • Do not mistake brown or black accumulation WARNING of grease and smoke for paint. Interiors of gas Turn controls and gas source or tank OFF grills are not painted at the factory (and should when not in use. never be painted).
- Page 10 Storing Your Griddle Food Safety • Clean cooking grates. Food safety is a very important part of enjoying • Store in dry location the outdoor cooking experience. To keep food safe • When an LP cylinder is connected to griddle, from harmful bacteria, follow these four store outdoors in a well-ventilated space and basic steps:...
- Page 11 ILLUSTRATED PARTS LIST 2. Griddle Top ………………………1pc 1. Body………………………………1pc 4. Bottom Tray ………………………1pc 3. Side Shelf…………………………2 pcs 5. SideHandle……………………1 pc 6. Oil Cup………………………………1 pc 7. Upper Hanger………………………1 pc 8. Upper HangerMounting Bracket ………………1 pc...
- Page 12 ILLUSTRATED PARTS LIST 10. Small Knob …………………… 8 pcs 9. Lower Fastener……………………1 pc 12. Large Knob ………………………2 pcs 11. Middle knob……………………5 pcs 13. M6×12Screw…………………4 pcs 14. M6 Flange NUT………………… 9 pcs Toolsneededforassembly Items not included • Phillip screwdriver • Crescent wrench •...
- Page 13 WARNING: The manufacture has made every effort to eliminate any sharp edges. However, you should handle all components with care to avoid accidental injury. Tools required: The only tool needed is a Philips Screwdriver needed for minimal assembly on the cover and main body handles. ASSEMBLY: Please read all instructions thoroughly before proceeding.
- Page 14 Step 2: Insert Side Shelves and secure with Small Knobs. Small Knob Side Shelf Step 3: Connect the Side Handle using the M6x12 Screw with M6 Flange Nut. M6 Flange Nut SideHandle M6x12 Screw...
- Page 15 Step 4: With help, place the iron Griddle Top on the top of the fire box. Peg legs on the bottom of the Griddle will line up with docking holes in the top of the appliance body. Griddle Top Step 5: Hang the Oil Cup on the side of the Griddle, just under the drip hole.
- Page 16 Step 6: Install the cylinder Upper Hanger and Lower Fastener on the left leg assembly. See below. Middle knob Upper Hanger M6 Flange Lower Fastener Step 7: Hang up the LP Gas Cylinder.
- Page 17 CARE AND MAINTENANCE Regularly clean your grill between uses and especially after extended periods of storage. Ensure that the grill and its components are sufficiently cool before cleaning. • Never handle hot parts with unprotected hands. • In order to extend and maintain the life and condition of your grill, we strongly recommend that the unit be covered when left outside for any length of time, especially during the winter months.
- Page 18 GRIDDLE CARE SEASONING GUIDE Griddle Care Seasoning Follow these simple cleaning and seasoning steps for optimal performance and long life of your Griddle. We strongly recommend that the unit be covered when left outside for any length of time, especially during the winter months.
- Page 19 Frequently Asked Questions Q. What if my griddle start to rust? A. If rust appears on the griddle surface, rub it off with steel wool or low grain sandpaper and re-season the surface. Take care to always completely dry your griddle before storing and keep away from rain and sprin-lers.
- Page 20 Limited Warranty Dong Fang Jun Ma Trade Co., Ltd.(hereafter, DFJM) warranties that this Product shall be free from defects in workmanship and materials, for a period of 1 Year from the date of original purchase. Our obligation under this warranty shall be limited to replacement of parts during the warranty period.
