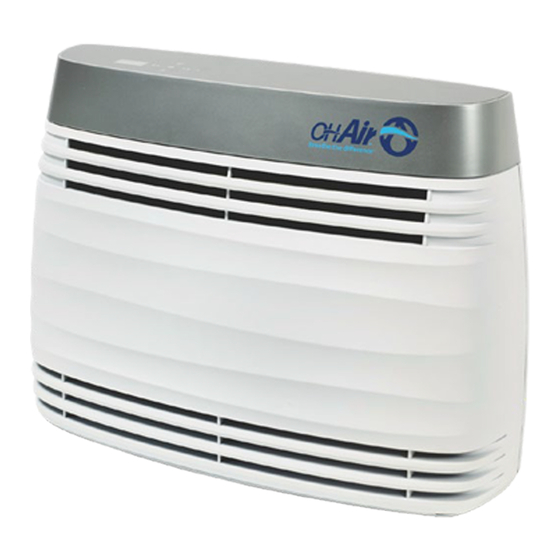

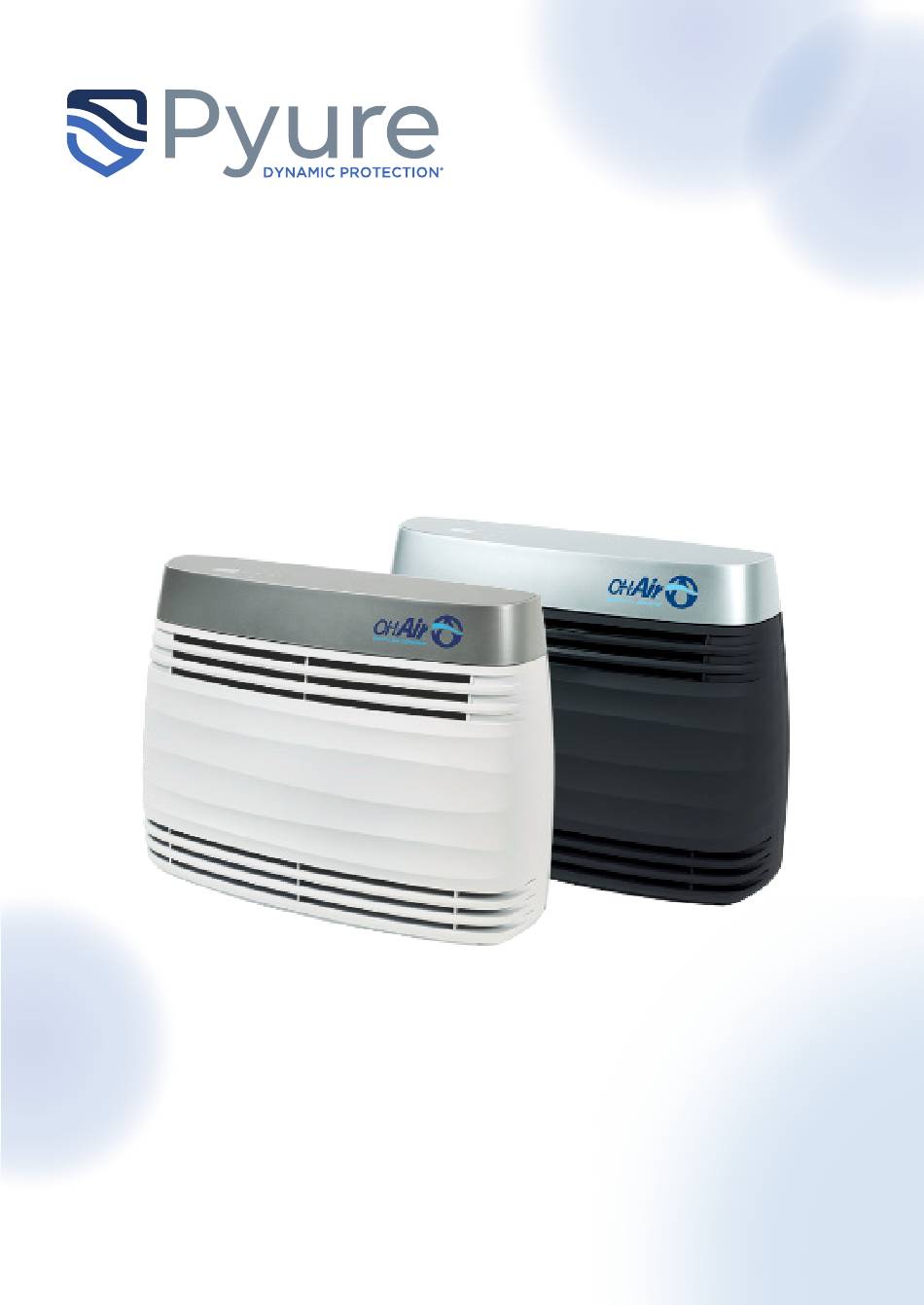

- Page 1 Pyure MySpace™ Air and Surface Protection Inspired by Nature. Trusted to Clean. OH Air® and MySpace™ are trademarks or registered trademarks of The Pyure Company Inc., Boynton Beach, Florida, USA.
-
Page 2: Table Of Contents
Table of Contents Operational Instructions ...................... 1 Getting Started ........................2 Navigating the Menus ......................2 Navigating the WiFi Menus ....................4 Internal Cooling Fan ......................7 Caring for your MySpace™ ....................8 Removing Cover for Cleaning Air Filter and Replacing HGU™ ........8 HGU™... -
Page 3: Operational Instructions
Operational Instructions Your OH Air® MySpace™ is ideal for small to medium spaces such as work areas and conference rooms, waiting rooms, classrooms, homes, and similar spaces. This device is not recommended for use in enclosed spaces with no air exchange. In the event the device is operated in a closed, non-ventilated space, the minimum volume should be 65 m3 (2,340 ft3). -
Page 4: Getting Started
Getting Started When your MySpace™ unit is powered on for the first time, it will let you select your preferred language, use the up and down buttons to select from the list and press the center button to select (an asterisk ‘*’ will be displayed next to the selected option). After the language has been selected, the unit will default to the Power/Fan Speed Screen and remember if it was running when last powered. - Page 5 OH Control: Allows the strength of the Hydroxyls to be adjusted. The level of hydroxyl output is a function of room size. Follow the guidelines in the table below: Hydroxyl Output Level Guidelines Power level Area of Treated Space* (bars showing on OH display) Over 9 m2 or 100 ft2 Power level 1 (1 bar) Over 14 m2 or 150 ft2...
-
Page 6: Navigating The Wifi Menus
Live Data: This displays operational information about the unit and is for general information/support. Station Details: This shows the WiFi connection information. If the center button is pressed on this menu, the WiFi function will be turned on/off. Access Point: This is the WiFi information used to connect and/or configure the unit. If the center button is pressed on this menu, the WiFi Access Point will be turned on/off. - Page 7 WiFi Association shows the current configuration/connection, allows you to select from an available SSID (WiFi router) and set the password to connect and optionally select a specific IP for your network (normally leave it as DHCP). WiFi Access Point Configuration shows the current setup detail and allows you to change the name of the device on your network (SSID) and password.
- Page 8 MQTT is a network protocol that allows for the secure remote control of the device across the internet. Debug Log shows WiFi debugging information for support to assist you if there are connection issues. Page 6...
-
Page 9: Internal Cooling Fan
Upgrade Firmware allows you to update the software in the unit to the latest version. These will be made available from time to time. Internal Cooling Fan The internal cooling fan is automatically controlled by the temperature of the drive circuit. -
Page 10: Caring For Your Myspace
Caring for your MySpace™ CAUTION: Unplug the device from the mains before performing any cleaning activities. DO NOT allow any excess water to enter the device or to come into contact with the internal components. DO NOT use commercial surface cleaners. The exterior surface of your MySpace™... -
Page 11: Hgu™ Cleaning And Replacement
HGU™ Cleaning and Replacement Step 1 - Refer to the previous section ‘Removing Cover for Cleaning and Replacement’ to remove the front cover. Step 2 - To remove the metal cover plate, remove screws “A-D” using PH1 Phillips head screwdriver. Lift up the plate to remove it. - Page 12 HGU™ Cleaning and Replacement Step 7 - Carefully locate water connection “I” into the black socket, then firmly push and manipulate until fully inserted. Step 8 - Re-fit HGU™ screws “F” and ”G” confirming HGU™ is correctly seated. Step 9 - Replace the chamber cover and insert screw “E”. Step 10 - Replace metal cover plate and re-fit screws in the following sequence, loosely first, tighten once all in place: 1.
-
Page 13: Safe Handling And Disposing Of Mercury
Safe Handling and Disposing of Mercury Mercury is used in the HGU™ in order to generate the plasma needed to produce UV-C radiation. This is similar to the use of mercury in many types of commercial, fluorescent light fixtures. As long as the glass or quartz outer bulb is intact, mercury is contained within the fixture and poses no health hazard. - Page 14 • Identify items in the spill area that can be cleaned and those that cannot. Non-porous surfaces (finished wood, plastic or concrete) can be cleaned following this guidance. Porous surfaces or fabric-covered items (upholstery, carpeting, stuffed animals, pillows, backpacks, unfinished wood, cork, cardboard) are difficult to clean because mercury beads may be trapped in these materials.
-
Page 15: Limited Use End-User License Agreement
• Clothes or shoes that did not come in direct contact with liquid mercury should be removed and put into the trash bag that was left outside the contaminated area at the beginning of the cleanup. Close the trash bag and take it outdoors. Carefully remove the shoes and or clothing from the trash bag and air them out thoroughly outdoors for 24 to 48 hours. - Page 16 3. Termination. Your rights under this EULA terminate upon your termination of this EULA, or without prejudice to any other rights, The PYURE Company may terminate this EULA if you fail to comply with its terms and conditions. In such event, you must destroy all copies of the Licensed PYURE Software.
-
Page 17: Warranty Information
WARRANTY Please visit Pyure.com/warranty-registration to register your MySpace™, activate your warranty and order replacement parts. The Pyure Company (“Pyure”) warrants that the product set forth below will be free from defects in materials and workmanship for the period of one (1) years from the date of original purchase under the following terms and conditions: To obtain service under this warranty, send or deliver this product within the warranty period together with the warranty certificate to any Pyure regional office or Pyure authorized warranty service center. -
Page 18: Frequently Asked Questions (Faqs)
Frequently Asked Questions (FAQs) What are hydroxyls? Hydroxyls (HO•) are naturally occurring radicals. They are created in our atmosphere when the sun’s ultraviolet rays react with water vapor in the air. Hydroxyls are an important agent that scrub and cleanse our planet’s environment. OH Air® Hydroxyl Generators replicate this naturally occurring process and bring it indoors. - Page 19 The Pyure Company 2055 High Ridge Road, Boynton Beach, FL 33426 United States of America Website: www.pyure.com Phone: 1 877 735-3701 email: sales@pyure.com...
Need help?
Do you have a question about the Pyure MySpace and is the answer not in the manual?
Questions and answers

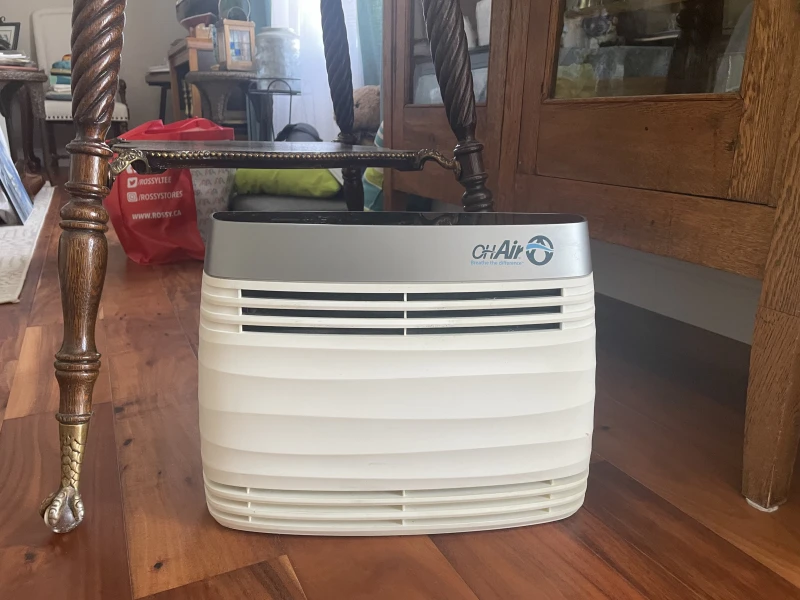

I have the machine as included on this web site. The machine was water damaged with a basement ground water back up and flood. Our Home Insurance will replace the machine. Please send a quote including Taxes and delivery to Ontario Canada. Please advise that you received the above message as time is important to have damaged goods replaces under the insurance policy The mailing address is: 89 Bayshore Drive, Brechin, Ontario, Canada LOK 1BO.
