Classy Caps SBL738 Lighting Instructions

Classy Caps Mfg. Inc.
Kingsville, Ontario, Canada
www.fencecaps.com
Mod. SBL738
Lighting Instructions

How Your Solar Powered Barn Light Works

The solar panel converts sunlight energy into electricity during the day. The
•
photocell automatically turns the light on at night with the electricity stored in the
batteries. It requires no wiring, because it runs off the sunlight energy to recharge
the batteries so there is no cost to run the solar fixture.
• The number of hours the light stays on depends on your geographical location,
weather conditions and seasonal sunlight availability. Allow 24 hours for the fixture to
fully charge. Avoid placing the fixture by other light sources, such as street lights or
porch lights, this may cause the solar light to turn off automatically.
• Easy "Do-It-Yourself" installation.

Includes:

1 – Solar Light Fixture
1 – Mounting Wall Bracket & Hardware

Installation

1) Secure the threaded bolts and nuts to the wall bracket as shown. –
2) Mount the wall bracket to the wall in your desired location using the screws
and anchors provided. The wall bracket can be used as a template to mark
the location of predrilled holes. –
3) Secure the gooseneck to the wall base using the large washer and bolt. –
4)
Mount the wall base and gooseneck to the wall bracket. –
5)
Install the rechargeable battery. –
6) Thread the solar light fixture onto the open end of the threaded gooseneck. –
7) Install the LED bulb and turn the switch to on. –
NOTE:

To Replace The Battery

(Battery replacement is approximately 2-3 years)
1) Remove battery cover located on the bottom of the solar light fixture. –
2)
Replace the battery with a new 3.7V rechargeable battery of equal capacity. Ensure
the polarity is correct.
3)
Allow the fixture to receive a minimum of 24 hours of sunlight to allow the rechargeable
battery to reach maximum capacity.

Troubleshooting

If the light does not turn on at dusk after 24 hours of charging:
• Check the battery to make sure it is making secure contact with the terminal.
• Be sure the solar panel is in a relatively sunny location.
• Make sure the solar panel is not affected by other light.

Maintenance

Periodically clean light fixture with soft cloth and warm soapy water.

One Year Limited Warranty

This product is warranted to be free from defects in workmanship or materials at the time
of purchase for one year, (excluding batteries). Should a defect occur, please contact our
customer service line at 1-866-460-4604 for service. Should any evidence of defects in material
or workmanship appear within the warranty period after the date of purchase, Classy Caps Mfg.
Inc. will either repair or replace the product at its option. Classy Caps Mfg. Inc. is not responsible
for injury, property damage, or other consequential damages or damages to third parties arising
directly or indirectly from an actual or alleged defect in material or workmanship of the product.
1 – 3.7V Rechargeable Battery
1 – LED Light Bulb
Fig. 2
Fig. 5
Fig. 7
Do not over tighten the bulb.
Mod. SBL738
Lighting Instructions

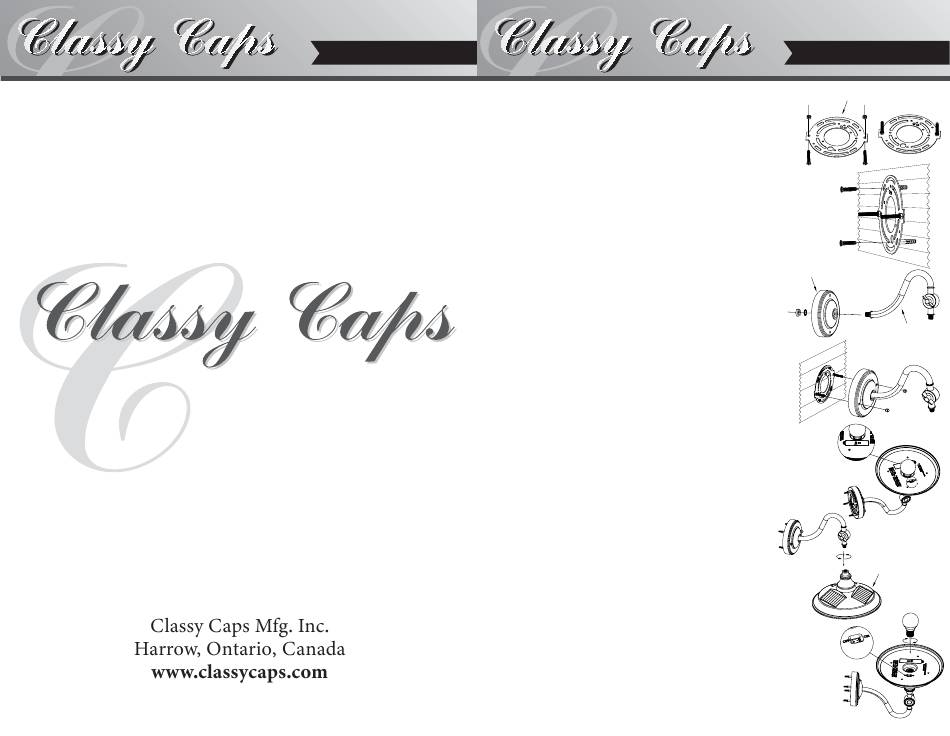

FIG 1
Wall Mounting Bracket
FIG 2
Wall Base
FIG 3
Fig. 1
Goose Neck
Fig. 3
Fig. 4
FIG 4
Fig. 6
Fig. 5
Solar Light
FIG 6
Fixture
FIG 5
FIG 7
