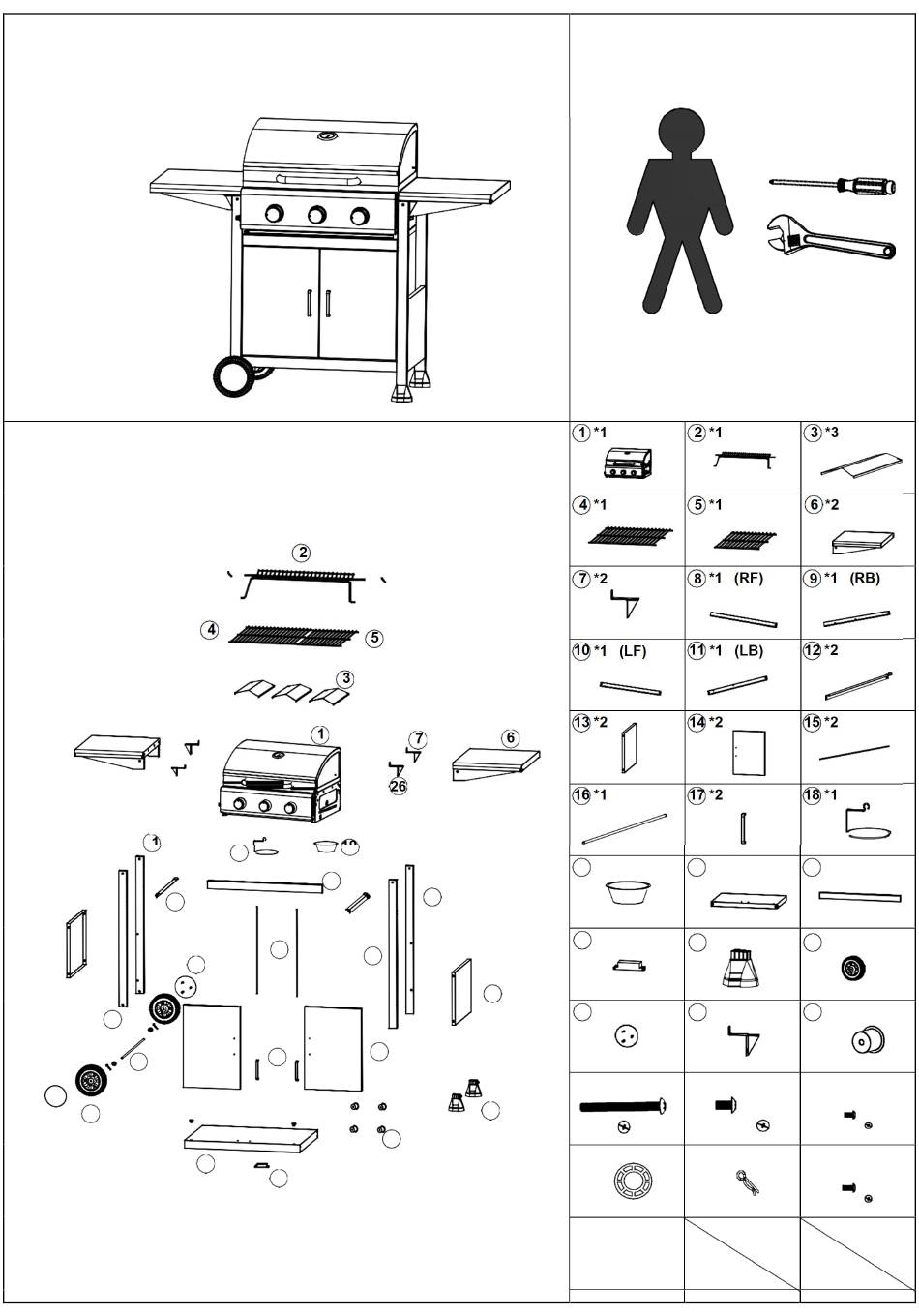

Assembly instructions
2
4
5
3
1
19
18
21
15
8
14
17
20
22
7
6
26
9
13
23
27
1 *1
2 *1
4 *1
5 *1
8 *1 (RF)
7 *2
11 *1 (LB)
10 *1 (LF)
13 *2
14 *2
16 *1
17 *2
19 *1
20 *1
22 *1
23 *2
25 *2
26 *2
A M5-55*16
B M5-12*34
D *2
E *4
G *2
3 *3
6 *2
9 *1 (RB)
12 *2
15 *2
18 *1
21 *1
24 *2
27 *4
C M4-8*4
F M4-12*2
Advertisement
Related Manuals for Livoo DOC279
Summary of Contents for Livoo DOC279
- Page 1 DOC279 Assembly instructions 1 *1 2 *1 3 *3 4 *1 5 *1 6 *2 8 *1 (RF) 9 *1 (RB) 7 *2 11 *1 (LB) 10 *1 (LF) 12 *2 13 *2 14 *2 15 *2 16 *1 17 *2...
- Page 2 1. B M5*12 4PCS 2. B M5*12 4PCS Fix the left front leg and left back leg to the Fix the right front leg and right back leg to the right board with 4pcs M5*12 left board with 4pcs M5*12 3.
- Page 3 6. D 2PCS 5. B M5*12 2PCS E 2PCS A M5*55 4PCS Install the wheel Attach the beams to the legs 7. F M4*12 2PCS 8. C M4*8 4PCS Attach the door handle to the door...
- Page 4 10. B M5*12 4PCS A M5*55 4PCS Install the door Install the firebox on trolley 12. B M5*12 20PCS Fix the side tables Install the side tables...
- Page 5 Place the warming rack onto the trolley make sure the warming rack is flat and Place the flame tamers into the trolley. stable. Place the cooking grills into the trolley. Attach the grease cup to the grease tray. The grease cup needs to be under the grease drip hole.
- Page 7 Instruction Manual Plancha gaz station 3 burners Reference : DOC279 Version : Language : English WWW.LIVOO.FR...
- Page 8 Instruction Manual You have purchased a product LIVOO brand and we thank you. We take great care in design, ergonomics and ease of use of our products. We hope that this product will give you complete satisfaction. This instruction manual is also available on our website www.livoo.fr...
- Page 9 Instruction Manual 3B/P(37) ： DELTA - BP61071 - 67452 Mundolsheim - FRANCE General Safety Instructions 1. PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP THEM FOR FUTURE CAUTION: This appliance will become very hot. Do not move it during use. 3.
- Page 10 Instruction Manual death. 11. Incorrect use or action and failure to observe the safety instructions in this manual may result in fire or explosion, causing serious material damage. 12. Carry out a leak test every year and whenever the gas cylinder is changed or disconnected.
- Page 11 Instruction Manual Be sure to follow the assembly instructions to properly assemble this barbecue/plancha. Incorrect assembly can be dangerous. 22. Use appropriate heat-resistant barbecue utensils to handle cooking food. Wear protective gloves when using the barbecue/plancha to avoid burns. Some accessible parts can be very hot.
- Page 12 Instruction Manual - Extinguish any open flame - If the smell persists, stop using the appliance, move away from the appliance and contact your dealer or the fire brigade immediately. A gas leak may cause a fire or explosion which could result in serious injury or death or damage to property.
- Page 13 Instruction Manual before using the grill. 38. Do not overtighten connections. Do not use Teflon tape or sealing fluids on connections. Warning. Never connect your appliance to town gas (natural gas). The gas circuit is designed exclusively for butane/propane gas (G30/G31). 40.
-
Page 14: Assembly Instruction
Instruction Manual propane gas. Never use an adjustable regulator with the product. Make sure that the regulator is correctly set so that the supply pipe and valves are filled with gas. Otherwise, the burners will not have enough power and will not light or will cut out regularly. If you need to replace the gas cylinder, make sure that the appliance is switched off and that there is no source of ignition nearby (spark, cigarette, open flame, etc.). - Page 15 Instruction Manual b) Éteignez le gril dès que la cuisson est terminée. c) Ne préchauffez le gril à gaz que pendant 10 à 15 minutes. (Sauf pour la première utilisation) d) Ne pas préchauffer plus longtemps que recommandé. e) N'utilisez pas un réglage plus élevé que nécessaire. f) Raccordez le tuyau et le régulateur au réservoir de gaz situé...
- Page 16 Instruction Manual Figure 1 If you place the gas cylinder outside the barbecue, the height of the gas cylinder is less than 80 cm and the width is less than 35 cm, the net weight of the gas cylinder should not exceed 15 kg Figure 2 How to connect the gas cylinder This appliance is designed only for use with low pressure butane, propane or their mixture of gases and...
- Page 17 Instruction Manual Illustration for barbecue and hose Illustration for connection of gas cylinder, connection regulator and hose Figure 3 Warning: Always check for leaks in the gas line at the connector with soapy water by terminating all connections. How to disconnect a gas cylinder a) Except in the case of two-cylinder installations with a switching valve, close the gas stopcock if it is installed on the appliance.
-
Page 18: Lighting Instructions
Instruction Manual f) Always cook very carefully. g) Do not heat any unopened glass or metal containers on the grill. Pressure may build up and cause the container to burst, which could result in serious personal injury or damage grill. Figure 4 WARNING: The black area on the handle (see image above for reference) will become hot when the gas grill is in use, be careful! Do not touch the black area. -
Page 19: Storage And Cleaning
Instruction Manual Figure 5 STORAGE AND CLEANING Rust spots may appear on the product due to the metallic particles contained in the stainless steel used in the manufacture of this product. We recommend that you brush them off quickly to limit their spread. After each firing, wait for the product to cool down completely. -
Page 20: Troubleshooting
Instruction Manual GAS CYLINDER The appliance can be used with any gas cylinder of weights between 4.5KGS and 15KGS butane and 3.9KGS to 13KGS propane. The gas cylinder should not be dropped or handled roughly! If the appliance is not in use, the cylinder must be disconnected. Replace the protective cap on the cylinder after disconnecting the cylinder from the appliance. - Page 21 Instruction Manual Gas leaking from LP tank valve .Failure of tank valve from mishandling or Turn off LP tank valve. Return LP tank to gas mechanical failure supplier Gas leaking between LP tank Improper installation, connection not tight, Turn off LP tank valve, remove regulator and regulator connection failure of rubber seal from cylinder and visually inspect rubber...
- Page 22 Instruction Manual Burner will not light using ignitor Electrical issues: 1.Replace electrode. 1. Electrode cracked or broken;” sparks at 2.Tip of electrode should be pointing toward crack.” port hole in burner. The distance should be 1/8” to 3/16”. Adjust if necessary. 2.
- Page 23 67452 Mundolsheim – France Declare under our own responsibility that the article : Description : 4 burners gaz barbecue Reference : DOC279 to which this declaration applies, is in conformity with the applicable EU harmonization legislation : DIRECTIVES STANDARDS or SPECIFICATIONS 2016/426 (appliances burning notified body INTERTEK, n°2575, has delivered the CE...
- Page 24 Instruction Manual LIVOO BP 61071 67452 Mundolsheim - FRANCE Photo no contractual • Worried about the quality of his products the manufacturer reserves the right to make modifications without • advance notice...
