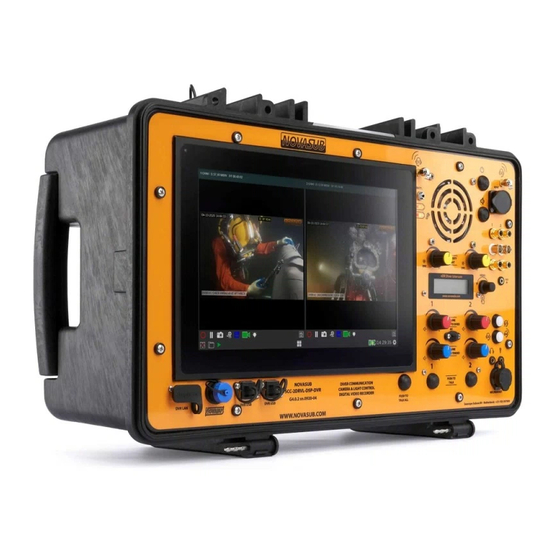

Novasub xDR -Main Quick Start

Build 39 30-08-2021
Startup
Plug in main power cable
Plug in external power supply 100-240 vac. The system will automatically start
charging the internal battery. Even with the main power switch off.
Connect Communication
Connect the communication cable to the system. Connect optionally the
communication to the recorder. You can then also connect a headset or any
other audio input or output.
Switch main power ON & OFF
Without a DVR3:
Power ON
Press and hold for
2 seconds then let
2s
go. The screen will
turn on after a few
second

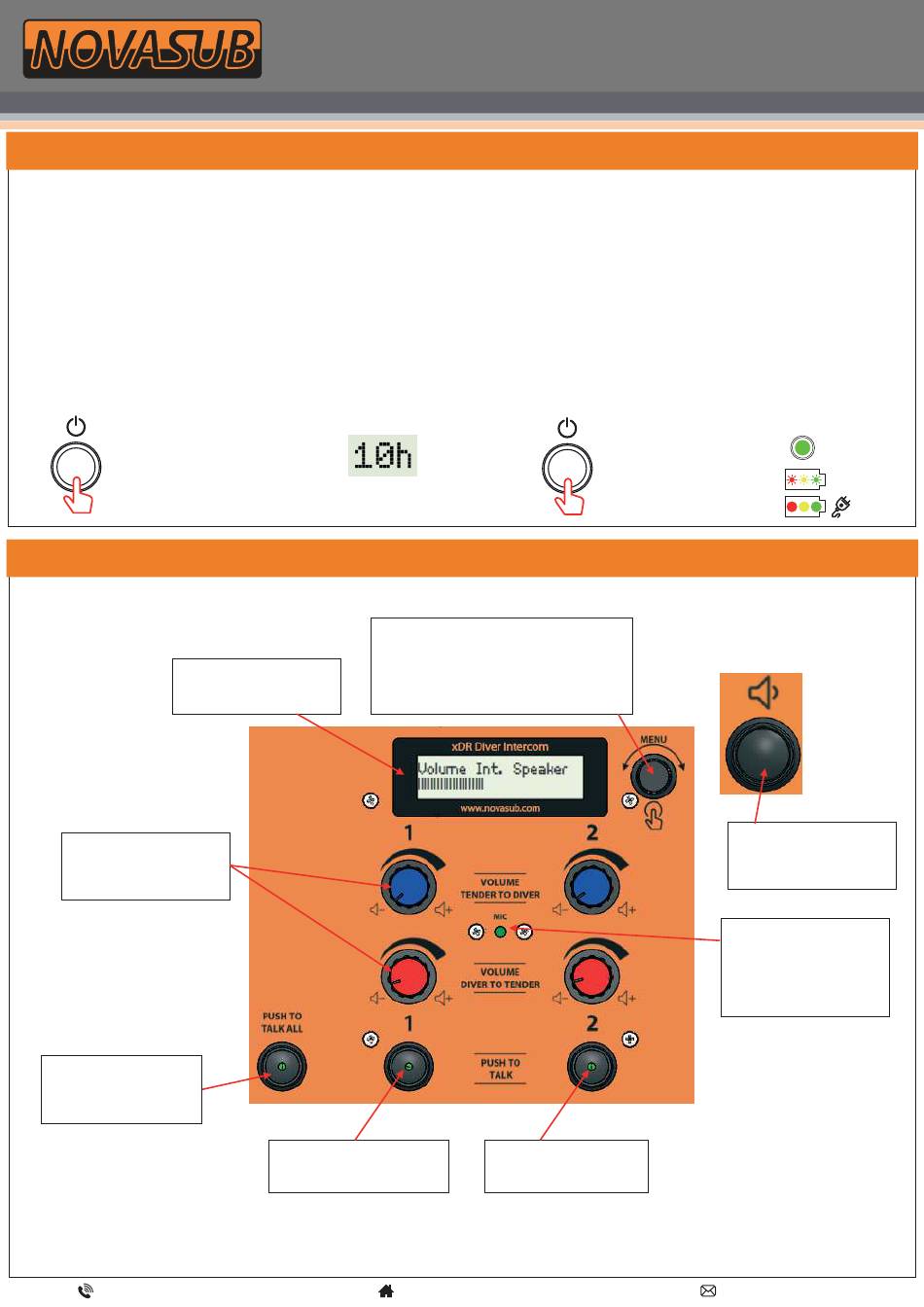

Controls
Screen
Is used for settings and
displaying other information.
Volume Control
These potentiometers are
used to control the volume to
and from the divers.
Push to talk all
Press this to talk to all divers
simultaneously when you
are in Half Duplex
+31-183-307900
BATT.
Power OFF
Press and hold
until the screen
turns off
Remaining battery
time is on screen
Rotary Switch
This switch has a rotation and push function. It
is used to enter and scroll through the Menu
items. By default the switch is used to
increase/decrease the volume.
Hold 1 second to open menu
Push to talk Diver 1
Press this to talk to diver 1
when you are in Half Duplex
www.novasub.com
xDR - Main Quickstart
With a DVR3:
Power ON
Press and
hold for 2
2s
seconds
Push to talk Diver 2
Press this to talk to diver 2
when you are in Half Duplex
BATT.
Power OFF
Press and hold
for 2 seconds,
LED starts
flashing rapidly
This button is
usually located
next to the
speaker
Speaker ON/OFF
Press this to enable or
disable the speaker. Pushed
in means it is enabled
Panel Mic
This Mic is used when there
is no headset connected. The
Mic is sensitive, so there is no
need to speak into it. You can
just speak from a distance.
