Summary of Contents for CORA CS1060

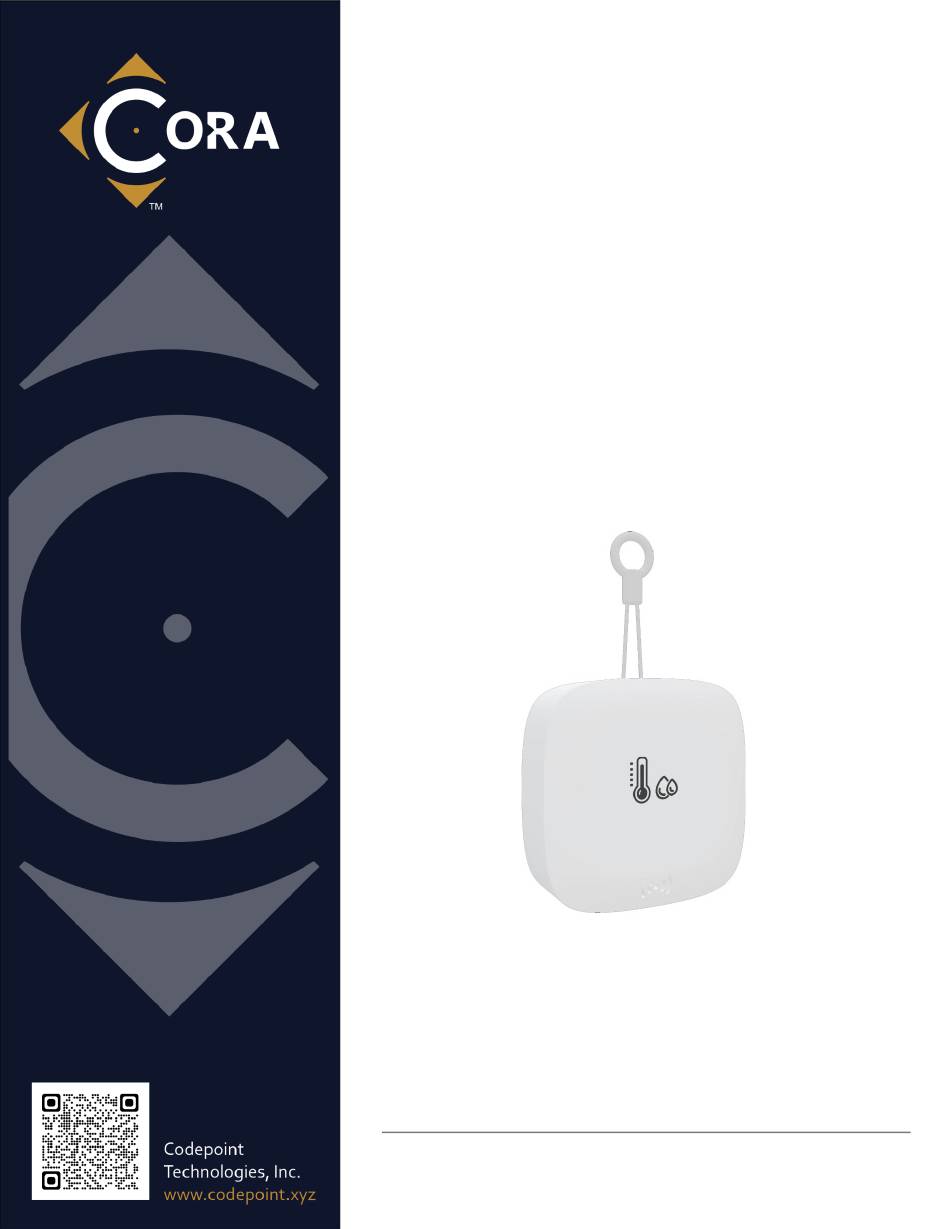

- Page 1 CS1060 Temperature & Humidity Sensor User Guide Long-range, low-power temperature and humidity sensor supporting LoRaWAN or Coralink wireless protocols. Ideal for applications in smart-building, home automation, metering, and logistics. Version: 1.0 May 2022...
-
Page 2: Table Of Contents
CS1060 Temperature & Humidity Sensor – User Guide Contents Getting Started ........................... 3 What’s In the Box ........................3 Registering the Device ......................4 Attaching to the Network ......................4 User Interface ......................... 5 Set Button ........................... 5 Status Indicators ......................... 6 Selecting Operating Configuration .................. -
Page 3: Getting Started
CS1060 Temperature & Humidity Sensor – User Guide Getting Started The CS1060 is a long-range, low-power, temperature, and humidity sensor supporting LoRaWAN or Coralink wireless protocols. The sensor has highly accurate thermometer and hygrometer with standard and custom configuration profiles supporting a variety of applications in the home and business. -
Page 4: Registering The Device
Note: If the CS1060 has not joined within a few minutes, the LED will stop blinking, though it will continue try to join: ten times in the first hour, then longer intervals over the first week until finally attempting once every 12 hours. -
Page 5: User Interface
Interface Set Button The CS1060 user interface consists of the LED status indicators (Figure 2) and the set button located on the underside of the device. Pressing the button once will uplink current temperature and humidity measurements and indicate the current network status discussed previously. -
Page 6: Status Indicators
Network status blink occurs up to 50 times. Single button press will resume status blink for another 50 cycles. Selecting Operating Configuration The CS1060 can be configured through a series of button presses to operate in one of the available default settings. Select one of the following settings based on the application requirements. - Page 7 CS1060 Temperature & Humidity Sensor – User Guide • Any relative humidity change of 10% on average (5 minutes running average); • Any changes of temperature exceeding 3.6°F (2°C) per minute. This configuration is useful for monitoring temperature changes in refrigerators and freezers, where rapid changes in temperature can indicate a door was left open.
-
Page 8: About Lorawan
(unconfirmed) protocols used for IP networks. ⧫ Before a device, such as the CS1060 Sensor can transmit messages using LoRaWAN it must go through a “join” process. The Join process involves key-exchange with the cloud- hosted network provider (The Things Network, Helium, etc.) and is defined in the LoRaWAN protocol standard. -
Page 9: Device Placement
CS1060 Temperature & Humidity Sensor – User Guide Device Placement The CS1060 can be hung or placed on a shelf. ⧫ Wall-mounting: using the mounting ring, hang the sensor on the wall, using a nail, screw, or other secure object. -
Page 10: Event Notifications And Reports
CS1060 Temperature & Humidity Sensor – User Guide Event Notifications and Reports The CS1060 Sensor has six (6) configurable event triggers that can be used to monitor the changing temperature and humidity conditions. When event thresholds are exceeded, the Sensor uplinks a notification indicating the event and current temperature conditions. Using the configuration messages for the device, the Sensor can report the following information: ⧫... -
Page 11: Replacing The Batteries
CS1060 Temperature & Humidity Sensor – User Guide Replacing the Batteries A small Philips screwdriver and tweezers are needed to replace the batteries. • TO MAINTAIN THE WATERTIGHT DESIGN OF THE TEMPERATURE AND HUMIDITY SENSOR, USE EXTREME CARE AND FOLLOW THE BATTERY REPLACEMENT INSTRUCTIONS CLOSELY. -
Page 12: Procedure
CS1060 Temperature & Humidity Sensor – User Guide Procedure Use Tweezers to take out the four sealed rubber pads at the base of the device. Use a screwdriver to unscrew the screws at the base of the device and remove the base. -
Page 13: Configuration And Integration
CS1060 Temperature & Humidity Sensor – User Guide Configuration and Integration The CS1060 supports the following settings and features, which are configured via downlink messages. Configuration Description Units Default Heartbeat / Battery Specifies the heartbeat message 1440 minutes Interval uplink interval... -
Page 14: Specifications
CS1060 Temperature & Humidity Sensor – User Guide Specifications ⧫ LoRaWAN v1.03 Class A, Coralink™ Class A device ⧫ U.S. 923 MHz, E.U. 868 MHz, China 470 MHz, and other frequencies available ⧫ Color: White Dimensions [L x W x D]: 2.44 x 2.44 x 0.87 inches (62 x 62 x 22 mm) ⧫... - Page 15 CS1060 Temperature & Humidity Sensor – User Guide ⧫ Maximum Humidity Accuracy (@ 77°F / 25°C) % Humidity Range Uncertainty 0 – 20 ±3.5 20 – 80 ±2 80 – 100 ±3.5 41 – 140 ±0.72 Page 15...
-
Page 16: Ordering Information
CS1060 Temperature & Humidity Sensor – User Guide Ordering Information Communication Options Prior to ordering, determine the communication requirements: ⧫ Application Protocol: Untethered XMF or CP-Flex OCM ⧫ Network Protocol: LoRaWAN or Coralink ⧫ Operating Region and Frequency: US915, EU868, CN470 (others available upon request) ⧫... - Page 17 CS1060-UL-EU8ST-01 – Temperature & Humidity sensor for Europe region, untethered, ⧫ standard configuration, packaged for solution provider distribution. CS1060-CL-US9HT-00 – Temperature & Humidity sensor configured for Cora OCM and CP-Flex cloud stack integration, Supports OCM V2 protocol specifications. Page 17...
-
Page 18: Fcc Statement
CS1060 Temperature & Humidity Sensor – User Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
