SmartChargePro7
RSCPR7 - 12v, 7A
SmartChargePro10
RSCPR10 - 12v, 10A
SmartChargePro15
RSCPR15 - 12v, 15A
SmartChargePro25
RSCPR25 - 12v, 2 / 6 / 12 / 25A
Instructions:
www.ringautomotive.co.uk
Retain these instructions for future reference
12v
SmartChargePro35
RSCPR35 - 12v, 2 / 8 / 16 / 35A
SmartChargePro50
RSCPR50 - 12v, 2 / 6 / 12 / 25 / 50A
SmartChargePro824
RSCPR824 - 24v, 2 / 4 / 6 / 8A
24v
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ring Powering SmartChargePRO Series
Summary of Contents for Ring Powering SmartChargePRO Series
- Page 1 SmartChargePro7 SmartChargePro35 RSCPR7 - 12v, 7A RSCPR35 - 12v, 2 / 8 / 16 / 35A SmartChargePro10 SmartChargePro50 RSCPR10 - 12v, 10A RSCPR50 - 12v, 2 / 6 / 12 / 25 / 50A SmartChargePro15 SmartChargePro824 RSCPR15 - 12v, 15A RSCPR824 - 24v, 2 / 4 / 6 / 8A SmartChargePro25 RSCPR25 - 12v, 2 / 6 / 12 / 25A...
- Page 2 Safety RISK OF EXPLOSION – Only connect the battery leads when the mains supply is disconnected. Explosive gasses may escape from the battery during the charging process. Prevent flames and sparks and provide adequate ventilation during charging Indoor use only Disconnect the supply before breaking or making the connection to the battery Not suitable for use with non-rechargeable batteries In addition to the battery types and capacity detailed in the specifications, the charger is suitable for...
- Page 3 SmartChargePro 7,10 & 15 AC Power LED indicator Power supply ‘Charging’ LED indicator ‘Gel’ battery setting ‘Fully charged’ LED indicator ‘AGM’ battery setting ‘Select’ switch – selects between: Lead Acid ‘Wet’ battery selection Power Supply, Gel, AGM, lead acid (wet) ‘Calcium’...

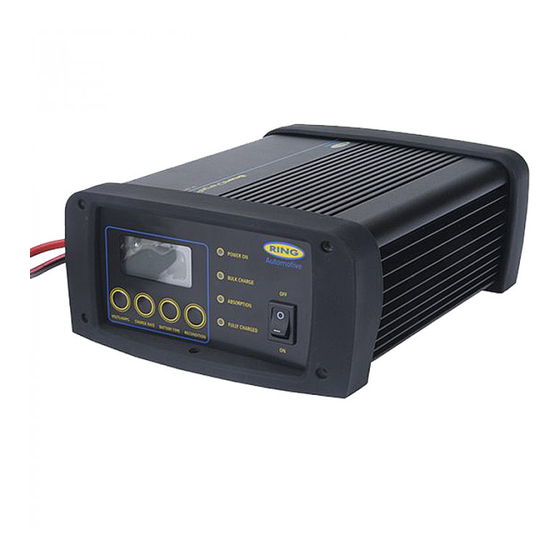

- Page 4 SmartChargePro 25, 35, 50 & 824 LCD display ‘Bulk charge’ stage LED indicator Displays either watts or charging rate in amps ‘Absorption’ stage LED indicator Charge rate select switch ‘Fully Charged’ LED indicator Battery type selection switch ON/OFF switch Manual recondition function Protective rubber end caps AC Power LED indicator RSCPR25...
-
Page 5: Battery Charging - Connection
Battery charging – Connection Charging a battery within a vehicle Ensure the AC power lead is disconnected from the AC mains supply before commencing Charging a negatively grounded (earth) battery Connect the red (+) battery clip to the red (+) post on the battery Connect the black (-) battery clip to the vehicle chassis, away from the battery and fuel line. -
Page 6: Charging Stages
Charging Stages The Ring Automotive SmartChargepro range are all Multi-Stage battery chargers. 1. Desulphation – The automatic desulphation stage pulse charges the battery to breakdown the build up of lead sulphate crystals. These crystals can occur when a battery has been discharged or left unused for a period of time. -
Page 7: Charge Rates
Charge Rates To select the desired charge rates (RSCPR25, RSCPR35, RSCPR50, RSCPR824) press the ‘Charge Rate’ select button until the desired charge rate is displayed. The SmartChargePro retains the last setting used when first connected The table below shows the charge rates available and the advised minimum and maximum battery size: Maximum Part Number Voltage... -
Page 8: Lcd Display
LCD Display (RSCPR25, RSCPR35, RSCPR50 and RSCPR824) The LCD display on the SmartChargePro can display the following information: Battery voltage (V) • Charging current applied (A) • • Battery type: Gel, AGM, Wet (lead acid) and Calcium. • Battery charging / Charged icon •... -
Page 9: Battery Chemistry Selection
Battery Chemistry Selection The multi chemistry function allows you to set the optimum charging profile to suit each batteries chemistry type: Gel, AGM, Lead Acid (WET) and calcium. This ensures correct and thorough charging and maximises battery performance and battery life Designed for Gel batteries and applies a maximum charge of 14.1v (RSCPR824: 28.2v) Designed for AGM batteries and applies a maximum charge of 14.4v (RSCPR824: 28.8v) Lead Acid (Wet) -
Page 10: Temperature Compensation
Temperature Compensation (RSCP25, RSCP35, RSCP50 and RSCP824) Allows the monitoring of the battery’s temperature for safe battery charging. The temperature sensor monitors the battery temperature and adjusts the SmartChargePro’s output to prevent over heating. Insert the temperature sensor into the plug at the rear of the charger. Install the ring terminal on the temperature sensor onto the negative battery post. - Page 11 Remote Control (Sold separately – Part Number: RSCPRC) Suitable for RSCPR25, RSCPR35, RSCPR50 and RSCPR824 Controls and monitor the SmartChargePro’s performance and operation from the remote control. Ideal if your battery is in a permanent or not easy to access location. Bi-colour LED indicator Remote control mounting bracket Displays battery voltage (volts)
-
Page 12: Mounting Instructions
Mounting Instructions The end plates of the charger include a 3.5mm mounting hole to allow for permanent fixing. Positioning: The SmartChargePro must be placed in a dry, well ventilated area. Ensure there is at least 10cm clearance from the end plates to allow adequate ventilation for the cooling fan. -
Page 13: Frequently Asked Questions
Frequently asked questions How do I know if the battery is charged? The SmartChargePro’s FULLY CHARGED LED will illuminate. If using the optional remote control the bi-colour LED will illuminate green (solid). The battery does not appear to be charging? ‘Charging’... -
Page 14: Specifications
Ring Automotive Limited Gelderd Road, Leeds, England LS12 6NA UK Sales: +44 (0)113 213 7389 Export Sales: +44 (0)113 213 7309 +44 (0)113 231 0266 autosales@ringautomotive.co.uk www.ringautomotive.co.uk Ring Automotive and Ring Powering are registered trade marks Cat ref No: L384...
