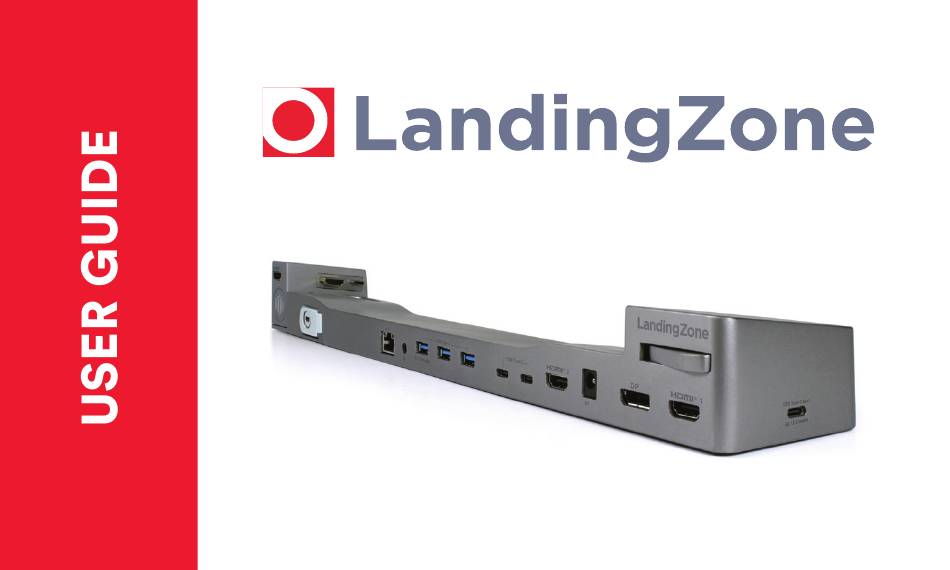

- Page 1 14-inch & 16-inch M1 MacBook Pro For additional user guides, please visit LandingZone.net/user-guides...
- Page 2 Lorem i psum...
- Page 3 Dear MacBook Pro Owner, Thank you for your purchase of the LandingZone Docking Station for the 14-inch and 16-inch M1 MacBook Pro. We hope the LandingZone will be an excellent addition to your workspace. This manual will help you through setup and answer any questions you may have.
-
Page 4: What's In The Box
LZ5016M - LandingZone Docking Station for 16-inch M1 MacBook Pro COMPATIBILITY The LZ5014M works with the 14-inch M1 MacBook Pro Model A2442 (Released 2021) The LZ5016M works with the 16-inch M1 MacBook Pro Model A2485 (Released 2021) WHAT’S IN THE BOX? - Page 5 BENEFITS The LandingZone for 14-inch and 16-inch M1 MacBook Pro is our most advanced docking station to date. With an astounding 15 ports and connections, it is designed to transform the M1 MacBook Pro into a powerful and versatile workstation.
- Page 6 DOCKING Step 1: Connecting Power and Peripherals Connect the 140W LandingZone Power Adapter to the Power Port on the LandingZone. Connect Ethernet & peripherals such as monitors, keyboards, mice, storage devices, speakers, etc.
- Page 7 DOCKING Step 2: Docking Your MacBook Pro Place your MacBook Pro on the LandingZone and slide it back until the feet touch the rear guides on the LandingZone. Slide the MacBook to the left, connecting the Type-C ports on the MacBook Pro with the Type-C...
- Page 8 DOCKING Step 3: Connecting Your MacBook Push the right wing of the Optional: Connect a Kensington Lock (not included) to the Kensington LandingZone into the ports Lock Slot. on the MacBook Pro.
- Page 9 UNDOCKING Step 1: Ejecting Your Drives Safely eject all devices in the operating system of the MacBook Pro.
- Page 10 UNDOCKING Step 2: Disconnecting the Right Wing Grip the right wing of the LandingZone and pull it out of the MacBook.
- Page 11 UNDOCKING Step 3: Disconnecting the Left Wing Press the release lever on the back of the left wing of the LandingZone to disconnect the MacBook.
- Page 12 UNDOCKING Step 4: Removing Your MacBook Confirm that nothing is connected to the MacBook, then lift and remove the MacBook from the LandingZone.
-
Page 13: Customer Support
CUSTOMER SUPPORT Online Support Go to www.landingzone.net/FAQs Phone Support Call 1-888-872-3251 during normal business hours E-mail Support Send email to support@landingzone.net... - Page 14 PROPER OPERATING ENVIRONMENT Operating temperature: 50° to 95° F (10° to 35° C) Storage temperature: -13° to 113° F (-24° to 45° C) Relative humidity: 0% to 90% non-condensing Maximum operating altitude: 10,000 feet Maximum storage altitude: 15,000 feet Maximum shipping altitude: 35,000 feet...
-
Page 15: Troubleshooting & Faqs
TROUBLESHOOTING / FAQs USB Devices Are Not Working / MacBook is Not Charging: Make sure that both sides of the LandingZone are completely closed and flush against the MacBook Pro. Confirm that the LandingZone Power Adapter is properly plugged into your wall outlet and connected to the LandingZone. -
Page 16: Care And Cleaning
CARE & CLEANING Clean with a soft cloth. Do not use water or cleaning solutions to clean the LandingZone. DISPOSAL Applicable laws may limit how you can dispose of this product. Accordingly, please make sure you follow your local, state, federal,... - Page 17 WARNINGS Do not dock to the LandingZone if a smartphone or tablet is already connected to the High-Powered Charging Port. Please disconnect any smartphone or tablet before docking and reconnect it after the MacBook has been docked. The DisplayPort on the LandingZone uses Type-C Alt Mode and some older DisplayPort Adapters may not be compatible with this new standard.
-
Page 18: Copyright & Trademark Information
COPYRIGHT & TRADEMARK INFORMATION © 2022 infiniWing, Inc. LandingZone is a trademark of InifiniWing, Inc. Apple, the Apple logo, MacBook, macOS are trademarks of Apple, Inc., registered in the US and other countries. Kensington is a registered trademark of Kensington Computer Group, a division of ACCO Brands. HDMI and High- Definition Multimedia Interface are trademarks or registered trademarks of...
