Modulex KNX PS-S.640.30.1 Quick Start Manual

KNX POWER SUPPLY

PS-S.640.30.1
ОСНОВНЫЕ СВЕДЕНИЯ
Intelligent power supply for the KNX system with an additional auxiliary power output of 29V DC, with the
function of diagnostics of voltage in the KNX bus and protective against short circuit and overload .
• Compact housing (2TE)
• Additional output 29V DC
• Diagnostic function
• LED status indication
• Output current 640mA
• Leakage < 5W
• Mains voltage 230V AC 50Hz
• Overload and short circuit protection
• Bus line reset via local push button or remote
• DIN rail 35mm mounting

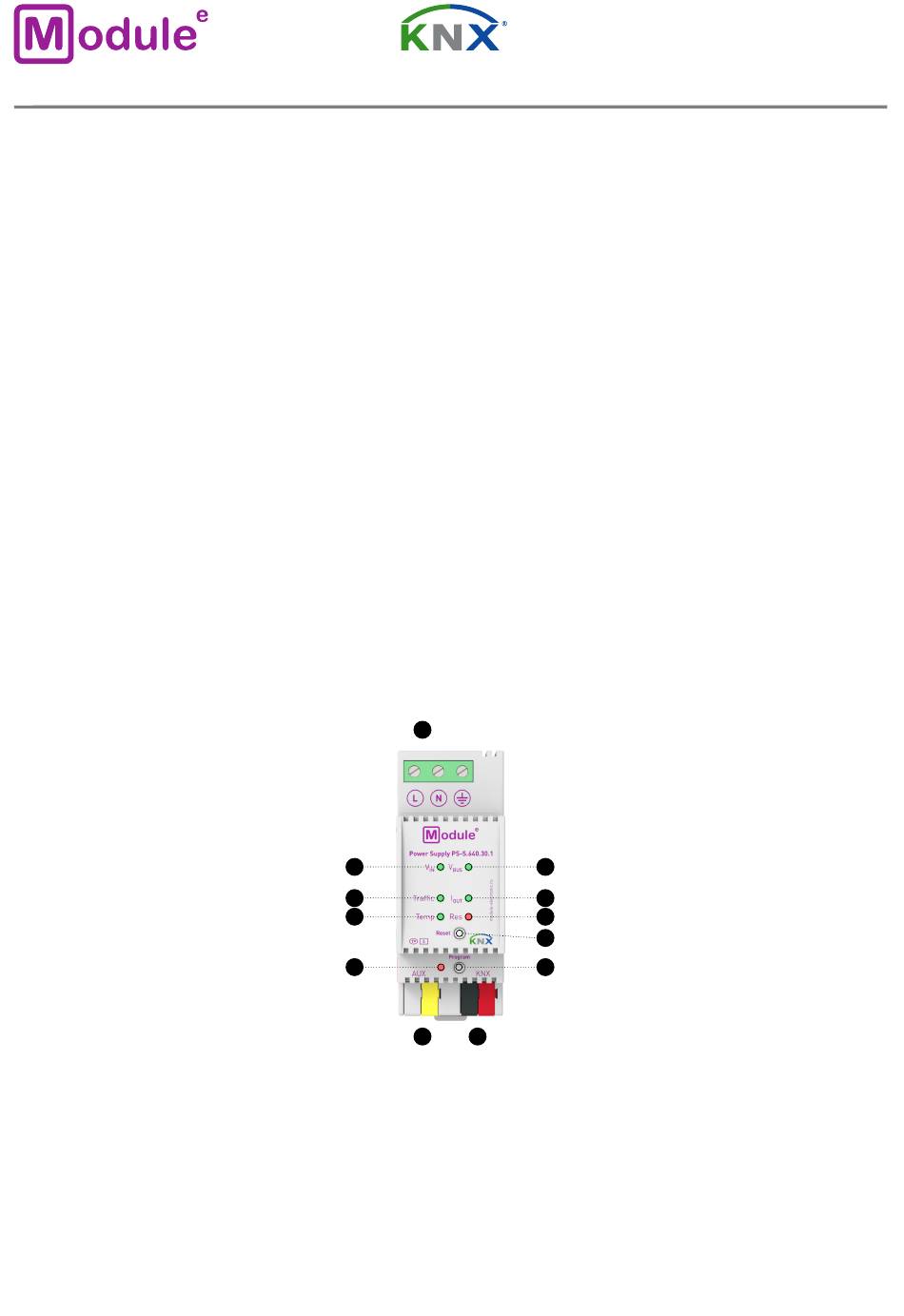

A. Supply voltage terminals B. Reset button C. Programming button
1. LED input voltage V
1
3
5
7
2. LED bus voltage V
IN
5. LED internal temperature 6. LED KNX reset 7. Programming LED
Module Electronic LLC
module-electronic.ru, info@module-electronic.ru
phone: +7-495-150-27-25
page 1
A
2
4
6
B
C
D E
D. Aux output connector E. KNX TP connector
3. LED telegram traffic 4. LED output current I
BUS
PASSPORT
МГРЛ-27.12.1931-008.01 ПС
OUT
