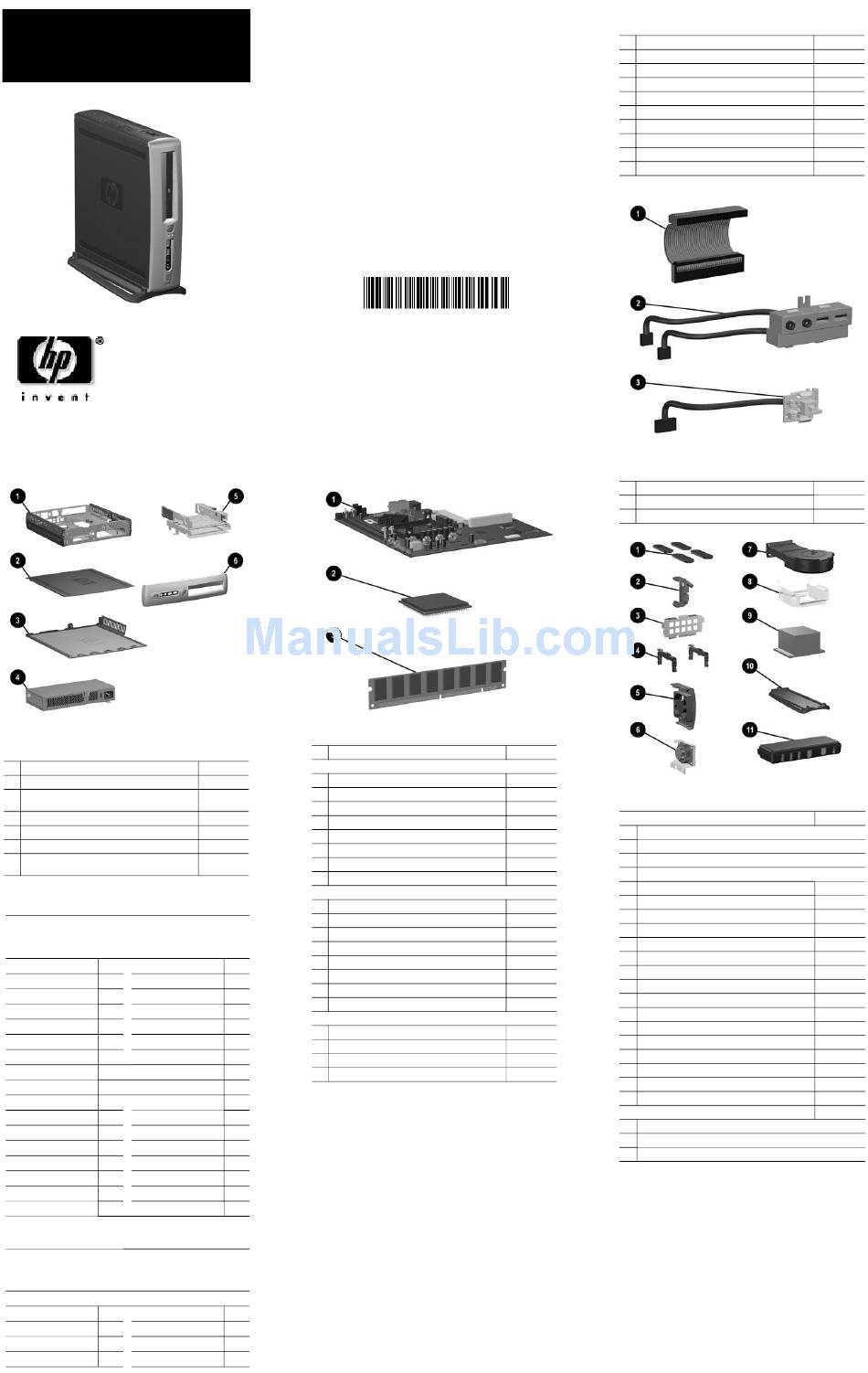

hp compaq d530 Series Personal
Computer
illustrated parts map
Ultra Slim Desktop
System Unit
1
Chassis assembly
not spared
2
Computer access panel (top)
333030-001
3
computer bottom panel with rubber feet and thumb-
333031-001
screw
4
Power supply, PFC
308619-001
5
MultiBay Holder
333033-001
6
Front bezel assembly
333035-001
6
Front bezel assembly (not painted, for Blue Angel
335168-001
use only)
Easy Access Keyboards (not illustrated)
PS/2
323686-xxx
Wireless
323745-xxx
USB
324634-xxx
USB
323746-xxx
Arabic
-171
Japanese
-291
Belgian
-181
Korean (Hanguel)
-AD1
BHCSY
-B41
LA Spanish
-161
Brazilian Portuguese
-201
Norwegian
-091
Czech
-221
PRC
-AA1
Danish
-081
Polish #
-241
Finnish
-351
Portuguese
-131
French
-051
Russian
-251
French Arabic *
-DE1
Slovakian
-231
French Canadian
-121
Spanish
-071
German
-041
Swedish
-101
Greek
-151
Swiss *
-111
Hebrew $
-BB1
Taiwanese
-AB1
Hungarian $##
-211
Thai
-281
International
-B31
Turkish
-141
International**
-021
U.S.
-001
Italian
-061
U.K.
-031
*not for 323686-xxx
#for 323686-xxx only
**for 324634-xxx only
##not for 323745-xxx
$not for 323746-xxx
Easy Access Keyboards (not illustrated)
PS/2, BG Certified
325445-xxx
Brazilian Portuguese
-181
International
-B31
Danish
-081
Italian
-061
French
-051
Swedish
-101
German
-041
Swiss
-111
© 2003 Hewlett-Packard Development Company, L.P.
HP and the HP logo are trademarks of Hewlett-Packard
Development Company, L.P.
All other product names mentioned herein may be
trademarks of their respective companies.
HP shall not be liable for technical or editorial errors or
omissions contained herein. The information in this
document is provided “as is” without warranty of any kind
and is subject to change without notice. The warranties for
HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein
should be construed as constituting an additional
warranty.
July 2003
Document Number
334097-001
Standard and Optional Boards
1
System board with alcohol pad and thermal grease
332935-001
Intel Processors with alcohol pad and thermal grease
2
Celeron 2.0 GHz processor
309578-001
*
Celeron 2.2 GHz processor
321723-001
*
Celeron 2.3 GHz processor
335136-001
*
Pentium 2.4 GHz processor
288689-001
*
Pentium 2.53 GHz processor
333485-001
*
Pentium 2.66 GHz processor
305579-001
*
Pentium 2.8 GHz processor
305051-001
*
Pentium 3.0 GHz processor
315637-001
Memory Modules
3
128 MB/400 MHz FSB
335697-001
*
256 MB/400 MHz FSB
335698-001
*
512 MB/400 MHz FSB
335699-001
*
1.0 GB/400 MHZ FSB
335700-001
*
128 MB/333 MHz FSB
314795-001
*
256 MB/333 MHz FSB
314793-001
*
512 MB/333 MHz FSB
314796-001
*
1.0 GB/333 MHZ FSB
314794-001
Other Cards
*
TCPA security module
332603-001
*
1394 PCI card with 2 external and 1 internal ports
287476-001
*
Lucent V92 modem
239411-001
*
DVI ADD 4-layer card
326137-001
*Not shown
Mass Storage Devices (not illustrated)
40 GB\5400 RPM Hard drive
236921-001
80 GB\5400 RPM Hard drive
292208-001
40 G B\7200 RPM Hard drive
286692-001
80 GB\7200 RPM Hard drive
250185-001
160 GB/7200 RPM Hard drive
325306-001
Diskette drive
335169-001
24X CD-RW/DVD-ROM MultiBay drive
325312-001
24X CED-ROM MultiBay drive
325314-001
24/10/24X CD-RW MultiBay drive
325315-001
8X/24X DVD-ROM MultiBay drive
325316-001
Cables
1
Hard drive data cable (320382-001)
333038-001
2
Front USB I/O device with cable
345026-001
3
Power switch/LED cable with switch holder
333032-001
Miscellaneous Parts
Miscellaneous Hardware Kit, contains:
333350-001
1
Rubber foot (4 ea) (320354-001)
2
PCI locking device (326015-001
3
DVI door (326021-001)
4
Heat sink retaining clip (2 ea) (336352-001)
5
Chassis fan with housing
343419-001
6
Speaker with holder
333034-001
7
CPU fan with shroud
333036-001
8
Lower air flow guide
333037-001
9
Heat sink with thermal grease and alchool pad
333040-001
10
Pedestal
333039-001
11
Port control cover (331863-001)
pending
*
Mouse, 2-Button, PS/2 with scroll wheel
323614-001
*
Mouse, 2-Button, wireless with scroll wheel
323616-001
*
Mouse, 2-Button, USB, optical with scroll wheel
323617-001
*
Mouse, 2-Button, USB, with scroll wheel
323615-001
*
Drive Key, 16 MB
324780-001
*
Drive Key, 64 MB
331465-001
*
Drive Key, 128 MB
331466-001
*
Return kit with buns
335140-001
*
Real-time-clock battery
153099-001
Miscellaneous Screw Kit, includes
333351-001
*
Thumb screw (326029-001) (2 ea)
*
#6-32 x .187 HiTop (262508-003) (2 ea)
*
#6-32 x .250 HiTop (262508-001) (2 ea)
*Not shown
