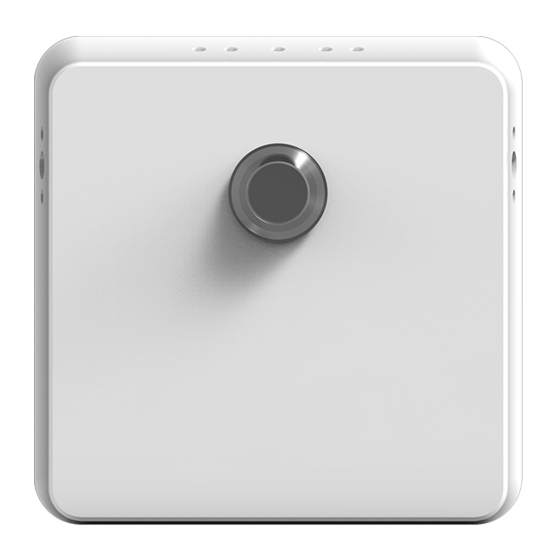

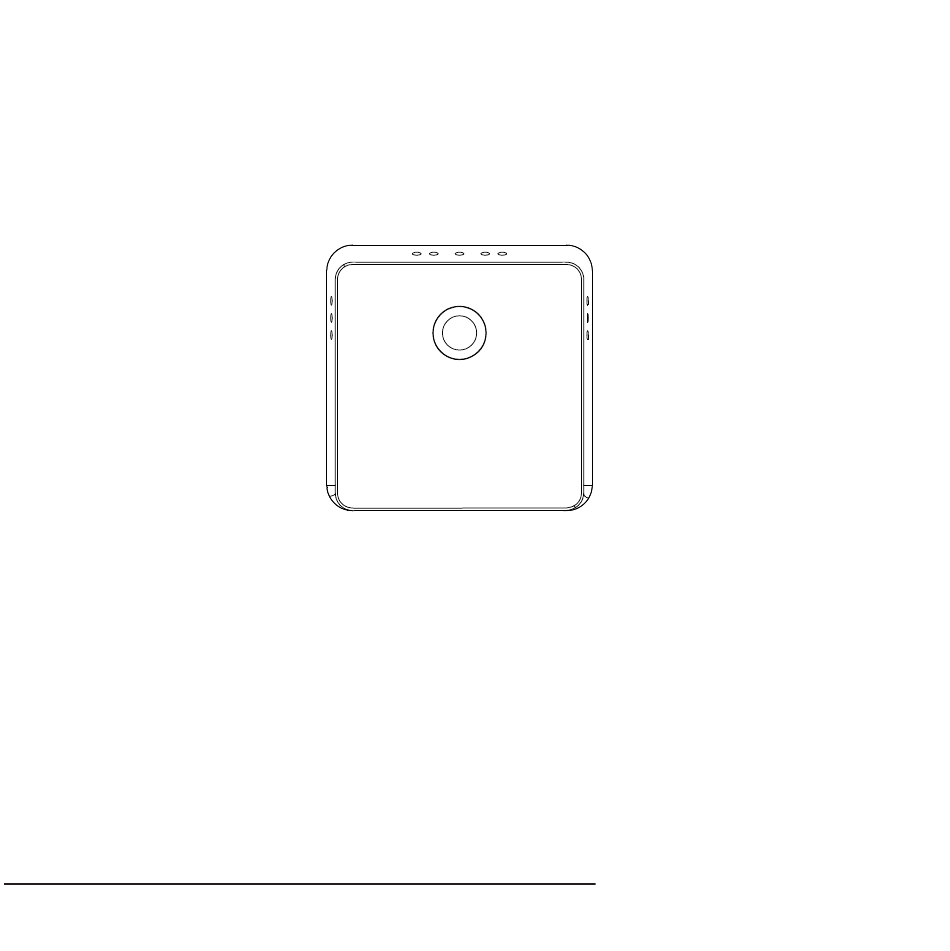

- Page 1 PIR 323-Z-TY Tuya ZigBee Multi-Sensor Quick Start Guide...
- Page 2 Safety Notice WARNING: Failure to follow these safety notices could result in fire,electric shock, injuries, or other damage to the your property. Please read all the safety notices below before using the sensor. •Avoid high humidity or extreme temperatures. •Avoid long exposure to direct sunlight or strong ultraviolet light.
- Page 3 Technical Specifications Wireless Connectivity ZigBee • 2.4GHz IEEE 802.15.4 ZigBee Profile • ZigBee 3.0 • Operating frequency: 2.4GHz RF Characteristics • Range outdoor/indoor: 100m / 30m (Open area) • Internal PCB Antenna Physical Specifications Battery • DC 3V (Two pcs AAA batteries) Indicator • One color LED (Green) • Temperature Range：-10℃...
- Page 4 Welcome PIR323-TY is a Tuya Zigbee multi-sensor with built-in temperature, humidity sensor and PIR sensor which can be equipped with Tuya gateway and Tuya APP . This guide will provide you with an overview of the product and help you get through the initial setup.
- Page 5 Installation You can mount the multi-sensor to the wall, ceiling or keep your multi-sensor on a bookshelf or table. • Please ensure that the surface is clean and secure. • You can peel off the tape on the back or lock it with screws. 1.
- Page 6 2. You need to pay attention to the distance and range of the sensor when installing. 100˚ 120˚ 2.1m...
- Page 7 Get to Know Your Device LED Indicator Reset Button LED Indicator LED Status What it means Green light flashes once Motion detected Green light keeps flashing Enter network configuration mode Reset Button Reset: Press and hold the reset button for 5 seconds, green light will start flashing, and then the device will automatically enter the network configuration mode.
- Page 8 Configure Network 4.1 To get started, you will need: • A Tuya Zigbee Gateway • A mobile phone with the specified APP installed. 4.2 Adding to the gateway's network 1. Set your gateway to permit joining (see your gateway's manual).
