Summary of Contents for Photonic Universe LUX-PRG

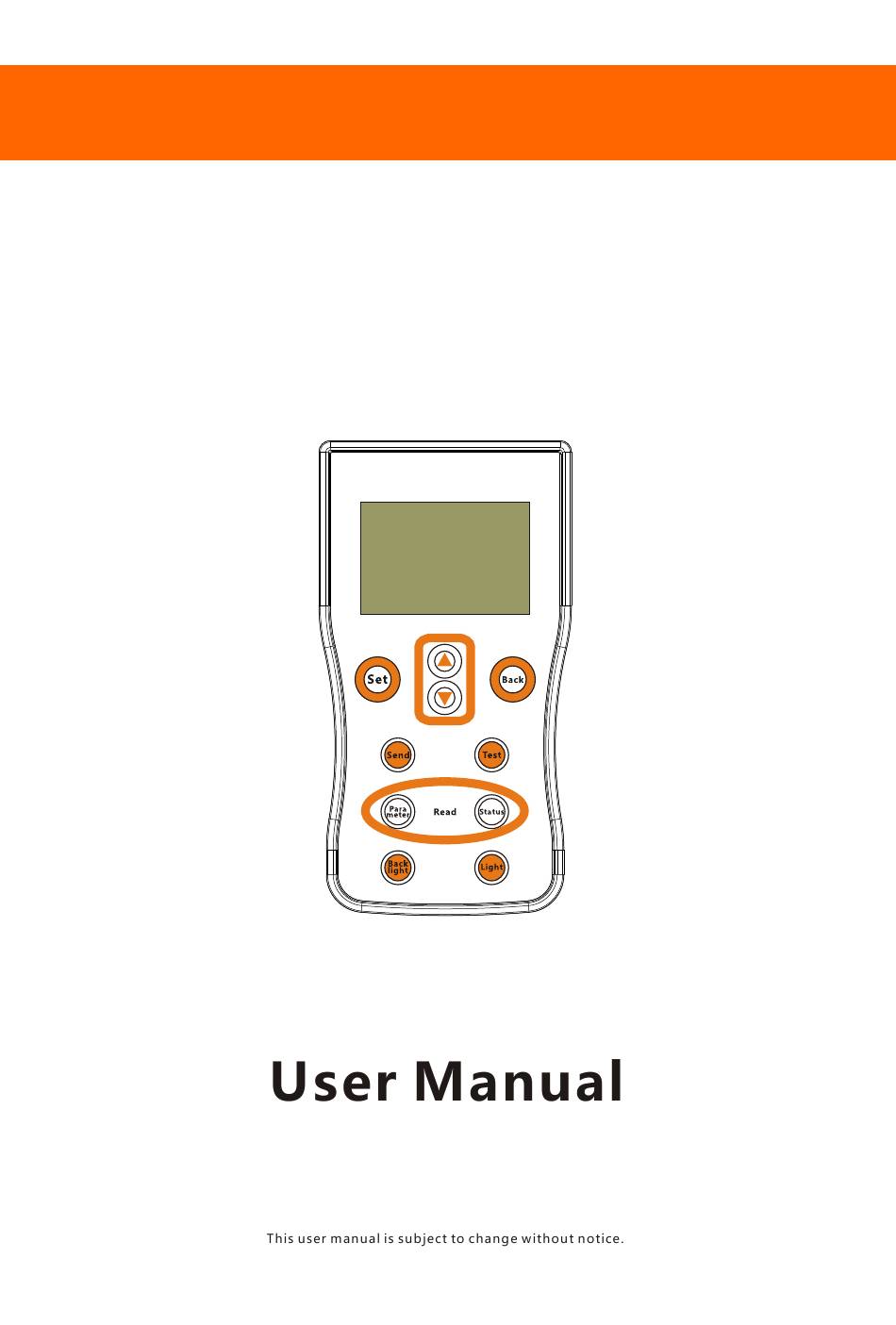

- Page 1 LUX-PRG Remote Programmer...
-
Page 2: Key Elements

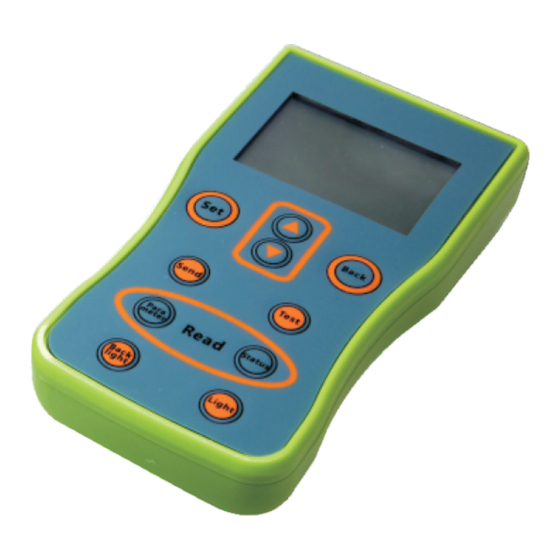

Smart Remote Programmer LUX-PRG User Manual Thank you for choosing the LUX-PRG series infrared remote programmer. This remote programmer allows for reading and changing of the settings for any compatible solar controller: models LUX1012WP, LUX1012WP-LI, LUX1524WP, LUX1524WP-LI. This manual gives important recommendations for use, please familiarise yourself with it before using the remote programmer. -
Page 3: Icon Description
Smart Remote Programmer LUX-PRG User Manual 4. Icon description 5.2 Wake up " or "Back" will wake up 1. Pressing "Set" or " 4.1 Battery capacity indicator the remote programmer. 2. Pressing "Backlight" key will wake up the remote programmer and also turn on the LCD backlight 3. -
Page 4: Running Status
Smart Remote Programmer LUX-PRG User Manual 6. Running status 5.7 Read When you press the "Status" key, the first line of the 5.7.1 Read parameters LCD displays the system status, including charging, Aim at the solar charge controller and press the discharging or converting between charging and "Parameter"... - Page 5 Smart Remote Programmer LUX-PRG User Manual The first working time for load Dimming of the first working time The second working time for load Dimming of the second working time Third working time for load Dimming of the third working time...
- Page 6 Smart Remote Programmer LUX-PRG User Manual 8.1 Standard (24H) For controllers with "Standard" settings, if "Time1" is set to "24H" or "7.0H" and sent to the controller successfully, the controller's load will be constantly on. For further details, please refer to the controller's instruction manual.
