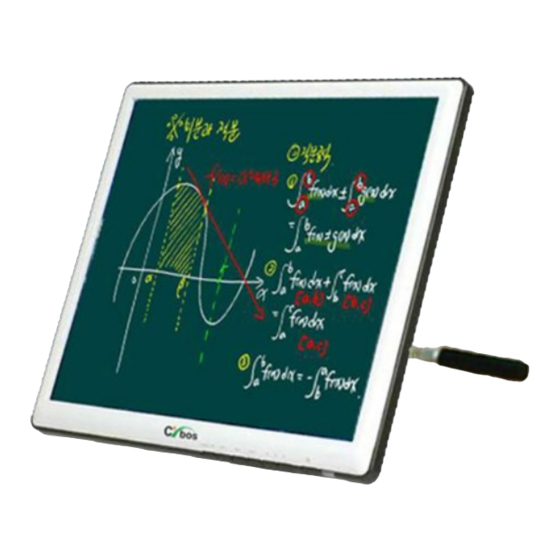

Summary of Contents for AHA LTM-192W
- Page 1 All manuals and user guides at all-guides.com LCD Tablet Monitor User’s Manual 19 Inch wide 20 Inch wide 22 Inch wide...
- Page 2 All manuals and user guides at all-guides.com IMPORTANT SAFEGUARDS 1. Read all of these instructions. 12. For added protection for this monitor during a lightning storm, 2. Save these instructions for later use. or when it is left unattended and unused for long periods of time, 3.
- Page 3 All manuals and user guides at all-guides.com FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
All manuals and user guides at all-guides.com CONTENTS Introduction Product Features ..............5 Package Overview..............6 Installation Display Overview ............... 7 Connecting the Display ............. 8 Operation & Adjustment Front Panel Controls..............9 KEY PROCESS ................10 HOT KEY ..................11 ADJUSTMENT PROCEDURE ............ -
Page 5: Introduction
All manuals and user guides at all-guides.com Introduction PRODUCT FEATURES • The monitor is designed for Pen-Input. • The convenient and user-friendly on-screen display allows for easy and accurate adjustments of screen size, position and screen color. • The monitor complies with the VESA Display Data Channel (DDC) specification for Plug and Play compatibility. -
Page 6: Package Overview
All manuals and user guides at all-guides.com Package Overview This manual explains how to correctly install, operate and get the best performance from your monitor. Please read this user’s guide carefully before installing your monitor, then keep it near your monitor for quick reference. User’s Manual Adaptor LCD Tablet Monitor... -
Page 7: Installation
All manuals and user guides at all-guides.com Installation Display Overview • Front View LCD Display Panel Controls • Rear View Stand... -
Page 8: Connecting The Display
All manuals and user guides at all-guides.com Connecting the Display To setup this display, please refer to the following figure and procedures. ⑤ ③ VGA ④ Audio-in ① Power ② DVI-D (option) (option) 1. Be sure all equipments are off. 2. -
Page 9: Front Panel Controls
All manuals and user guides at all-guides.com OPERATIION & ADJJUSTMENT Front Panel Controls 1. POWER Indicator 2. POWER Shows both normal operation Switches the monitor on and off. and power management status with power indicator light.. Moves cursor to the right or Moves cursor to the left or high low window in the OSD window in the OSD window and... -
Page 10: Key Process
All manuals and user guides at all-guides.com KEY PROCESS BRIGHTNESS SELECT COLOR PICTURE CONTRAST FUNCTION COLOR TEMP. OSD MENU MENU LANGUAGE SOUND SELECT MENU MENU OSD OFF BRIGHTNESS * Sound icon will be displayed only for Built in speaker model. CONTRAST COLOR TEMP. -
Page 11: Hot Key
All manuals and user guides at all-guides.com HOT KEY ◈ When there is no OSD, if you press this AUTO button, you can use the best display performance fit for a current mode. When there is no OSD, if you press this ◈... -
Page 12: Adjustment Procedure
All manuals and user guides at all-guides.com ADJUSTMENT PROCEDURE Perform the Auto tracking Is the H.SIZE proper? Adjust the CLOCK control. Perform the AUTO Is the noise displayed on POSITION. the screen? Adjust the CLOCK FINE until the screen is cleared. -
Page 13: Osd Functions With Using Pc
All manuals and user guides at all-guides.com OSD FUNCTIONS WITH USING PC BRIGHTNESS Adjust the brightness of image.. Adjust the contrast of image, the difference between light and dark areas on the screen. CONTRAST Choose different preset color temperatures or set your COLOR TEMP. - Page 14 All manuals and user guides at all-guides.com OSD H & Adjust the OSD position horizontally (left or right) and vertically (up or down). V POSITION OSD TIME Adjust the display OSD Menu. TRANSLUCENT Adjust the OSD. Transparency. LANGUAGE Select language for OSD Turn the audio sound on or off.
-
Page 15: Self Diagnosis
All manuals and user guides at all-guides.com SELF DIAGNOSIS If there is no image, the Self Diagnosis screen will be displayed. Self Diagnosis function checks if the status of the monitor screen is No Signal, Out of range or None support. No Signal screen is displayed when the DSub signal connector is connected but the status of the monitor is on DPMS mode. -
Page 16: Specifications
All manuals and user guides at all-guides.com SPECIFICATIONS 19 INCH Size 19-inch Panel Type TFT Active Matrix Pixel Pitch 0.2835 × 0.2835 mm Viewing Angle 80° (Right/Lef/UP/DOWN) Panel Contrast Ratio 1000 : 1 contrast ratio Brightness 300cd/m2 brightness 5msec Response Time Color Filter RGB vertical stripe Horizontal... - Page 17 All manuals and user guides at all-guides.com SPECIFICATIONS 20 INCH Size 20-inch(43.2cm) diagonal Panel Type TFT Active Matrix Pixel Pitch 0.258 mm×0.258 mm Viewing Angle 178° (Right/Lef/UP/DOWN) Panel Contrast Ratio 1,000 : 1 contrast ratio Brightness 300cd/m2 brightness Response Time 16msec Color Filter RGB vertical stripe...
- Page 18 All manuals and user guides at all-guides.com SPECIFICATIONS 22 INCH Size 22-inch(55.88cm) diagonal Panel Type TFT Active Matrix Pixel Pitch 0.282×0.282 mm Viewing Angle 160° (Right/Lef/UP/DOWN) Panel Contrast Ratio 1,000 : 1 contrast ratio Brightness 300cd/m2 brightness Response Time 5msec Color Filter RGB vertical stripe Horizontal...
- Page 19 All manuals and user guides at all-guides.com •The specification can be changed without any prior notice to improve the quality of the product. •The LCD panel may have some defective pixels (e.g. slightly light or dark) due to a characteristic of the LCD panel. But there is no defect in your LCD product itself.
-
Page 20: Factory Preset Timings
All manuals and user guides at all-guides.com FACTORY PRESET TIIMIINGS •The LCD Monitor has only Non-interlanced modes without flicker. VESA MODES Resolution Mode H.Freq(KHz) V.Freq(Hz) Remark (dots Xlines) 640 X 480@60Hz 31.5 Non-interlaced 640 X 480@72Hz 37.9 Non-interlaced 640 X 480@75Hz 37.5 Non-interlaced SVGA... -
Page 21: Display Dimensions
All manuals and user guides at all-guides.com Display Dimensions 19INCH Front View Side View Top View... - Page 22 All manuals and user guides at all-guides.com Display Dimensions 20INCH Front View Front View Side View Side View Top View Top View...
- Page 23 All manuals and user guides at all-guides.com Display Dimensions 22INCH Front View Front View Side View Side View Top View Top View...
-
Page 24: Troubleshooting
All manuals and user guides at all-guides.com TROUBLESHOOTIING Check Symptom Picture is jitterd. Adjust Clock to set the screen position and adjust Clock fine until a noise isn’t displayed. No picture. Check if power switch and computer power switch are in the on position. Check if the signal cable is correctly connected to the video card. -
Page 25: Pen-Input Driver&Software Installation
Before your start to install the tablet driver, please be sure the USB cable already connected to the PC and LCD display. 2. Insert “Application software” CD-ROM. 3. Select “AHA USB Tablet Manager”. 4. Click “Next” button to make sure installing this driver 5. Click “Finish” button. - Page 26 All manuals and user guides at all-guides.com 24.Click “Next” button to make sure installing this program 25.Click “Accept” button 26.Click “Next” button 27.Click “Yes” button 28.Click “Install” button 29.Click “Finish” button 30. Restart the system. Pen-Input Setting and Calibration: 1. Open "Control Panel" of the system. 2.
