INTRODUCTION

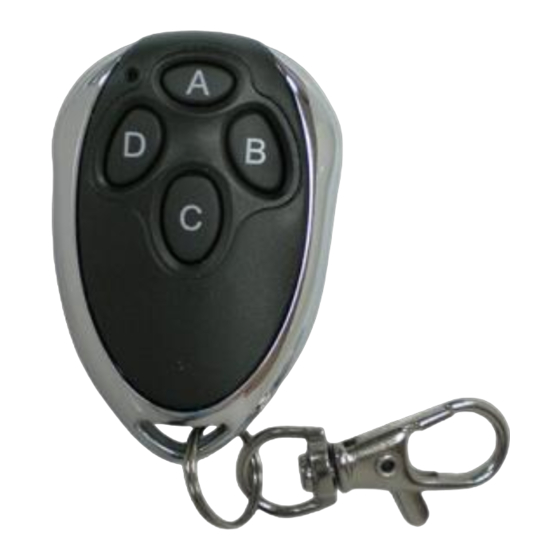

DA-12 is a 4 channel remote control keyfob working on 433MHZ, which is compatible with
the receiver in the DA-2800, DA-2311 and AD-2322 controllers. It has four buttons A, B,
C and D for sending out signals to activate the corresponding four output channels 1, 2, 3
and 4 in the receiver unit.
SPECIFICATIONS
Number of ID Codes : Over 1 Million, Pre-set
Number of Control Channels : 4
a) Channel 1 (Button A) - Activates Output 1 in Receiver
b) Channel 2 (Button B) - Activates Output 2 in Receiver
c) Channel 3 (Button C) - Activates Output 3 in Receiver
d) Channel 4 (Button D) - Activates The Door Chime in Receiver
Operating Frequency : 433 MHZ
Control Distance : 50 Meters Approx. in Open Space
Operation Voltage : 12V Alkaline Battery, Type 27A (Not included)
Weight : 32g
Specifications are subject to change for modifications without notice.
THE ASSEMBLY
LED INDICATOR
DA-12 RF REMOTE CONTROL KEYFOB
FOUR
CONTROL
BUTTONS
FRONT
FRONT BOX
COVER
THREE
FIXING
SCREWS
FCC ID Label & Location
CIRCUIT
BOARD
BACK BOX COVER
BATTERY
CIRCUIT BOARD
12V 27A
BACK
&
