Summary of Contents for MSV NVR32

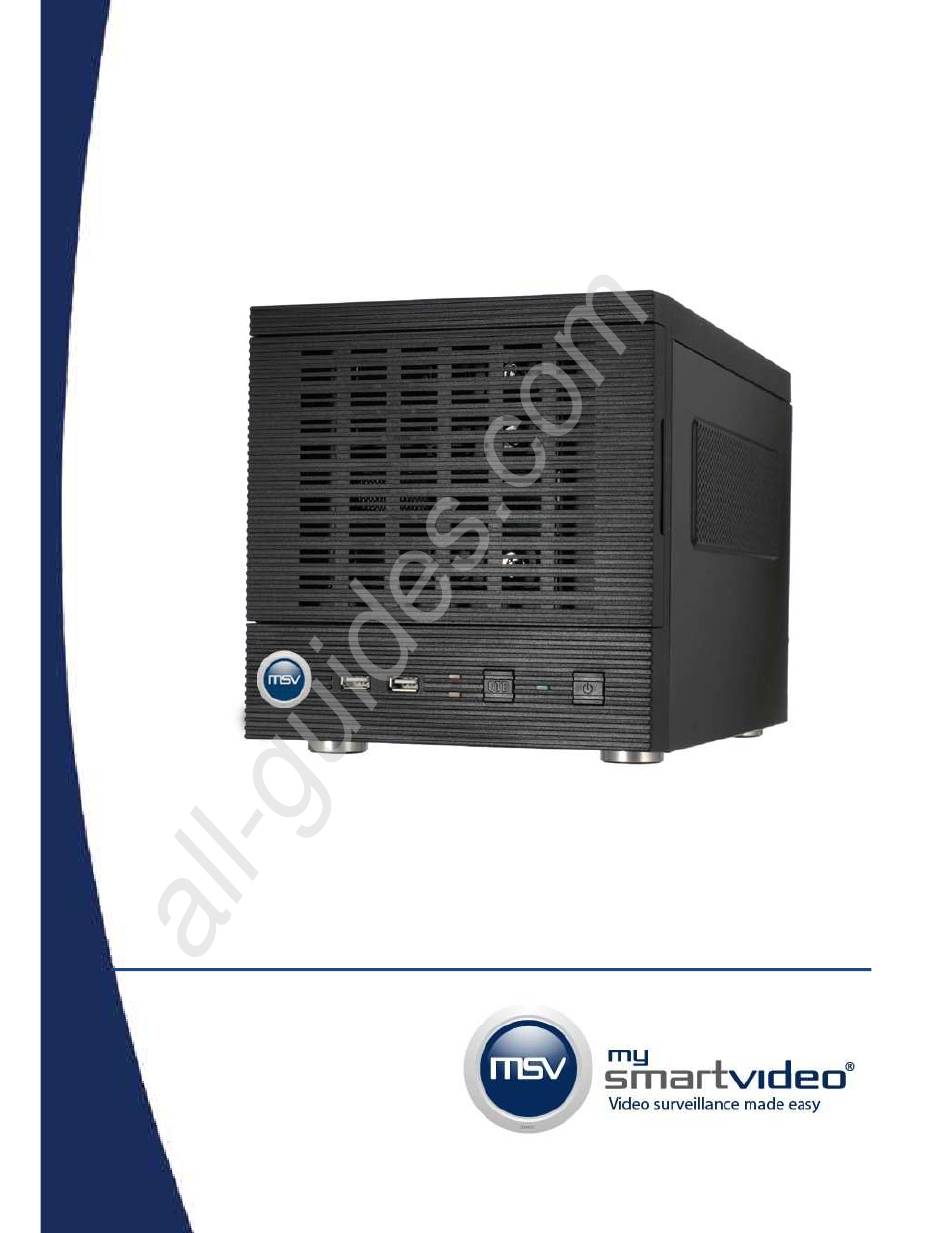

- Page 1 All manuals and user guides at all-guides.com www.mysmartvideo.com MSV-NVR32 Pro Network Recorder Quick Installation Guide...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide Table of Contents Preliminary ................3 System Overview ..............5 Front View ................... 5 Rear View ..................5 LED Definition ................6 Installation ................7 HDD Installation ................7 Connect to the NVR ..............10... -
Page 3: Preliminary
Guide tallation Guide Preliminary System Requirements The following are minimum system requirements for the system to operate MSV- Network Video Recorder: Operating System Microsoft® Windows® 2000 Professional, Windows® XP Professional (32 bit) or Windows® Server 2003 (32 bit) Browser Microsoft Internet Explorer 7 or above Minimum Intel®... - Page 4 All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide Product Description The MSV-NVR is designed for use within a surveillance system, and performs recordings and playbacks pictures from network cameras in the system. It is a 32-channel/64-channel network video recorder (NVR) for enterprise applications.
-
Page 5: System Overview
All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide tallation Guide tallation Guide tallation Guide System Overview Front View Rear View... -
Page 6: Led Definition
All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide LED Definition... -
Page 7: Installation
All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide tallation Guide tallation Guide tallation Guide Installation HDD Installation Release the HDD tray by pulling the lock to the right. - Page 8 All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide Pull the HDD tray out of the case. Place the HDD in the tray and Put the HDD tray back to the case. Secure it with the screws at...
- Page 9 All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide tallation Guide tallation Guide tallation Guide Push the tray door back to the case to secure it.
-
Page 10: Connect To The Nvr
All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide Connect to the NVR There are various ways you can connect to the NVR and below are the suggested methods for different network setup: • The NVR is placed in a network with a DHCP server: Connect to the NVR by using “NVR Search”... - Page 11 All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide tallation Guide tallation Guide tallation Guide To begin, launch the “NVR Search” utility from the CD and proceed with the installation:...
- Page 12 All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide Once the installation is complete, check the “Launch the Search AP” option and click “Finish”. The search should start automatically and its status should be dis- played.
- Page 13 All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide tallation Guide tallation Guide tallation Guide The NVR should be located and its IP address should be displayed. Double-click on an NVR and the search program should automatically access the NVR’s web administration page from your default browser.
- Page 14 All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide You should be prompted for the NVR’s username and password. Enter its default username “admin” and password “admin” and then click”OK” to enter the system...
-
Page 15: Access The Nvr With Its Default Ip Address
All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide tallation Guide tallation Guide tallation Guide Access the NVR with its default IP address The NVR comes with a pre-configured static IP “192.168.101.50”. However, it is only used when there is no DHCP server presented in the network. -
Page 16: Set Up Password
All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide Again, you should be prompted for the username and password. Enter its default username “admin” and password “admin” and then click”OK” to enter the system Set up Password... -
Page 17: Camera Installation
All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide tallation Guide tallation Guide tallation Guide The default login username and password is admin/admin. To change the password of the admin account, go to “Setup” --> “System Con- figurations” --> “User Account”, click on the “admin” account in the account list then press the “edit”... - Page 18 All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide You should be prompted to install Active Control component in order for the search to function properly. Go ahead and click “Install” After that, the search should begin and its status should be displayed:...
- Page 19 All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide tallation Guide tallation Guide tallation Guide Found cameras should be listed and simply select a camera from the list and press “Configure”...
- Page 20 All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide Its corresponding information should be displayed in the “Camera Information” section. Enter its username and password and select the channel ID and name the camera. Click on “Detect” to establish connection between the recorder and the camera.
-
Page 21: Add A Camera Manually
All manuals and user guides at all-guides.com MSV-NVR32CH Quick Installation Guide tallation Guide tallation Guide tallation Guide Add a camera manually Simply follow the instruction described above but instead of using the “Search” function, enter the camera’s IP address and credential in the “Camera Information”...
