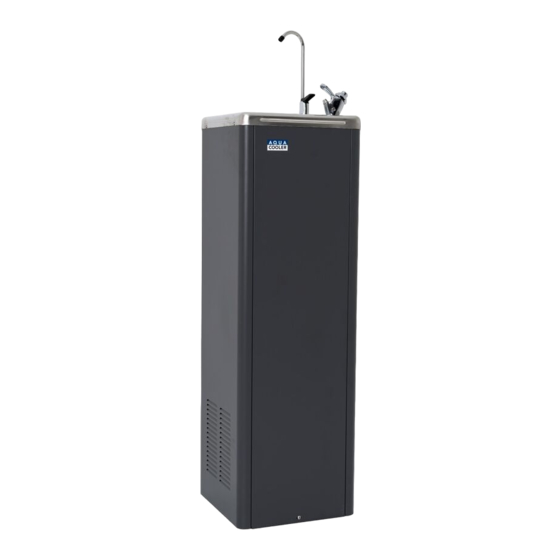

M
SERIES
Usage and Care
Manual
Models: M2, M2F, M3, M3F, M4, M4F, M4SS, M4FSS, M5,
M5F, M5SS, M5FSS, M10, M10F, M10SS, M10FSS, M11,
M11F, M11SS, and M11FSS.
Your Partner in Cool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aqua Cooler M Series

  • Page 1 SERIES Usage and Care Manual Models: M2, M2F, M3, M3F, M4, M4F, M4SS, M4FSS, M5, M5F, M5SS, M5FSS, M10, M10F, M10SS, M10FSS, M11, M11F, M11SS, and M11FSS. Your Partner in Cool.
  • Page 2: Product Diagram

    PRODUCT DIAGRAM GLASS FILLER BUBBLER FILTER IF APPLICABLE DRAIN OUTLET MAINS WATER INLET COOLING TANK DRAIN AIR FLOW TECHNICAL SPECIFICATIONS Water Reservoir Refrigeration Uses R134A refrigerant 1/2” Male B.S.P Water Connections Water Inlet Drain Outlet 40 mm Female P.V.C Socket Thermostat Control The thermostat is factory set.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock and injury to persons or property. Read all instructions before using any appliance. Keep combustible material such as furniture, This appliance must be placed on an even and bedding, pillows, clothes and/or papers away flat surface.
  • Page 4: Installation

    The installation must be in accordance with AS/NZS 3500.1 and AS/NZS 3500.2. Pipe jointing is a trade skill and Aqua Cooler recommends this process is performed by qualified personnel only. Ensure proper ventilation by allowing 75 mm clearance on each side of the fountain.
  • Page 5: Drain Installation

    Apply Watermark certificated Type N solvent cement on the end of the Watermarked AS/NZS 1260 40mm PVC pipe and insert into the Aqua Cooler drain outlet fitting. Firstly to the inside of the M Series drain fitting and then to the external surface of the pipe end (marked area). (See Figure.1) # Please ensure the solvent cement is applied in full even coats to all applicable surfaces.
  • Page 6: Removing From Service

    The fan motor on this unit seldom needs oiling. If required, a few drops of SAE 10 oil should be used. • Aqua Cooler recommends the water fountain is cleaned every month, ensuring there is no blockage in the condenser or in the back of the unit. Please remove all potentially harmful factors to prevent any scratch or damage to the unit.
  • Page 7 MARKS Spec No. WMTS 105:2016 SAI GLOBAL WMK26317 (Lic. No.) The appliance is comply with applicable ACMA regulatory arrangements (Regulatory Compliance Mark) and WaterMark WMTS 105:2016.
  • Page 8: Exploded Diagram

    EXPLODED DIAGRAM Your Partner in Cool.
  • Page 9: Spare Part List

    SPARE PART LIST Description Code Description Code Glass filler (optional) SPM1 Condenser SPM11 Bubbler valve SPM2 Power cord SPM12 Stainless-steel lid SPM3 Rubber feet SPM13 Waste drain gasket SPM4 Compressor SPM14 Bubbler connection SPM5 Condenser bracket SPM15 Waste drain elbow SPM6 Fan blade SPM16...
  • Page 10 It excludes compressor relays, overloads and all other components of this appliance. This extended warranty does not include service, repair or labour costs or any pickup and/or freight charges. Aqua Cooler at its sole discretion may replace the cooler with a new or refurbished cooler of a similar age.
  • Page 11 Your Partner in Cool.
  • Page 12 Your Partner in Cool. Phone Numbers Address Internet Sales: 1300 278 226 U14, 2-12 Knobel Court www.aquacooler.com.au Service: 1800 278 226 Shailer Park QLD 4128 info@aquacooler.com.au m0007 This document is available digitally on our website at www.aquacooler.com.au/doc/m0007...
