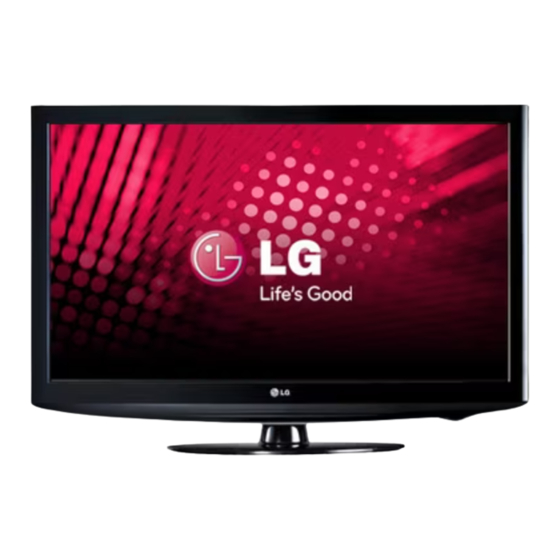

LG 32LH20FD Service Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. LCD TV
  5. 32LH20FD
  6. Service manual

LG 32LH20FD Service Manual

Chassis : lc91a
Hide thumbs

Advertisement

Quick Links

Download this manual
LCD TV
SERVICE MANUAL
CHASSIS : LC91A
MODEL : 32LH20FD
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL60021624 (0904-REV00)
North/Latin America
Europe/Africa
Asia/Oceania
32LH20FD-CA
Internal Use Only
http://aic.lgservice.com
http://eic.lgservice.com
http://biz.lgservice.com
Printed in Korea

Advertisement

loading
Need help?

Need help?

Do you have a question about the 32LH20FD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG 32LH20FD

Summary of Contents for LG 32LH20FD

  • Page 1 Internal Use Only North/Latin America http://aic.lgservice.com Europe/Africa http://eic.lgservice.com Asia/Oceania http://biz.lgservice.com LCD TV SERVICE MANUAL CHASSIS : LC91A MODEL : 32LH20FD 32LH20FD-CA CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. P/NO : MFL60021624 (0904-REV00) Printed in Korea...

  • Page 2: Table Of Contents

    PRODUCT SAFETY ..................3 SPECIFICATION ..................6 ADJUSTMENT INSTRUCTION ..............9 TROUBLE SHOOTING ................13 BLOCK DIAGRAM...................16 EXPLODED VIEW .................. 17 SVC. SHEET ....................Copyright ©2009 LG Electronics. Inc. All right reserved. - 2 - LGE Internal Use Only Only for training and service purposes...

  • Page 3: Product Safety

    An other abnormality exists that must be corrected before the receiver is returned to the customer. Copyright ©2009 LG Electronics. Inc. All right reserved. - 3 - LGE Internal Use Only Only for training and service purposes...
  • Page 4 Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the Copyright ©2009 LG Electronics. Inc. All right reserved. - 4 - LGE Internal Use Only...
  • Page 5 CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures. Copyright ©2009 LG Electronics. Inc. All right reserved. - 5 - LGE Internal Use Only Only for training and service purposes...

  • Page 6: Specification

    760.0 (H) x 450.0 (V) x 48.0 (D) With inverter Pixel Pitch 0.36375mm x 0.36375mm Back Light EEFL Display Colors 1.06Billion(26”~47”),16.7M (22”) Coating 3H, AG Copyright ©2009 LG Electronics. Inc. All right reserved. - 6 - LGE Internal Use Only Only for training and service purposes...
  • Page 7 1920x1080 33.75 60.00 HDTV 1080i 1920x1080 33.72 59.94 HDTV 1080i 1920x1080 56.250 HDTV 1080p 1920x1080 67.43/67.5 59.94/60 HDTV 1080p Copyright ©2009 LG Electronics. Inc. All right reserved. - 7 - LGE Internal Use Only Only for training and service purposes...
  • Page 8 WXGA HDCP 1360*768 47.72 59.8 84.75 WXGA HDCP 1280*1024 63.595 60.0 108.875 SXGA HDCP 1920*1080 67.5 148.5 WUXGA HDCP Copyright ©2009 LG Electronics. Inc. All right reserved. - 8 - LGE Internal Use Only Only for training and service purposes...

  • Page 9: Adjustment Instruction

    If “Error” is displayed, Check connection between computer, jig, and set. Please Check the Speed : To use speed between from 200KHz to 400KHz Copyright ©2009 LG Electronics. Inc. All right reserved. - 9 - LGE Internal Use Only Only for training and service purposes...
  • Page 10 4) RGB (PC : 1024 x 768 @ 60hz) 5) HDMI 1/2/3 6) PC Audio In * Display and Sound check is executed by remote control. Copyright ©2009 LG Electronics. Inc. All right reserved. - 10 - LGE Internal Use Only Only for training and service purposes...
  • Page 11 • Check whether written EDID data is correct or not. * For SVC main Ass’y, EDID have to be downloaded to Insert Process in advance. Copyright ©2009 LG Electronics. Inc. All right reserved. - 11 - LGE Internal Use Only...
  • Page 12 ⓔ Checksum: Changeable by total EDID data. ⓕ Vendor Specific(HDMI) INPUT MODEL NAME(HEX) HDMI1 67030C001000B82D HDMI2 67030C002000B82D HDMI3 67030C003000B82D Copyright ©2009 LG Electronics. Inc. All right reserved. - 12 - LGE Internal Use Only Only for training and service purposes...

  • Page 13: Troubleshooting

    IC(IC100) have some troubles. After checking thoroughly all path once again, You should decide to replace Main Board or not. Copyright ©2009 LG Electronics. Inc. All right reserved. - 13 - LGE Internal Use Only Only for training and service purposes...
  • Page 14 IC(IC100) have some troubles. After checking thoroughly all path once again, You should decide to replace Main Board or not. Copyright ©2009 LG Electronics. Inc. All right reserved. - 14 - LGE Internal Use Only Only for training and service purposes...
  • Page 15 (IC100) have some troubles. After checking thoroughly all path once again, You should decide to replace Main Board or not. Copyright ©2009 LG Electronics. Inc. All right reserved. - 15 - LGE Internal Use Only Only for training and service purposes...

  • Page 16: Block Diagram

    BLOCK DIAGRAM Copyright ©2009 LG Electronics. Inc. All right reserved. - 16 - LGE Internal Use Only Only for training and service purposes...

  • Page 17: Exploded View

    X-RADIATION, Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. Copyright LG Electronics. Inc. All right reserved. - 17 - LGE Internal Use Only Only for training and service purposes...
  • Page 18 Copyright © 2009 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
  • Page 19 AUDIO OUT LVDS OUT AUDIO IN Copyright © 2009 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
  • Page 20 Copyright © 2009 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
  • Page 21 Fiber Optic USB DOWN STREAM Copyright © 2009 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
  • Page 22 Copyright © 2009 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
  • Page 23 Copyright © 2009 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
  • Page 24 Copyright © 2009 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
  • Page 25 Copyright © 2009 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
  • Page 26 Copyright © 2009 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
  • Page 27 ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC. EAX56916201 2008.09.23 CONTROL Copyright © 2009 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
