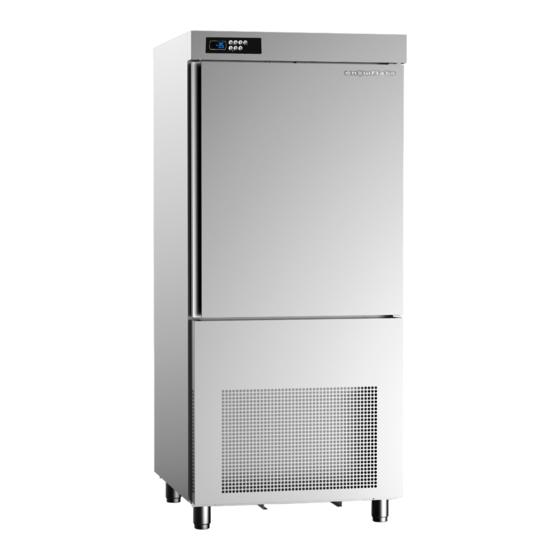

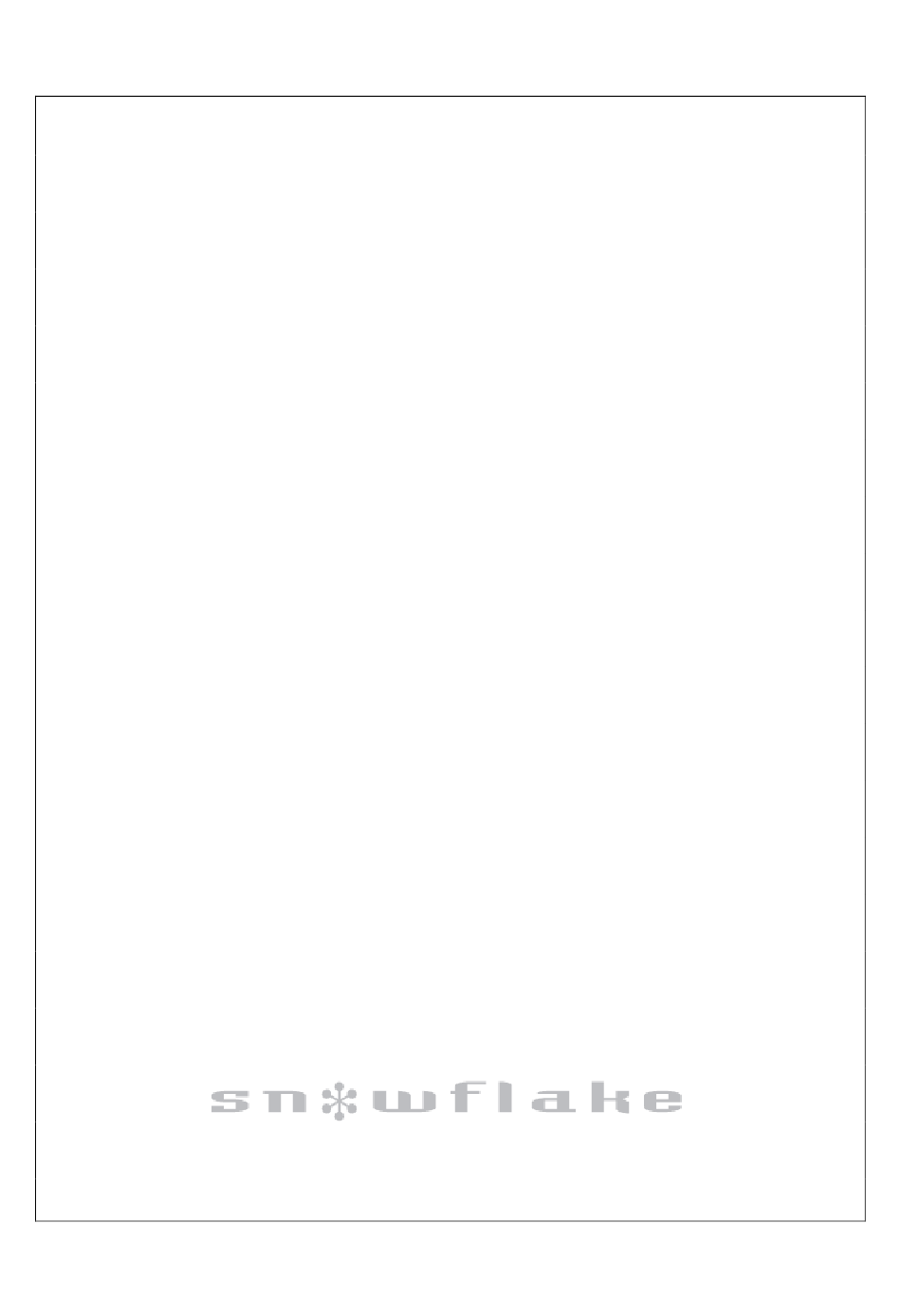

- Page 1 SNOWFLAKE SBU 15 / 20 / 40 Service manual 765042231 Rev.000...
-
Page 2: Table Of Contents
INDEX GENERAL INSTRUCTIONS ON DELIVERY ............... 4 GENERAL WARNINGS .......................... 4 LIST OF REGUALATION REFERENCES ...................... 4 TRANSPORTATION AND HANDLING ...................... 4 UNPACKING .............................. 5 GENERAL SAFETY WARNINGS ........................ 5 INSTALLATION ...................... 6 PLATE DATA .............................. 6 MAX ROOM TEMPERATURE ........................ 6 POSITIONING .............................. 7 DIMENSIONS .................................. 8 TECHNICAL DATA ................................ 9 WIRING .............................. 1 0 CONDENSATE DRAIN ... - Page 3 MAINTENANCE ...................... 29 MAINTENANCE AND CLEANING ......................... 2 9 CLEANING THE CABINET .............................. 29 CLEANING THE AIR CONDENSER ............................ 30 STAINLESS‐STEEL MAINTENANCE ........................... 30 DISCONTINUED USE ............................... 31 EXTRAORDINARY MAINTENANCE ...................... 3 1 MAINTENANCE OF PANEL BOARD .......................... 31 CONDENSING SYSTEM MAINTENANCE .......................... 32 ENERGY CONSUMPTION CHART ........................ 3 3 WIRING DIAGRAM PLATE .......................... 3 4 EC declaration of conformity ........................ 3 7 Annotate the emergency assistance number of specialised maintenance personnel. Name and Surname Address Tel./fax no.
-
Page 4: General Instructions On Delivery
GENERAL INSTRUCTIONS ON DELIVERY GENERAL WARNINGS We assure you have made the best choice in purchasing our products and hope you will be fully satisfied with our their performance. To this purpose, we recommend you strictly comply with the instructions and regulations contained in this handbook.. -
Page 5: Unpacking
UNPACKING Installation must be carried out by authorised and specialised personnel. After removing the packaging, ensure the integrity of the equipment and verify that all the parts or components are present and that the characteristics and state correspond to the specifications of the your order. If not, please inform the retailer immediately. -
Page 6: Installation
INSTALLATION PLATE DATA Make sure the technical wiring specifications comply with the ratings (i.e., V, kW, Hz, no. phases and mains power). Please quote the product's serial number (shown on the rating plate) on any enquiry to the Manufacturer. List of rates shown on the rating plate: F) Fuse current 1) Model G) Coolant type... -
Page 7: Positioning
POSITIONING The appliance must be installed and tested in full compliance with accident-prevention regulations contained in national law and current guidelines. Installers are to comply with any current local regulations. Place the appliance onto the required working site. Avoid locations with exposure to direct sunlight. ... -
Page 8: Dimensions
DIMENSIONS SBU 15 HL SBU 20 HL SBU 20 HT SBU 40 HT 765042231 Rev.000... -
Page 9: Technical Data
TECHNICAL DATA Please refer to the technical data of your own appliance (see attached sheet). Model SBU15HL SBU20HL SBU20HT SBU40HT Gross weight Net weight Dimensions 745x700x842 745x720x820 745x720x900 800x830x1850 Capacity Mass /cycle (+70°C ÷ +3°C) [kg] Mass /cycle (+70°C ÷ -18°C) [kg] Internal volume [l] Rails GN1/1... -
Page 10: Wiring
WIRING An omnipolar switch is to be installed before the appliance, in compliance with the current regulations applied in the country where the appliance is installed. The electrical connection is carried out from the rear part. The electrical mains cables must be correctly sized and selected based on the installation conditions. -
Page 11: Control And Safety Systems
CONTROL AND SAFETY SYSTEMS The following information concerns skilled staff only. Door micro-switch: Prevents the appliance from working when the door is open Overall protection fuses: Protect the whole power circuit from and short-circuits and overloads Compressor thermal relay: Operates in case of an overload or working failures ... -
Page 12: Disposal
DISPOSAL WASTE STORAGE At the end of the product life, avoid release to the environment. The doors should be removed before disposal. Temporary storage of special waste is permitted while waiting for disposal by treatment and/or final collection. Dispose of special waste in accordance with the laws in force with regard to protection of the environment in the country of the user. -
Page 13: Operation
OPERATION GENERAL DESCRIPTION The blast chiller is a chilling machine capable of cooling the temperature of a freshly cooked product up to +3°C (positive chilling) and up to -18°C (negative chilling), in order to conserve it for a long period of time without altering the organoleptic characteristics. -
Page 14: Machine Loading
MACHINE LOADING Do not pile up foodstuffs to be cooled. Thickness should be lower than 50mm in negative quick cooling and lower than 80mm in positive quick cooling. 0.5 - 2 cm. Make sure air circulation is not hampered between food trays. The grid-holding frame (included in those models which include trolleys) is to be located at the center of the cabinet. -
Page 15: Temperatures
TEMPERATURES Do not leave the cooked products that are to be chilled/frozen at room temperature. Avoid humidity losses, which will be detrimental to the conserved fragrance of the product. We recommend beginning the chilling/freezing programme as soon as the preparation or cooking phase has ended, being careful to insert the product into the equipment at a temperature no lower than +70°C. -
Page 16: Control Panel
CONTROL PANEL The illustration shows the equipment control panel, while the list indicates the description and functionality of the individual commands. HARD CHILL FREEZE STANDBY/ON KEY With the card on standby: • hold the button down for 1 sec to switch the tab page on With the card on stop and the cycle selected: •... - Page 17 POSITIVE QUICK COOLING LED It is on during positive blast chilling and blinking during selection NEGATIVE QUICK COOLING LED It is on during negative blast chilling and blinking during selection HARD QUICK COOLING LED It is on during hard chilling, blinking during selection, and on when the HARD function is not active CORE PROBE LED...
-
Page 18: Programme
PROGRAMME CORE PROBE POSITIVE SOFT QUICK COOLING CYCLE: cycle suitable for cooling foodstuffs with thickness lower than 4[cm] using a room temperature of about 0[°C]. The cycle is controlled by the core probe. CORE PROBE POSITIVE HARD QUICK COOLING CYCLE: cycle suitable for cooling foodstuffs with thickness exceeding 4[cm] using a room temperature ranging from -30[°C] to -5[°C]. -
Page 19: Pre-Cooling Cycle
PRE-COOLING CYCLE It is advisable to run a cooling cycle prior to selecting any cooling cycle. Press for 1 sec to run the pre-cooling cycle CHILL CHILL icon blinks The pre-cooling cycle continues once the temperature of -25 °C is reached in the chamber, the remains steady, and the buzzer is activated for 1 sec. -
Page 20: Core Probe Negative Soft Quick Cooling Cycle
Press the key to start the cycle icons remain steady: the test is run to verify the insertion of the core probe The cycle is run when the test is completed successfully; otherwise, a time- controlled positive hard chilling cycle will start. The icons remain on CORE PROBE NEGATIVE SOFT QUICK COOLING CYCLE WARNING: insert the needle probe correctly to run a temperature-controlled cycle. -
Page 21: Time-Controlled Positive Soft Quick Cooling Cycle
Press the key to start the cycle icons remain steady: the test is run to verify the insertion of the core probe The cycle is run when the test is completed successfully; otherwise, a time- controlled negative soft chilling cycle will start. The , and icons remain on... -
Page 22: Time-Controlled Negative Soft Quick Cooling Cycle
As the needle probe is not inserted, the test is not completed successfully and the time-controlled cycle is launched HARD icons remain steady The display shows the remaining time of the cycle Press to change the value Use the keys to change the value TIME-CONTROLLED NEGATIVE SOFT QUICK COOLING CYCLE WARNING: Do not insert the needle probe to run a time-controlled cycle. -
Page 23: Defrosting
As the needle probe is not inserted, the test is not completed successfully and the time-controlled cycle is launched icons remain steady The display shows the remaining time of the cycle Press to change the value Use the keys to change the value DEFROSTING Press for 4 seconds to run the defrosting cycle... -
Page 24: Changing Parameters
CHANGING PARAMETERS ATTENZIONE: nel caso di utilizzo in utenza di questa funzione, contattare il costruttore. Press the keys for 4 seconds to gain access to the mode for programming parameters The display shows “PA” Press the key to gain access to service parameters CHILL CHILL The display shows the value “0”... -
Page 25: Alarms And Fault Analysis
ALARMS AND FAULT ANALYSIS If the fault is not corrected by following the above instructions ask for skilled assistance and avoid carrying out any other operations, especially on the electricals. When informing the servicing company of the fault, state 1 and 5 numbers. SIGNALS MEANING Positive quick cooling led... -
Page 26: Indications
Defrost LED if it is lit, the defrost will be running if it flashes, the dripping will be running Pre-cooling LED if it is lit, the pre-cooling process has ended and the blast chiller is ready for inserting the food stuff if it flashes, the pre-cooling process is in progress but the blast chiller is not yet ready for inserting the food stuff... -
Page 27: Alarms
ALARMS CODE MEANING Lower temperature alarm • This alarm code will be displayed if the cabinet temperature does stay more than 10K below the storage set temperature for more than 15 minutes Remedies: • check the cabinet temperature • look at parameters A1 and A2 Effects: •... -
Page 28: Error Codes (Service)
ERROR CODES (SERVICE) CODE MEANING Cabinet probe error Remedies: • look at parameter P0 • check the integrity of the probe • check the connection instrument-probe • check the cabinet temperature Effects: • equipment in “standby”; no cycle can be selected or started •... -
Page 29: Maintenance
MAINTENANCE MAINTENANCE AND CLEANING CLEANING THE CABINET Clean inside the cooling cabinet daily. Both the cabinet and all the internal components have been designed and shaped to allow washing and cleaning all parts easily. Before cleaning, defrost the appliance and remove the internal drain. Disconnect the master switch. -
Page 30: Cleaning The Air Condenser
Hand-wash the probe using lukewarm water and a mild detergent or products with biodegradability higher than 90%. Rinse with water and sanitary solution. Do not use detergents containing solvents (such as trichloroethylene, etc) or abrasive powders ATTENTION: do not use hot water to wash the probe. CLEANING THE AIR CONDENSER The air condenser should be kept clean to ensure the appliance's performance and efficiency, as air should freely circulate inside the appliance. -
Page 31: Discontinued Use
DISCONTINUED USE Should the machine be disconnected over long periods, follow the instructions below to maintain the appliance in good condition: Turn the mains switch OFF. Disconnect the plug. Empty the appliance and clean it in accordance with the instructions given in the chapter "CLEANING". -
Page 32: Condensing System Maintenance
Remove the electrical panel locking screw. Move the electrical panel box along the slide. Mod. …101L Remove the closing panel screws. Unhook the dashboard, pulling it forward. Remove the closing panel. CONDENSING SYSTEM MAINTENANCE Mod. …31… - …51… - …101… To access the condensing system, remove the rear protective grille, undoing the screws. -
Page 33: Energy Consumption Chart
ENERGY CONSUMPTION CHART Energy Consumption Chart SBU 15 H SBU 20 HL SBU 20 HT SBU 40 HT Chilled full load capacity [kg] 15 20 20 42 Cooling temperature [°C] +65 ‐ +10 Time cycle ( chilling ) [min] 120 Energy consumption for chilling [kWh/kg] 0,124 0,089 0,089 0,137 Frozen full load capacity [kg] 8 12 12 25 Freezing temperature [°C] +65 ‐ ‐18 Time cycle ( freezing ) [min] 270 Energy consumption for freezing [kWh/kg] 0,492 0,313 0,313 0,413 Refrigerant name R404A ... -
Page 34: Wiring Diagram Plate
WIRING DIAGRAM PLATE SBU 15 N° DESCRIPTION N° DESCRIPTION COMPRESSOR ELECTRONIC DATA CARD LCD CONDENSER FAN FUSE-HOLDER WITH UNIPOLAR FUSE THERMOSTATED CONDENSER FAN ELECTROVALVE GENERAL TERMINAL BOARD MAGNETIC MICRO-SVWITCH GENERAL TERMINAL BOARD COMPARTMENT PROBE GENERAL TERMINAL BOARD EVAP./DEFROST PROBE EVAPORATOR FUN NEEDLE CORE PROBE DOOR ANTICONDENSING RESISTOR MULTIPOINT NEEDLE CORE PROBE... - Page 35 SBU 20 N° DESCRIPTION N° DESCRIPTION COMPRESSOR ELECTRONIC DATA CARD LCD CONDENSER FAN FUSE-HOLDER WITH UNIPOLAR FUSE THERMOSTATED CONDENSER FAN ELECTROVALVE GENERAL TERMINAL BOARD MAGNETIC MICRO-SVWITCH GENERAL TERMINAL BOARD COMPARTMENT PROBE GENERAL TERMINAL BOARD EVAP./DEFROST PROBE EVAPORATOR FUN NEEDLE CORE PROBE DOOR ANTICONDENSING RESISTOR MULTIPOINT NEEDLE CORE PROBE DEFROST RESISTANCE...
- Page 36 SBU 40 N° DESCRIPTION N° DESCRIPTION COMPRESSOR ELECTRONIC DATA CARD LCD CONDENSER FAN FUSE-HOLDER WITH UNIPOLAR FUSE THERMOSTATED CONDENSER FAN ELECTROVALVE GENERAL TERMINAL BOARD MAGNETIC MICRO-SVWITCH GENERAL TERMINAL BOARD COMPARTMENT PROBE GENERAL TERMINAL BOARD EVAP./DEFROST PROBE EVAPORATOR FUN NEEDLE CORE PROBE DOOR ANTICONDENSING RESISTOR MULTIPOINT NEEDLE CORE PROBE DEFROST RESISTANCE...
-
Page 37: Ec Declaration Of Conformity
EC declaration of conformity 765042231 Rev.000...
