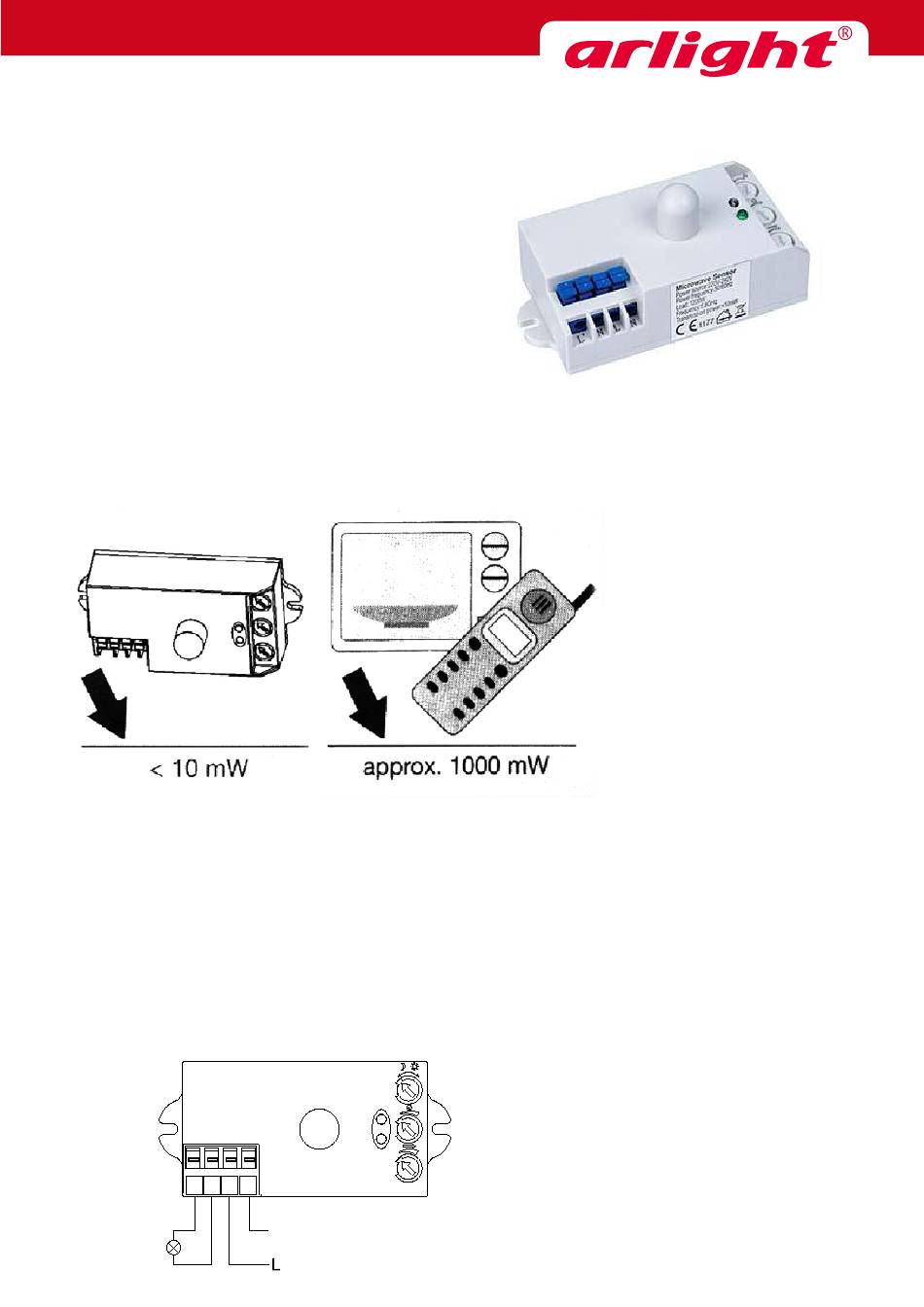

Microwave sensor instruction

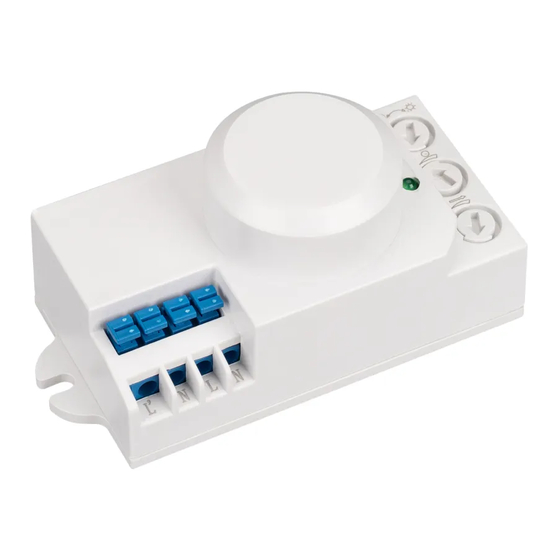

Датчик движения MW-RS09 (угол 360°, 2-10м)
The sensor is an active motion detector, it emits
high-frequency electro-magnetic wave (5.8GHz)
and receives their echo.
The sensor detects the change in echo from even
the slightest movement in its detection zone. A
microprocessor then triggers the "switch light
ON" command.
Detection is possible through doors, panes of
glass or thin walls.
Important: persons or objects moving towards the sensor are detected best !
NOTE: the high-frequency output of this sensor is <10Mw- that is just one 100th of the
transmission power of a mobile phone or the output of a microwave oven.
Technical Parameters
Power supply: 220-240VAC
Installation sit: Indoors, ceiling mounting
HF system: 5.8GHz CW radar, ISM band
Reach:1-8m, radii., adjustable
Time Setting 10sec to 30min
Connection illumination
N L N
L'
LOAD
Power frequency: 50/60Hz
Transmission power: <10mW
Detection angle: 360°
Rated load: 1200W
Power consumption: approx.0.9W
N
~AC
Connect N, L with power;
Connect N, L' with load.
