Table of Contents

Technical data :
Power:
Operating frequency:
Transmission power:
Operating temperature:
Operating range:

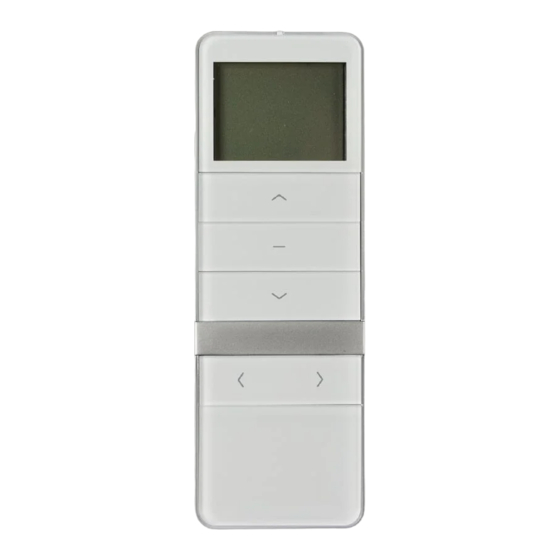

Device characteristics:
DAY OF
THE WEEK
OPERATING
MODE
CHANNEL
NUMBER
CHANNEL +
CHANNEL -

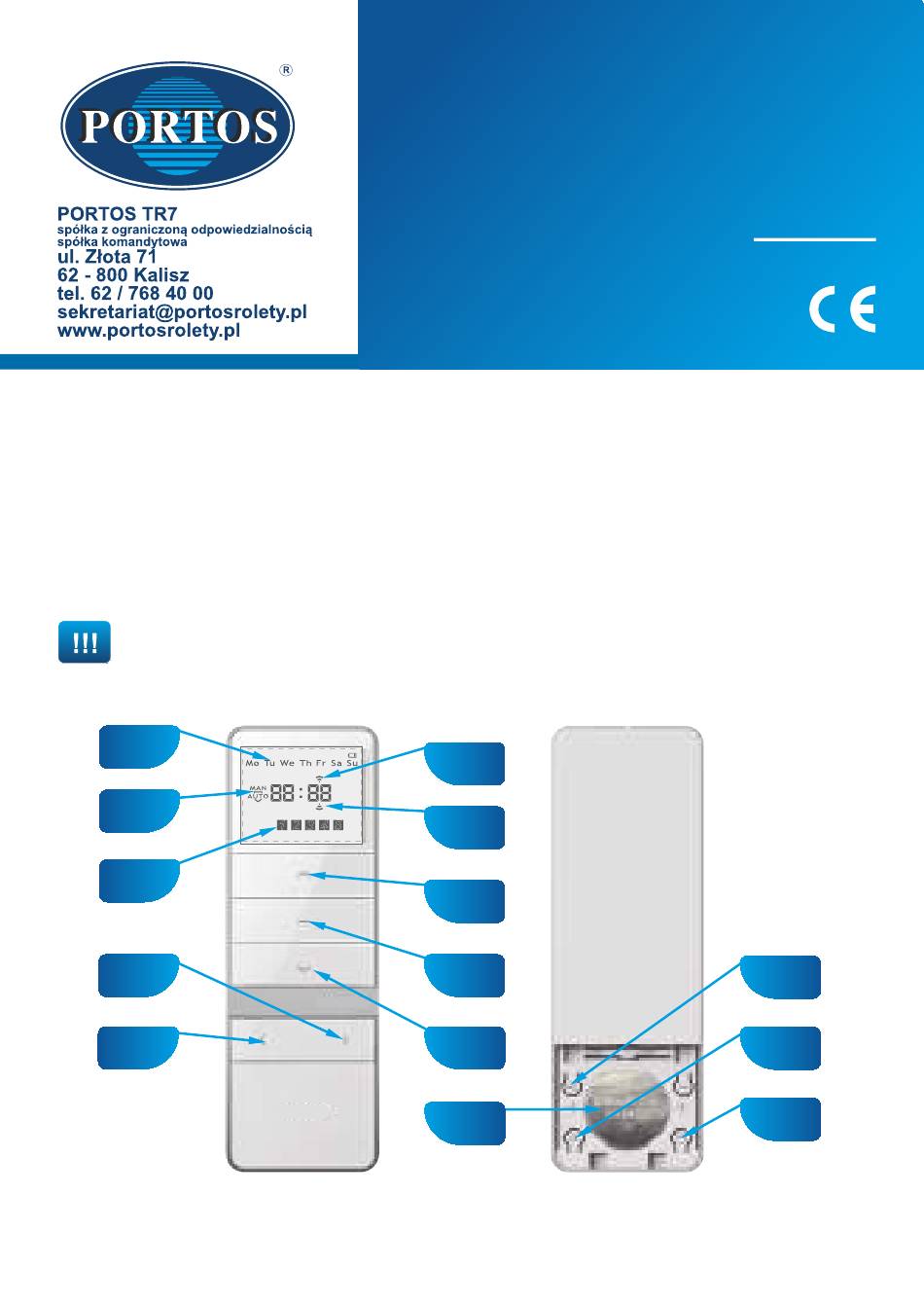

PORTOS drive controlling system
The remotes operate
at 433 MHz
frequency
3V battery ( CR 2430 )
433 MHz
10 mW
from -10 ˚C to +50 ˚C
Determined by architectural
and regulatory factors
LIFTING
SYMBOL
LOWERING
SYMBOL
UP
STOP
DOWN
BATTERY
SLOT
USER MANUAL
DC5T
P2
MODE
CLOCK
DC5
(5 channels)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC5T and is the answer not in the manual?

Questions and answers

Related Manuals for Portos DC5T

Summary of Contents for Portos DC5T

  • Page 1 PORTOS drive controlling system USER MANUAL DC5T The remotes operate at 433 MHz frequency Technical data : Power: 3V battery ( CR 2430 ) Operating frequency: 433 MHz Transmission power: 10 mW Operating temperature: from -10 ˚C to +50 ˚C...

  • Page 2: Method One

    1. Programming the radio drive on a specific channel of any transmitter. A. Method one IMPORTANT!!! While programming, only the drive being programmed should be connected to a power supply. After connecting the motor to a power supply, you will hear a long single beep sound and the motor will move briefly up and down (if you do not press any button within 12 seconds, the motor will quit the programming mode).
  • Page 3 2. Programming an external radio receiver on a specific channel of any transmitter. IMPORTANT!!! If you have an external radio receiver, follow the user manual for the device (i.e. XT-R, PPKR-313 or PPKR-400). 3. Changing the direction of rotation of the drive. METHOD 1: After assigning the device to a motor, check if the running direction is correct by switching the motor on with the device.
  • Page 4 4. Channel deletion (deleting all channel settings). IMPORTANT!!! If you delete the settings of a particular channel, drives assigned to that channel will be completely deleted from other channels as well. METHOD 1: 1. Select a previously programmed channel on the display: 2.
  • Page 5 4. Press P2 on the device you wish to program. You will hear 5 beeps and the motor will move briefly UP and DOWN. 6. Device operating mode. The PORTOS-RM radio drive can operate in two modes: Support mode Pressing and releasing the UP or DOWN button activates a programmed motor function (opening or closing the roller shutter).

  • Page 6: Changing The Operating Mode

    7. Changing the operating mode. You can switch between the operating modes by following the instructions below: 1. Select a previously programmed channel. 2. Press P2, the motor will make a single beep sound and move briefly UP and DOWN. 3.

  • Page 7: Device Functions

    9. Device functions: The transmitter can operate in three modes: MAN – manual mode – manual lifting available only AUTO – automatic mode – activates both: timer's functions and manual operation RANDOMLY – random mode – manual operating available , whereas automatic functions are booted with +/- 15 minutes offset CHANGE OF THE MODES: To change the operation mode of the device press M button.
  • Page 8 11. Programming the lifting and lowering times: 1. Select the desired channel on the remote control. Press the MODE button and set the mode to AUTO. 2. Press and hold the TIME CHANGE button for 3s. - The screen displays the time of day of the week.
  • Page 9 ..seconds...
