I
Modello
DTR4335 - AU04500
Frequenza portante
Portante irradiata (E.R.P.)
Modulazione
Digitale 00K (ON-OFF Keyng)
Assorbimento
Temperatura d'esercizio
Grazie per aver scelto GI.BI.DI.
Uso: Alla pressione di uno dei tasti si avrà la trasmissione del codice sul relativo canale.
Sostituzione della batteria: Aprire il guscio e rimuoverlo con cautela facendo uso di un
cacciavite a taglio. Togliere le vecchie batterie e posizionare le nuove (2xCR1220) facendo
attenzione a rispettare le polarità. Richiudere l'involucro del trasmettitore prestando attenzione
a non danneggiare il circuito.
Apprendimento codici: posizionarsi vicino al ricevitore radio e schiacciare
contemporaneamente per almeno 6 sec. i tasti 1 e 2 di un TX già memorizzato. Quindi
premere il tasto 1 del nuovo TX.
Avvertenza importante: A causa delle dimensioni ridotte il prodotto, o alcune sue
parti, potrebbe essere ingerito. Tenere lontano dalla portata di bambini di età inferiore
ai 36 mesi.
La GI.BI.DI. S.r.l. dichiara che i prodotti, a cui questo libretto fa riferimento, sono conformi ai
requisiti essenziali della DIRETTIVA R&TTE 1999/5/CE.
La dichiarazione completa è disponibile sul sito www.gibidi.com.
Questo prodotto è stato collaudato in GI.BI.DI. verificando la perfetta corrispondenza delle
caratteristiche alle direttive vigenti.
La GI.BI.DI. S.r.l. si riserva la facoltà di modificare i dati tecnici senza avviso, in funzione
dell'evoluzione del prodotto.
SMALTIMENTO: GI.BI.DI. consiglia di riciclare i componenti in plastica e di smaltire in appositi
centri abilitati i componenti elettronici evitando di contaminare l'ambiente con sostanze
inquinanti.
Numero Verde: 800.290156

Model

UK
DTR4335 - AU04500

Carrier frequency

Carrier radiated (ERP)

Modulation

Digitale 00K (ON-OFF Keyng)

Absorption

Operating temperature

Thank you for choosing GI.BI.DI.

Use: When pressing and releasing one of the keys the code will be transmitted on the
relevant channel.
Battery replacement: Open the shell and carefully remove it using a flat screwdriver. Remove
the old battery and fit the new one (2xCR1220) taking care not to invert the polarity. Close the
transmitter casing taking care not to damage the circuit.
Learning codes: position close to the radio receiver and press simultaneously, for at least 6 s,
the buttons 1 and 2 of a transmitter already stored. Then press the button 1 of the new
transmitter.
Important warnings: Because of the small size of the product, or some of its parts, it could be
swallowed. Keep away from children under the age of 3 years.
GI.BI.DI. S.r.l. declares that the products to which this handbook refers comply with the
essential requirements of the R&TTE DIRECTIVE 1999/5/EC. The entire declaration is
available at www.gibidi.com.
This product has been tested in GI.BI.DI. verifying the perfect correspondence of the
characteristics to the current directive.
GI.BI.DI. S.r.l. reserves the right to modify the technical data without prior notice depending on
the product development.
DISPOSAL: GI.BI.DI. advises recycling the plastic components and to dispose of them at
special authorised centres for electronic components thus protecting the environment from
polluting substances.
433.920 MHz
<1 mW
12 mA
-20°C + 55°C
433.920 MHz
<1 mW
12 mA
-20°C + 55°C
GI.BI.DI. S.r.l.
Via Abetone Brennero, 177/B
46025 Poggio Rusco (MN) - ITALY
Tel. +39.0386.52.20.11
Fax +39.0386.52.20.31
E-mail: info@gibidi.com
Numero Verde: 800.290156
w w w . g i b i d i . c o m
2
2xCR1220(3V)
DTR
DTR4335 - (AU04500)

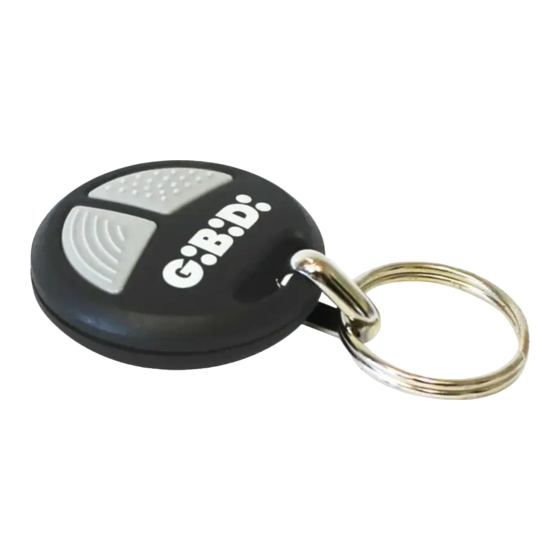

Radiocomando

Remote Control

I
UK
D
1
F
E
P
NL
GR
