EMERGENCY
BUTTON*
HIGH/LOW
VOLUME TOGGLE*
[DEFAULT: UNPROGRAMMED]
MICROPHONE
[TALK IN A NORMAL VOICE 1-2
INCHES AWAY FROM MIC]
SPEAKER
*Button functions can be customized in the Radio Editing Software (RES).

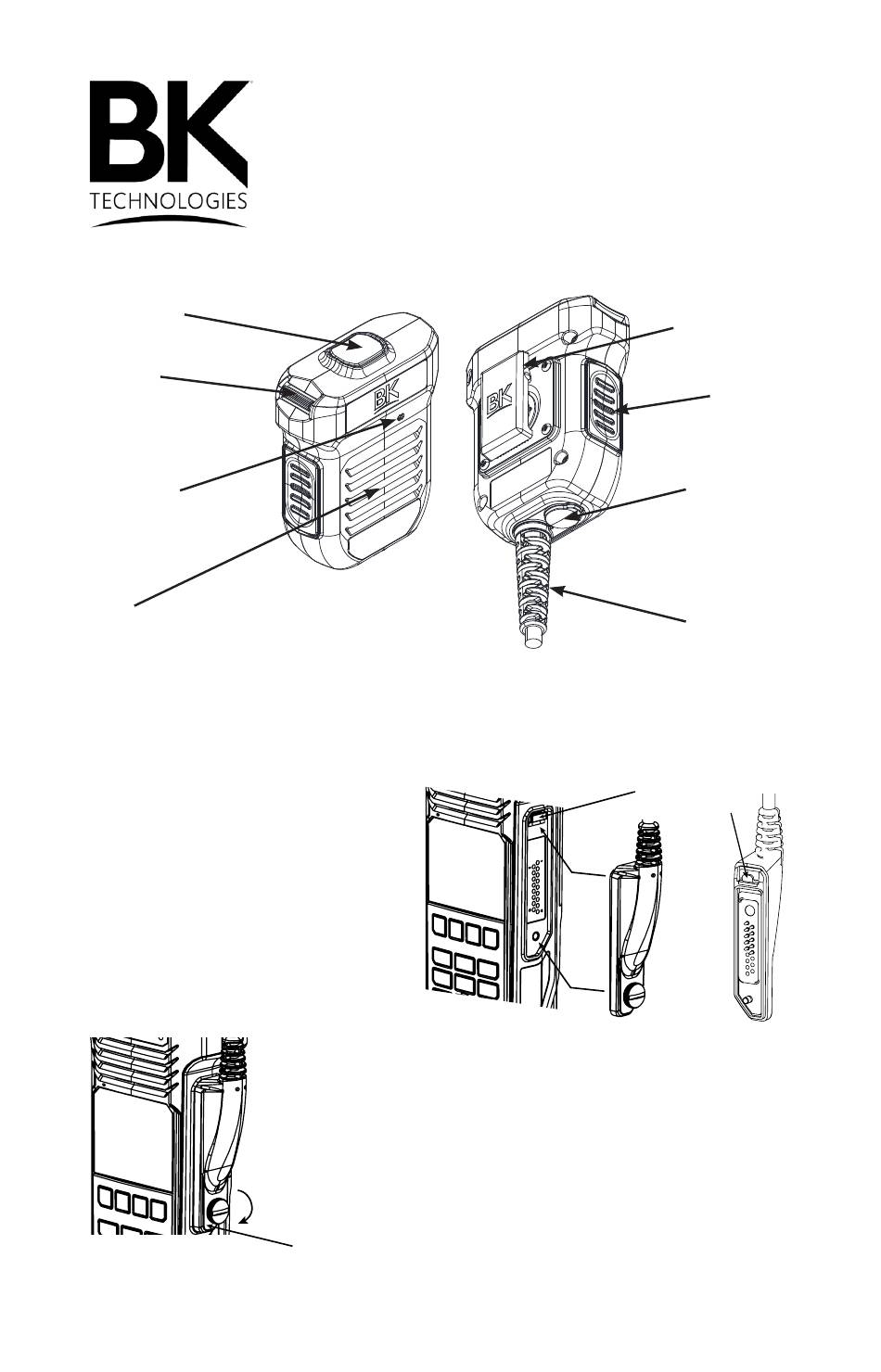

CONNECTING THE RSM TO THE RADIO:
1. Insert the 'tab' feature of the
connector with the 'tab' slot on
the radio. Connector should
make tight, precise fit with the
radio.
®
BKR0204 Radio Speaker Micro
See page 2 for details.
2. While applying pressure to the bottom
of the connector, the locking screw should align
and easily tighten against the radio. Make sure
the seal does not get pinched on the edges dur-
ing attachment. (The use of a screwdriver or coin
during tightening is discouraged. Over-tightening
could possibly damage the side connector.)
Apply pressure to bottom
when tightening
PN 7001-31187-800
User Instructions
REV. 05-22
Page 1
phone
SWIVEL CLIP
PUSH
TO TALK
AUDIO JACK
[CONTACT CUSTOMER SERVICE
OR LOCAL DEALER
FOR LIST OF COMPATIBLE
EARPHONE ACCESSORIES]
RADIO
CABLE
Tab
Tab
Slot
Feature
