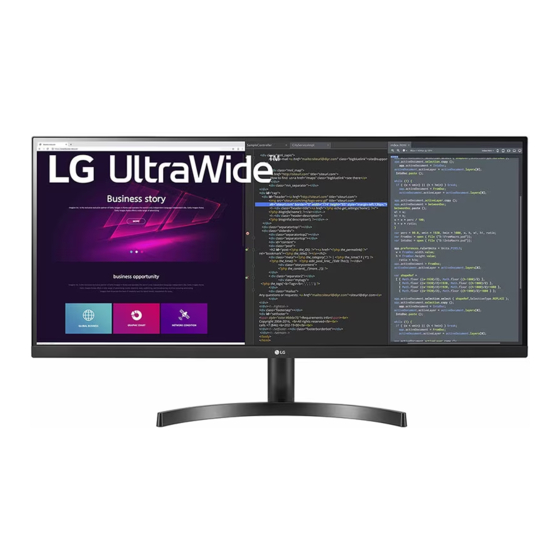

- Page 1 OWNER’S MANUAL LED LCD MONITOR (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 34WN700 www.lg.com Copyright © 2019 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. LICENSE ............2 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of OPEN SOURCE SOFTWARE NOTICE HDMI Licensing Administrator, Inc. -
Page 3: Open Source Software Notice
Supported Drivers and Software LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. - Page 4 Product and Button Description Moving and Lifting the Monitor When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size. • Place the monitor in the original box or packing material before attempting to move it. •...
- Page 5 Installing on a Table Adjusting the Angle • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm away from Place the monitor mounted on the stand base in an upright position. the wall to ensure sufficient ventilation.
- Page 6 Using the Kensington Lock Installing the Wall Mount Plate The connector for the Kensington security system is located at the bottom of the monitor. This monitor meets the specifications for the wall mount plate or other compatible devices. For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website NOTE at http://www.kensington.com.
- Page 7 When measured from the back of the monitor, the length of each installed screw must be 8 mm or less. NOTE • A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws. •...
-
Page 8: Using The Monitor
USING THE MONITOR DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. • Illustrations in this manual may differ from the actual product. NOTE Press the joystick button, go to Settings Input, and then select the input option. •... - Page 9 Connecting AV Devices HDMI Connection HDMI transmits digital video and audio signals from your AV device to the monitor. NOTE • Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues. • Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
-
Page 10: User Settings
USER SETTINGS NOTE • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. Activating the Main Menu Press the joystick button on the bottom of the monitor. Move the joystick up/down and left/right to set the options. Press the joystick button once more to exit the main menu. - Page 11 Main Menu Features Main Menu Description Input Sets input mode. Power Off Power Off Turns off the monitor. Settings Configures the screen settings. Settings Input Exit Picture Mode Sets the picture mode. Exit Exits the main menu. Picture Mode Menu Settings To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Settings.
- Page 12 Quick Settings Settings > Quick Settings Description Brightness Adjusts the contrast and brightness of the screen. Contrast Volume Adjusts the volume level. NOTE • You can adjust Mute / Unmute by moving the joystick button to in the Volume menu. Color Temp Custom The user can adjust it to red, green, or blue by customization.
- Page 13 Picture NOTE • The Picture Mode that can be set depends on the Input signal. [Picture Mode on SDR (Non HDR) signal] Settings > Picture Description Picture Mode Custom Allows the user to adjust each element. Vivid Heightens contrast, brightness and sharpness to display vivid images. HDR Effect Optimizes the screen for high dynamic range.
- Page 14 [Picture Mode on HDR signal] Settings > Picture Description Picture Mode Custom Allows the user to adjust each element. Vivid Optimized the screen for HDR vivid colors. Cinema Optimized the screen for HDR video. This mode is optimized for FPS games.It is suitable for very dark FPS games. This mode is optimized for RTS Game.
- Page 15 Settings > Picture Description Picture Adjust Brightness Adjusts the color contrast and brightness of the screen. Contrast Sharpness Adjusts the sharpness of the screen. SUPER RESOLUTION+ High Optimizes the screen for crystal clear images. Best for high-definition video or games. Middle Optimizes the screen for comfortable viewing, with images at the middle level between the low and high modes.
- Page 16 Settings > Picture Description Game Adjust Response Time Sets a response time for displayed pictures based on the movement of the picture on the screen. For a normal environment, it is recommended that you use Fast. When there is a lot of motion, it is recommended that you use Faster. Setting to Faster may cause image sticking.
- Page 17 Settings > Picture Description Color Adjust Gamma Mode 1, Mode 2, The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes. Mode 3 Mode 4 If you do not need to adjust the gamma settings, select Mode 4. Color Temp Set your own color temperature.
- Page 18 General Settings > General Description Language Sets the menu screen to the desired language. SMART ENERGY SAVING Conserve energy by using luminance compensation algorithm. High Saves energy using the high-efficiency SMART ENERGY SAVING feature. Saves energy using the low-efficiency SMART ENERGY SAVING feature. Disables the feature.
- Page 19 Settings > General Description OSD Lock This feature disables the configuration and adjustment of menus. Enables OSD Lock. Disables OSD Lock. Information The following display information will be shown; Total Power On Time, Resolution. Reset to Initial Settings Do you want to reset your settings? Returns to the default settings.
-
Page 20: Troubleshooting
Do you see an "Unrecognized monitor, Plug and Play (VESA DDC) monitor found" message? • Have you installed the display driver? Be sure to install the display driver from our web site: http://www.lg.com. • Make sure to check if the graphics card supports Plug and Play function. -
Page 21: Product Specification
PRODUCT SPECIFICATION Color Depth 8-bit color is supported. Resolution Max Resolution 3440 x 1440 @ 75 Hz (HDMI) 3440 x 1440 @ 75 Hz (DP) Recommended Resolution 3440 x 1440 @ 60 Hz (HDMI) 3440 x 1440 @ 60 Hz (DP) Power Sources Power Rating 19 V... - Page 22 Dimensions Monitor Size (Width x Height x Depth) With Stand (mm) 816.5 x 483.7 x 208.8 Without Stand (mm) 816.5 x 365.3 x 45.5 Weight (Without Packaging) With Stand (kg) Without Stand (kg) The specifications are subject to change without notice. The power consumption level can be different by operating condition and monitor setting.
- Page 23 Factory Support Mode (Preset Mode, PC) DisplayPort/ HDMI Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 720 x 480 31.47 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1152 x 864 54.347 60.05 1280 x 720...
- Page 24 HDMI Timing (Video) Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) 480P 31.5 720P 1080P 67.5 2160p Power LED Mode LED Color On Mode White (For a few seconds) Sleep Mode (Standby Mode) Off Mode...
- Page 25 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial No.
