Summary of Contents for PowerTech SB2220

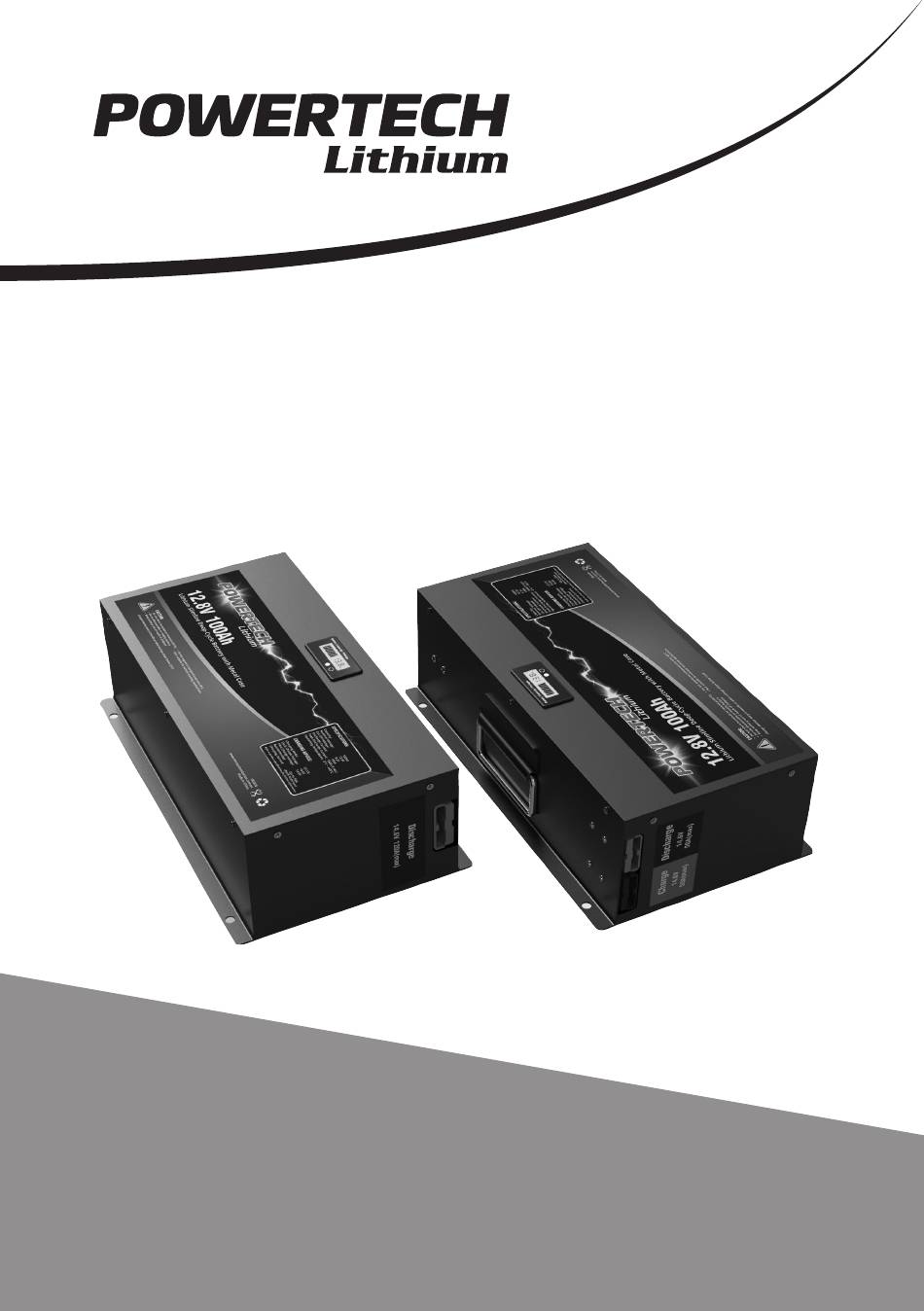

- Page 1 12.8V 100Ah Lithium Slimline Deep-Cycle Battery with Metal Case SB2220 Instruction Manual...
-
Page 2: Table Of Contents
Contents Warning 1. Product Index 1.1 Product Parameter 1.2 Product Parameter Graph 1.3 Battery Management System 2. Battery Usages 2.1 Charge 2.2 Discharge 3. Battery Service Environment 4. Special Attention 5.Battery Use and Maintenance 5.1 Battery Storage 5.2 Battery Check Before Use 5.3 Battery Installation 5.4 Battery Operating Requirements 5.5 Battery Operation... -
Page 3: Warning
WARNING: Quality Statement Proper use and maintenance will ensure that the battery (or battery system) will operate reliably and consistently for a long period of time. • After receiving the product, please check if the packaging is in good condition. If the packaging is broken, there may be damage to the product. -
Page 4: Product Index
1. PRODUCT INDEX: 1.1 Product Parameter Items Lithium Slimline Deep Cycle Battery with Metal Case Product Manual SB2220 Normal Voltage Nominal Capacity 100Ah Energy 1200Wh Internal Resistance ≤220mΩ Size (mm) 360 x 180 (210 including flange) x 115 Weight 11Kg End of Charge Voltage 14.6V... -
Page 5: Battery Management System
1.3 Battery Management System Our lithium iron phosphate (LiFePO4) battery pack includes an onboard digital battery management system (BMS). The BMS monitors voltage, current and temperature on both an individual cell and battery pack level. If any of these measurements deviate outside of their safe operating ranges, the BMS will actively work to correct the deviation. - Page 6 Discharge - 14.6V (50A MAX) Display Carry Handle Charge - 14.6V (50A MAX) Discharge - 14.6V (120A MAX) Remaining Battery Battery Capacity / Voltage Switch (test battery status)
-
Page 7: Battery Usages
2.1 Charge Charging voltage is14.4 ± 0.15V. Do not reverse polarity. 2.2 Discharge Make sure loads are properly wired to the positive and negative connections as indicated on the battery case. Battery discharge ambient temperature is -10°C~ + 55°C (When the ambient temperature >45°C, please pay attention to the ventilation and heat dissipation). -
Page 8: Special Attention
such as leakage or heat generation, please prohibit the following: • Do not immerse the battery in water. If the battery is immersed in water do not safely. • Do not charge, discharge or leave the battery at temperatures over 60°C. Keep danger and/or injury. - Page 9 • deformed, or any abnormality appears during use, storage, or charging, stop the battery from charging and stop use of the battery immediately. Remove and isolate the battery from loads and charging sources and contact your battery supplier or distributor. •...
-
Page 10: Battery Use And Maintenance
5.1 Battery Storage Storage temperature 0°C~40°C (Optimum storage temperature 15°C~25°C, low in battery capacity. This is a normal phenomenon. Avoid condensation caused by temperature changes during storage. Failure to do so can lead to corrosion, rust and internal battery failure. 5.2 Battery Check Before Use •... -
Page 11: Battery Operating Requirements
5.4 Battery Operating Requirements • maximum charge and discharge current. Current input or output beyond circuitry, or even cause a dangerous situation. • When the battery is in a low state of charge, it should be charged quickly. This helps prolong battery life. If the battery is not charged quickly from an extremely •... -
Page 12: Battery Troubleshooting
5.6 Battery Troubleshooting • Battery voltage is too low after being fully charged. Solution: Contact your installer or distributor. • Battery is in long-term storage with no use and is not being maintained properly. Solution: charged and needs to be un-wired and isolated. Please consult your installer or distributor. -
Page 13: Products Disclaimer
instructions and pay careful attention. Suppliers are not responsible for any incident caused by not installing and operating the battery according to this manual. Any problems from incorrect use, installation, connection, or input/output power, inconsistent with this manual, may cause damage to product. Improper use or installation can lead to battery damage and possible damage to the structure the battery is housed and cause injury. - Page 16 Distributed by: Electus Distribution Pty. Ltd. 320 Victoria Rd, Rydalmere NSW 2116 Australia www.electusdistribution.com.au Made in China...
