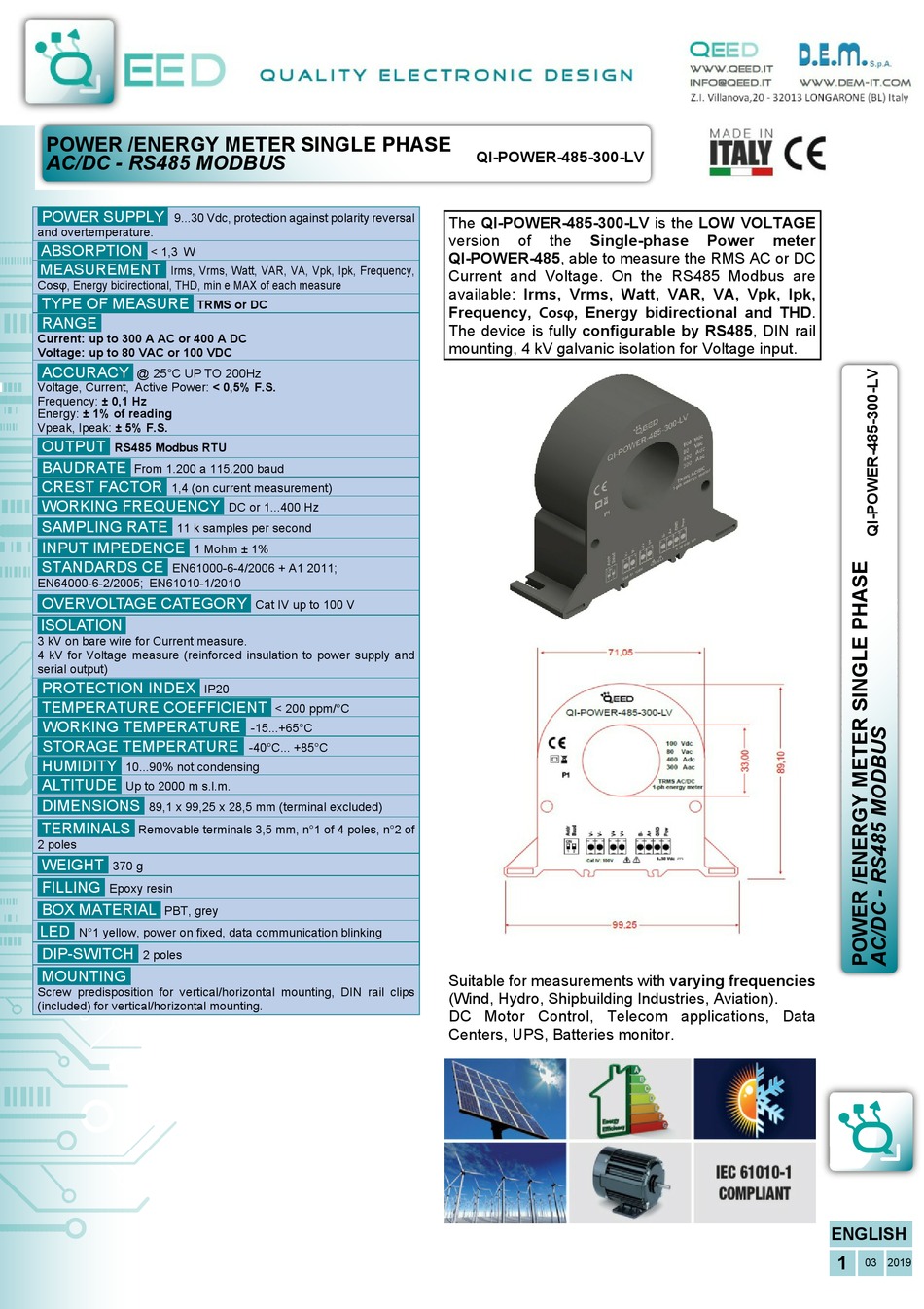

POWER /ENERGY METER SINGLE PHASE
AC/DC - RS485 MODBUS
POWER SUPPLY
9...30 Vdc, protection against polarity reversal
and overtemperature.
ABSORPTION
< 1,3 W
MEASUREMENT
Irms, Vrms, Watt, VAR, VA, Vpk, Ipk, Frequency,
Cosφ, Energy bidirectional, THD, min e MAX of each measure
TRMS or DC
RANGE
Current: up to 300 A AC or 400 A DC
Voltage: up to 80 VAC or 100 VDC
ACCURACY
@ 25°C UP TO 200Hz
Voltage, Current, Active Power: < 0,5% F.S.
Frequency: ± 0,1 Hz
Energy: ± 1% of reading
Vpeak, Ipeak: ± 5% F.S.
OUTPUT
RS485 Modbus RTU
BAUDRATE
From 1.200 a 115.200 baud
CREST FACTOR
1,4 (on current measurement)
WORKING FREQUENCY
SAMPLING RATE
11 k samples per second
INPUT IMPEDENCE
1 Mohm ± 1%
STANDARDS CE
EN61000-6-4/2006 + A1 2011;
EN64000-6-2/2005; EN61010-1/2010
OVERVOLTAGE CATEGORY
ISOLATION
3 kV on bare wire for Current measure.
4 kV for Voltage measure (reinforced insulation to power supply and
serial output)
PROTECTION INDEX
IP20
TEMPERATURE COEFFICIENT
WORKING TEMPERATURE
STORAGE TEMPERATURE
HUMIDITY
10...90% not condensing
ALTITUDE
Up to 2000 m s.l.m.
DIMENSIONS
89,1 x 99,25 x 28,5 mm (terminal excluded)
TERMINALS
Removable terminals 3,5 mm, n°1 of 4 poles, n°2 of
2 poles
WEIGHT
370 g
FILLING
Epoxy resin
BOX MATERIAL
PBT, grey
LED
N°1 yellow, power on fixed, data communication blinking
DIP-SWITCH
2 poles
MOUNTING
Screw predisposition for vertical/horizontal mounting, DIN rail clips
(included) for vertical/horizontal mounting.
DC or 1...400 Hz
Cat IV up to 100 V
< 200 ppm/°C
-15...+65°C
-40°C... +85°C
QI-POWER-485-300-LV
The QI-POWER-485-300-LV is the LOW VOLTAGE
version
of
the
Single-phase
QI-POWER-485, able to measure the RMS AC or DC
Current and Voltage. On the RS485 Modbus are
available: Irms, Vrms, Watt, VAR, VA, Vpk, Ipk,
Frequency, Cosφ, Energy bidirectional and THD.
The device is fully configurable by RS485, DIN rail
mounting, 4 kV galvanic isolation for Voltage input.
Suitable for measurements with varying frequencies
(Wind, Hydro, Shipbuilding Industries, Aviation).
DC Motor Control, Telecom applications, Data
Centers, UPS, Batteries monitor.
Power
meter
ENGLISH
1
03 2019
Advertisement
Table of Contents
Summary of Contents for DEM QEED QI-POWER-485-300-LV
- Page 1 POWER /ENERGY METER SINGLE PHASE QI-POWER-485-300-LV AC/DC - RS485 MODBUS POWER SUPPLY 9...30 Vdc, protection against polarity reversal The QI-POWER-485-300-LV is the LOW VOLTAGE and overtemperature. version Single-phase Power meter ABSORPTION < 1,3 W QI-POWER-485, able to measure the RMS AC or DC MEASUREMENT Irms, Vrms, Watt, VAR, VA, Vpk, Ipk, Frequency, Current and Voltage.
- Page 2 INSTRUCTION MANUAL QI-POWER-485-300-LV Using a serial link RS485-USB you can connect the QI-POWER-485-300-LV with the interface program FACILE QI-POWER-485. Using this software, allows you to set the Modbus address, baudrate, delay, the TV and TA ratio, to modify a filter in order to have fastest responce time instead of a more stable measurement (filter range from 1-speed to 5-accuracy) and to measure frequency on current channel instead of voltage channel...
