Installer: Leave this manual with the proud new owner
*
*
Also be sure to check the grill box completely for ALL parts
including the rotisserie spit rod (if applicable)

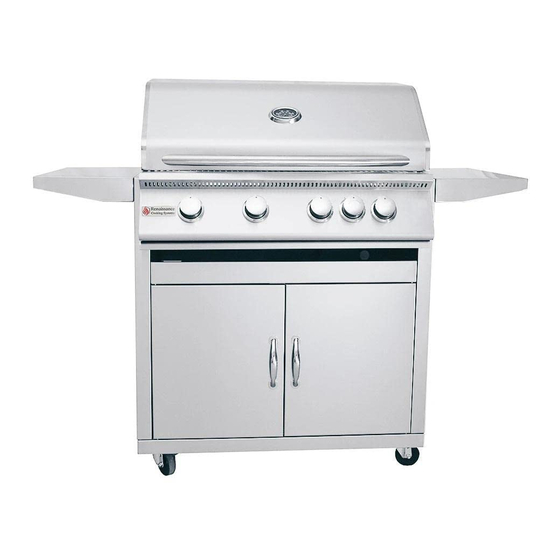

Renaissance Cooking Systems
Owner's Manual
For Outdoor Use Only
America's Best Value in Outdoor Kitchen Equipment
Installation, Operation, Maintenance
Instructions & Parts List
Models:
RJC26A, RJC32A, RJC32AL, RJC40A,
RJC40AL, RON30A, RON38A & RON42A
These grills are tested and certified to the ANSI-Z21.58/CSA 1.6.standards.
This owner's manual was updated November 2021
For the latest news, recipes and cooking tips for your new
Renaissance Cooking Systems grill, check out www.RCSGasGrills.com
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premier Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Renaissance Cooking Systems Premier Series

  • Page 1 RJC40AL, RON30A, RON38A & RON42A These grills are tested and certified to the ANSI-Z21.58/CSA 1.6.standards. This owner’s manual was updated November 2021 For the latest news, recipes and cooking tips for your new Renaissance Cooking Systems grill, check out www.RCSGasGrills.com P a g e...

  • Page 2: Table Of Contents

    Number and Serial Number of the grill which is located on the right or left hand side of the control panel depending on model: RJC26A, RJC32A, RJC32AL, RJC40A & RJC40AL – left side Premier Series: Cutlass Pro Series: RON30a, RON38a & RON42a – right side Thank you for purchasing your new RCS grill.

  • Page 3: For Your Safety

    Safety and Installation Instructions GRILL INSTALLATION This gas grill must be installed in accordance with all local codes. If installation is planned in an area with no local codes, the gas grill must be installed in accordance with the National Fuel Gas Code ANSI Z223.1 and storage and handling of liquefied petroleum gases, ANSI/NFPA 58 or CSA B149.1 natural gas and propane installation code.
  • Page 4 FOR YOUR SAFETY 1. Do Not store or use gasoline, caustic or other flammable vapors and liquids in the vicinity of this or any other appliance. 2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance..
  • Page 5 Do not use the grill as storage area for flammable or caustic materials. Keep area clear and free from combustible, gasoline, swimming pool chemicals, and other flammable vapors and liquids. Failure to do so can result in death, explosion, or fire. Safety and Installation Instructions Location of your Barbecue Most importantly, this is an outdoor appliance.
  • Page 6 Adequate Ventilation: Ensure there is adequate ventilation for both the barbecue, cylinder and all appliances located in this cabinet. Adequate ventilation is required for proper combustion and to prevent gas build up. Kitchen vents (RVNT1) are required every 4 feet to help ventilate and prevent dangerous gas build up, remove excess heat, add air to help with air/fuel mix for the grills and allows moisture/ condensation to evaporate.
  • Page 7 P a g e...

  • Page 8: Safety Rules

    Safety Rules • It is important to follow these rules to avoid fire hazard, property damage or bodily injury from improper installation or usage of the grill. For safety, READ all rules carefully and check local codes. • It is prohibited to install the grill in recreational vehicles/mobile homes, trailers, boats, etc. The grill is for outdoor installation and use only.

  • Page 9: First Time Operation

    First Time Operation Your RCS Appliance comes per-assembled and requires very little setup. We do however; recommend the use of professional help during the installation of your unit as improper installation may affect your warranty. Remove the unit from the box along with all accessories and check that no damage has occurred to the unit or any parts.
  • Page 10 Gas Connections Check gas type – use only the type of gas indicated in the rating plate. -The rating label is located on the left or right hand outside of the unit. RATING PLATE LOCATION DO NOT connect high pressure to this grill. This grill uses low pressure 1/2" psi to operate.

  • Page 11: Gas Barbecue Specifications

    GAS BARBECUE SPECIFICATIONS BURNER INPUT RATING Grill Model Main Burners Rear Burners Total BTU’s 12,000 RJC26A 36,000 RJC32A / RJC32AL 12,000 12,000 60,000 RJC40A / RJC40AL 12,000 12,000 72,000 RON30A 15,000 12,500 57,500 12,500 RON38A 15,000 72,500 RON42A 15,000 12,500 72,500 Natural Gas Connection: Appliance pressure...

  • Page 12: Lp Tank Requirement

    Before installing the grill into the island cutout, the main burner cotter pins on the cutlass and cutlass pro series grill may be removed for convenience of service, adjustments, and maintenance in the future. The premier series uses screws and are required. LP Tank Requirements: The L.P.
  • Page 13 Installation Location for All Models Choose a location where the flow of air on the front or rear of the grill is not obstructed. Due to high temperatures, place the grill out of traffic and keep away from clothing, furniture, or any combustible materials.
  • Page 14 Model/Part Number RWGM - RJC26A/RJC32A/RJC32AL/RON30A RWGL - RJC40A/RJC40AL/RON38A/RON42A BEFORE AFTER Built-in Installation For non-combustible cabinet enclosure installation only. Follow the cut-out dimensions as shown. ALL outdoor kitchen cabinets MUST include ventilation. There must be 12 square inches of opening for each (running) 4 feet of counter top. See Item # RVNT1 for approved vents.
  • Page 15 “B” Depth Model “C” Height “A” Width RJC26A 21” 23 1/2” 8 ¼” RJC32A /RJC32AL 20 3/4” 30 5/8” 8 ¼” RJC40A / RJC40AL 37 3/4” 21” 8 ¼” RON30A 33” 20” 11” 41 1/4” RON38A 20” 11” RON42A 20” 11”...
  • Page 16 Exhaust Hood Requirements When using an exhaust hood, the area above the cooking surface of the grill must be covered with a hood larger than the cooking area of the grill, AND with a minimum of 1200CFM (cubic feet per minute) for proper outdoor application.
  • Page 17 If adding a side burner to your connection: Electrical Electrical outlet for Rotisserie motor must be installed to the left side of the grill. The outdoor cooking gas appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

  • Page 18: Electrical/Wire Diagram

    Cutlass Pro Electrical Wire Diagram P a g e...
  • Page 19 Premier Series Electrical Wire Diagram Connector Connector Black White Black White Black LED Switch White Black White Connector RJC32AL 5 LEDS 2 HALOGEN LIGHTS RJC40AL 6 LEDS 2 HALOGEN LIGHTS 19 | P ag e...

  • Page 20: Burner Adjustments

    Leak Testing NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS. All gas piping and connections must be tested for leaks after installation or service. All leaks must be corrected immediately. Remember-before exchanging an empty bottle for a new one, make sure all control valves are in the “off”...

  • Page 21: Lighting Instructions

    If flame is lifting, remove the front panel to access the burner front (air shutter) then turn the air shutter clockwise reducing this intake. The screw should be loosened before turning the air shutter. If the flame has more yellow than blue, the air shutter should be turned counter clockwise allowing more air in.

  • Page 22: Operation

    Optional Infred Burner 1. To install the optional infrared burner, begin by removing the far left cooking grid, flame tamer and zone divider, if applicable. 2. Remove conventional burner by first removing the cotter pin or screws that hold the burner in place (unless they were removed prior to installation), located on the bottom rear of the burner and located inside the rear of the grill body.

  • Page 23: Cleaning And Maintenance

    Cleaning and Maintenance Your grill works better and lasts longer if properly cleaned and maintained. Cleaning: Clean the grill after each use. Turn grill off before starting to clean. Protect your hand with a good mitt when cleaning the hot grill. Use a wire brush, dip in water and scrub the cooking grids to soften and loosen food spills.
  • Page 24 Important Note: For Locations Near Coastal Areas and Pools #304 stainless steel materials used in the construction of your cutlass PRO series grills are highly rust resistant, however, chlorine in the air from swimming pools or the salt from sea air may cause surface rust to appear and even create some pitting if left on the product.
  • Page 25 Fuel Conversion of Main Burners: 1- Determine the existing gas type (LP or Natural gas). The method of changing gas types is similar for natural gas or propane gas. 2- You must remove all grates and burner covers to expose the main burners in the grill. 3- On the bottom rear of each burner may be a cotter pin or screws attaching burners to the grill housing.
  • Page 26 Rotisserie Burner Conversion: 1- Remove the back panel at the rear of the grill, this will expose the V shaped or pyramid shaped brass orifice. 2- Replace with new orifice. 3- Replace rear panel. Trouble Shooting: Problem and Solution Burner will not light •...
  • Page 27 RJC26A/RJC32A/RJC40A Enlarged View P a g e...
  • Page 28 RJC26A/RJC32A/RJC40A Parts List QTY. ITEM PART NO. DESCRIPTION RJC26A RJC32A RJC40A RJC001P 26"-TOP HOOD RJC002P 32"-TOP HOOD RJC051P 40"-TOP HOOD RJC003P ACCESS DOOR RJC004P 26"-REAR HOOD RJC005P 32"-REAR HOOD RJC052P 40"-REAR HOOD RJC006P 26"-WARMING RACK RJC007P 32"-WARMING RACK RJC053P 40"-WARMING RACK RJC008P TOP GRATE RJC009P...
  • Page 29 RJC32AL / RJC40AL Enlarged View 29 | P a g e...
  • Page 30 RJC32AL/RJC40AL Parts List QTY. ITEM PART NO. DESCRIPTION RJC32AL RJC40AL RJC002P 32"-TOP HOOD RJC051P 40"-TOP HOOD RJC003P ACCESS DOOR RJC062P 32"-REAR HOOD RJC063P 40"-REAR HOOD RJC007P 32"-WARMING RACK RJC053P 40"-WARMING RACK RJC008P TOP GRATE RJC009P BRIQUETTE TRAY RJC010P CROSSOVER TUBE RJC011P BURNER RJC064P...
  • Page 31 RON30a/RON38a/RON42a Enlarged View c· IP age...
  • Page 32 RON30a/RON38a/RON42a Parts List QTY. QTY. PART# DESCRIPTION PART# DESCRIPTION ITEM ITEM RON30a RON38a RON42a RON30a RON38a RON42a RON071 30”-TOP HOOD RON130 LED LIGHT BULB RON113 38”-TOP HOOD RON099B 30 “-LED LIGHT WIRE RON072 42”-TOP HOOD RON121B 38 “-LED LIGHT WIRE RON073 IGNITOR BRACKET-IR BURNER RON122B...
  • Page 33 All RCS Premier Series Grills and side burners are warrantied to be free from manufacturer defects for 15 years to the original owner.
