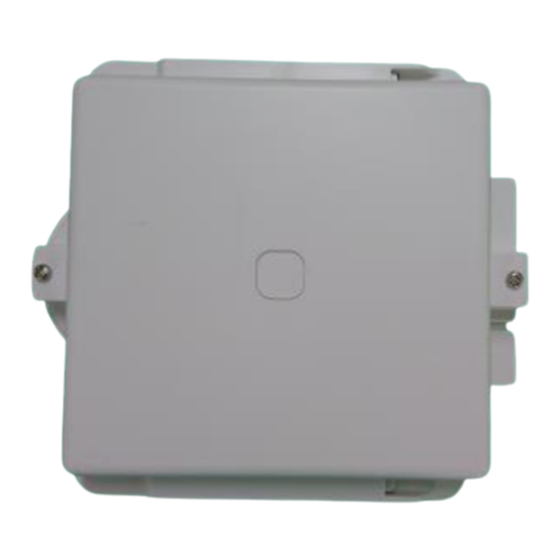

Bluetooth low energy beacon "HRM5072" has multi patch antenna for directivity. It works with
four size AA batteries more than three years. It also supports various RF power settings (-20dBm ~
+4dBm, 4dBm step).

Operating manual

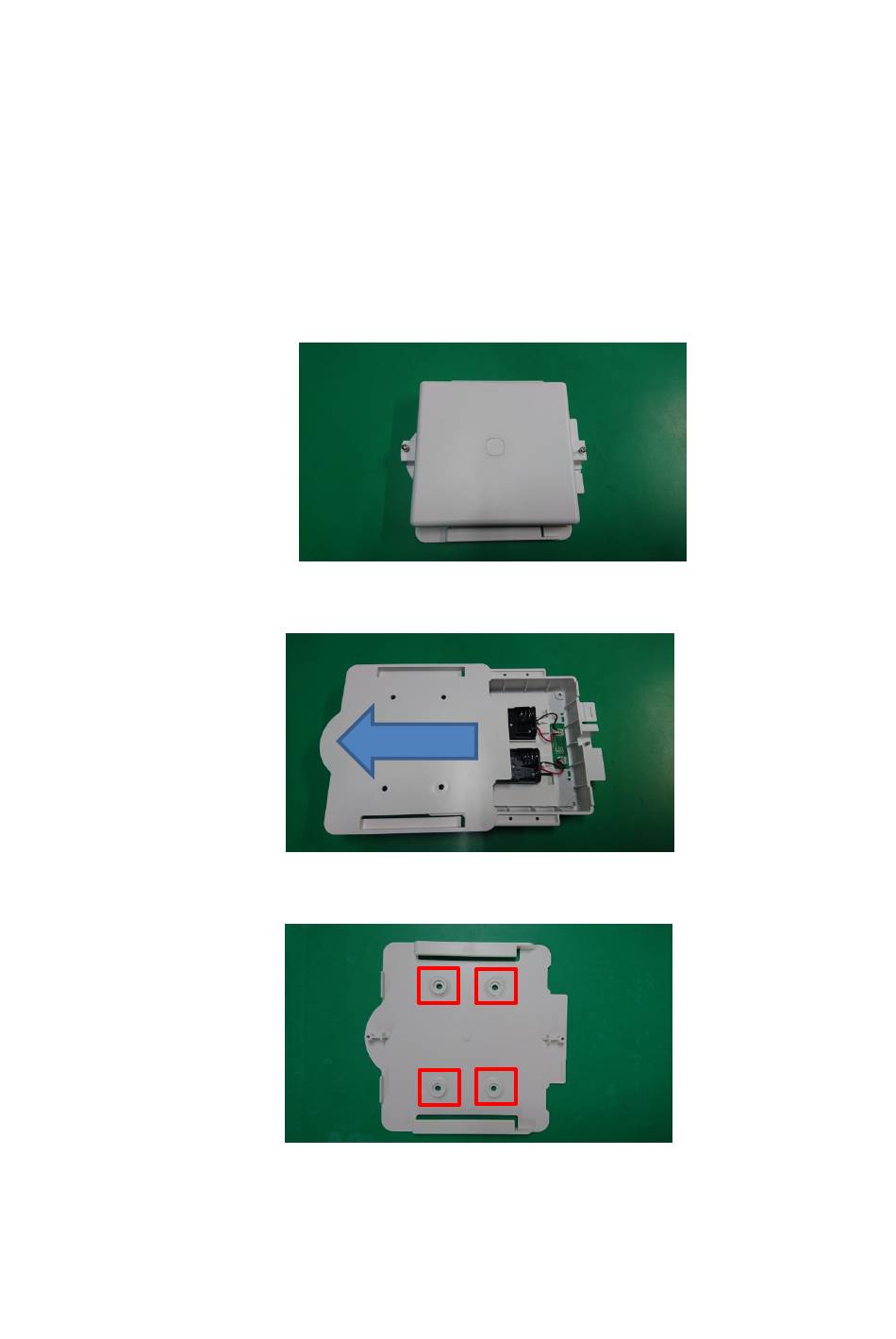

①Reverse HRM5072 (The following photograph is top view.)
②Slide the bottom cover
③Attach bottom cover to the ceiling or the wall with M4 screws.
HRM5072 User Manual
- 1 -
