MODEL # DJ104BC- WINDSOR LIFETIME CRIB (DARK PINE)
If you are missing parts or have any questions about this product, contact our customer service representative first!
You can also order parts by writing to the address listed below. Please include the product model number, color and a
detailed description of the part.
*
Failure to follow these warnings and assembly instructions could result in serious injury or death.
*
Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE.
*
Before each usage or assembly, inspect crib for damaged hardware, loose joints, missing parts or sharp edges,
DO NOT use crib if any parts are missing or broken. Ask your dealer or write to our customer service
representative (address & phone number shown above) for replacement parts and instructional literature if
needed. DO NOT substitute parts.
*
Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under
an infant.
*
When child is able to climb out or reaches the height of 35 inches (90 cm), the crib shall no longer be used.
*
To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless
otherwise advised by your physician.
DO NOT place crib near window where cords from blinds or drapes may strangle a child.
*
*
Strings can cause strangulation! DO NOT place crib with a string around a child's neck, such as hood strings
or pacifier cords. DO NOT suspend strings over a crib or attach strings to toys.
*
To help prevent strangulation tighten all fasteners. A child can trap parts of the body or clothing on loose
fasteners.
If refinishing, use a non-toxic finish specified for children's products.
*
*
When child is able to pull to standing position, set mattress to lowest position and remove bumper pads, large
toys and other objects that could serve as steps for climbing out.
*
Never use plastic shipping bags or other plastic film as mattress covers because they can cause suffocation.
DO NOT use a water mattress with this crib.
*
Replace teething rail if damaged or loose (if teething rail is provided for this model).
*
*
CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27-1/4 INCHES BY 51-5/8 INCHES
(69CM BY 131CM) WITH A MINIMUM THICKNESS OF 4 INCHES (10CM) BUT NOT EXCEEDING 6 INCHES
(15CM).
Infants can suffocate in gaps between crib sides and a mattress that is too small.
*
Follow warnings on all products in a crib.
*
WARNING ENTRAPMENT / STRANGULATION HAZARD:
* Infants have died in toddler beds from entrapment and strangulation.
* NEVER use bed with children under 15 months.
* NEVER place bed near windows where cords from blinds or drapes may strangle a child.
*
The TODDLER BED or DAY BED is not intended for children under 15 months of age or over 50 pounds
*
If guardrails are used as the mattress containment means, guardrail(s) provided must be used to avoid the
formation of a gap between the mattress and the bed that could cause an entrapment (when product is used as
a TODDLER BED or DAY BED).
*
DO NOT place DAY BED or TODDLER BED near windows where cords from blinds or drapes may strangle a
child.
*
DO NOT place items with a string, cord, or ribbon around a child's neck, such as hood strings or pacifier cords.
*
DO NOT suspend strings over a TODDLER BED or DAY BED for any reason.
CUSTOMER SERVICE
CALL 1-800-295-1980
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada H1G 3L1
E-MAIL: csr@jardcoent.com
WARNING

Advertisement

loading

Summary of Contents for JARDIN WINDSOR LIFETIME DJ104BC

  • Page 1 MODEL # DJ104BC- WINDSOR LIFETIME CRIB (DARK PINE) CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part.
  • Page 2 MODEL # DJ104BC- WINDSOR LIFETIME CRIB (DARK PINE) NOTES Ensure all parts and components are present before beginning assembly. Assemble on soft, smooth surface to prevent damage to product finish. Phillips head screw driver is not included. DO NOT use power tools. CAUTION: Adult assembly required.
  • Page 3 ASSEMBLY INSTRUCTION FOR "DJ104BC"CRIB HARDWARE AND PART LIST BOLT 2 3/4"×1/4"DIA 8PCS BOLT 3 3/4"×1/4"DIA 8PCS BOLT 1/2"×1/4"DIA 16PCS ALLEN WRENCH 4MM 1PC GUARD RAIL 1PC RIGHT (H2) LEFT (H1) FRONT POST LEFT END RIGHT END (G1) 1PC (G2) 1PC END PANEL FRONT PANEL 1PC HEAD BOARD...
  • Page 4 ASSEMBLY INSTURCTIONS DJ104BC 4 IN 1 CRIB Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all parts and compare with the parts list above. NOTE: WHEN INSERTING SCREWS TURN CLOCKWISE UNTIL TIGHT.
  • Page 5 ASSEMBLY INSTURCTIONS DJ104BC 4 IN 1 CRIB STEP 3: Attach the mattress support to the 4 corner posts with the mattress support bolts (D). Use Allen Key to tighten bolts. Refer to details 1 and 2 for direction on how to properly attach the mattress support.
  • Page 6 ASSEMBLY INSTRUCTIONS DJ104BC 4 IN 1 CRIB STEP 4. ATTACH THE FRONT PANEL (PART J) TO FRONT POST (H1) AND (H2) USING BOLTS (A).USE ALLEN WRENCH (C) PROVIDED TO TIGHTEN BOLTS.

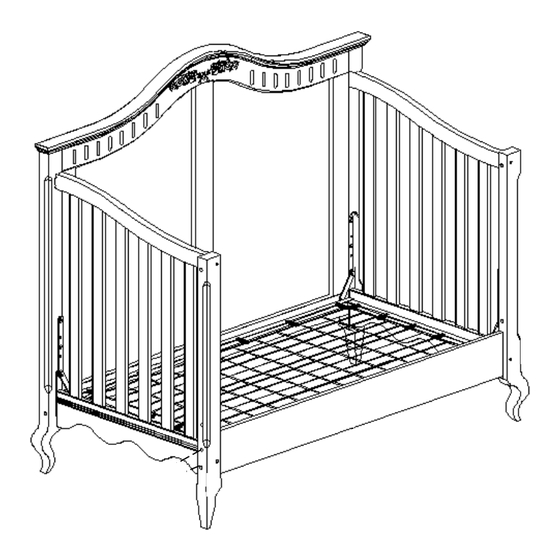

  • Page 7 ASSEMBLY INSTRUCTION DJ104BC DAY BED WARNINGS: 1. ANY MATTRESS USED IN THIS DAY BED MUST BE AT LEAST 27-1/4" × 51-5/8" (69CM × 131CM) WITH A MINIMUM THICKNESS OF 4" AND NOT EXCEEDING 6" (15CM). 2. THE DAY BED IS INTENDED FOR USE BY A CHILD NOT LESS THAN 15 MONTHS OF AGE AND WHO WEIGHTS NO MORE THAN 50LBS (27.7KGS) NOTE: WHEN INSERTING SCREWS TURN CLOCKWISE UNTIL TIGHT, THEN LOOSEN 1/2-3/4 OF A TURN, AFTER CRIB IS COMPLETELY ASSEMBLED, RETURN TO EACH...
  • Page 8 DIAGRAM 1 DIAGRAM 2 NOTE: Headboard SIDE RAIL Headboar SLAT Footboard WOOD SCREWS ASSEMBLY INSTRUCTION DJ104BC CRIB FULL SIZE BED FULL SIZE CONVERSION RAILS ARE NOT INCLUDED. DIAGRAM 2 IS FOR REFERENCE ONLY. Footboard DIAGRAM 1 STEP 1: ASSEMBLE THE FRONT POSTS (PART H1 & H2) TO THE FRONT PANEL (PART J) BY USING BOLTS (PART A), AS SHOWN IN DIAGRAM 1.
