Summary of Contents for U-Media SA-1000

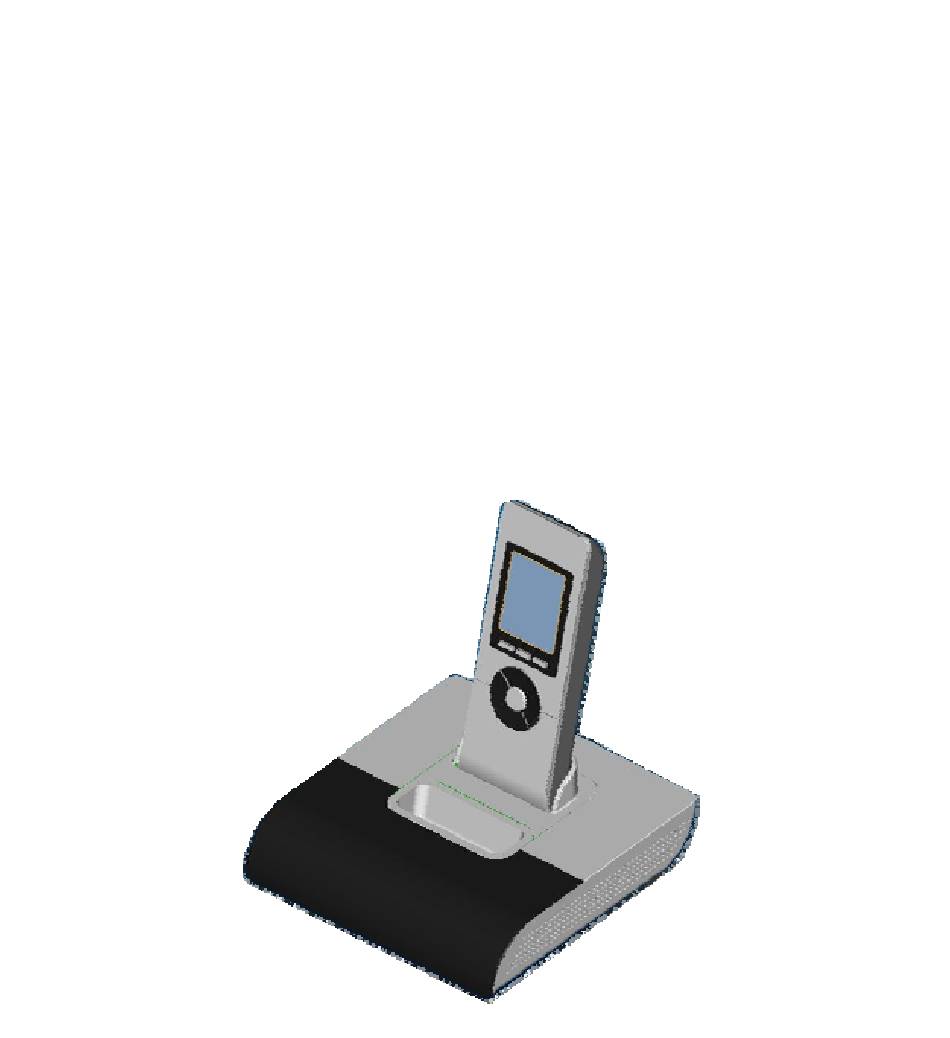

- Page 1 SA-1000 (ACR+HRC) Docking Base with Radio Remote Controller iPod User Guide...
- Page 2 Packing Contents 1: Remote Contorl (HRC-100) 2: BaseStation (ACR-100) 3: AV Cable 4: Power Adapter 5. Battery 6: Universal inserts Compatible iPod Model No.: - iPod with video (30GB, 60GB, 80GB) - iPod nano (1GB, 2GB, 4GB, 8GB) - iPod with color display (20GB, 30GB, U2, 40GB, 60GB) - iPod (20GB, U2, 40GB) - iPod mini (4GB, 6GB)
- Page 3 Remote Controller (HRC-100) 1: Power On / Off, Mute ACR, Let ACR go to standby mode 2: Volume Up / Down 3: Page up 4: Main Menu 5: Page Down 6: Previous Track, Rewind 7: Next Track, Fast-forward 8: Up 9: Down 10: Play / Pause / OK 11: Charging Pad...
- Page 4 BaseStation (ACR-100) 1: HRC Docking: Charge Remote Control 2: iPod Docking: Charge and sync iPod 3: iPod LED 4: Power LED 5: RC LED 1: Power port 4: RCA Video out 2: miniUSB port 5/6: RCA Audio out 3: S-Video 7 Earphone Jack...
- Page 5 Attach the included AC Adapter to Power port, and plug the other end into a wall outlet. When Power is on, ACR’s Power LED will be turned Slip your iPod onto ACR’s dock connector. SA-1000 includes three universal dock inserts, designed for iPod mini, 4 G iPod and iPod photo.
- Page 6 Menu screen to return to the Now Playing screen. Connecting to TV If you are connecting SA-1000 to TV, attach the yellow, red, and white RCA connectors on the included cable to the appropriate ports on your TV/Stereo. Attach the other end of the cable to ACR RCA A/V Out port.
- Page 7 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
