编号:Z-PKQG-HT381-V2
材质:80g书纸 四色双面模切成品
尺寸:展开尺寸: 560x440mm 成品尺寸: 140x220mm

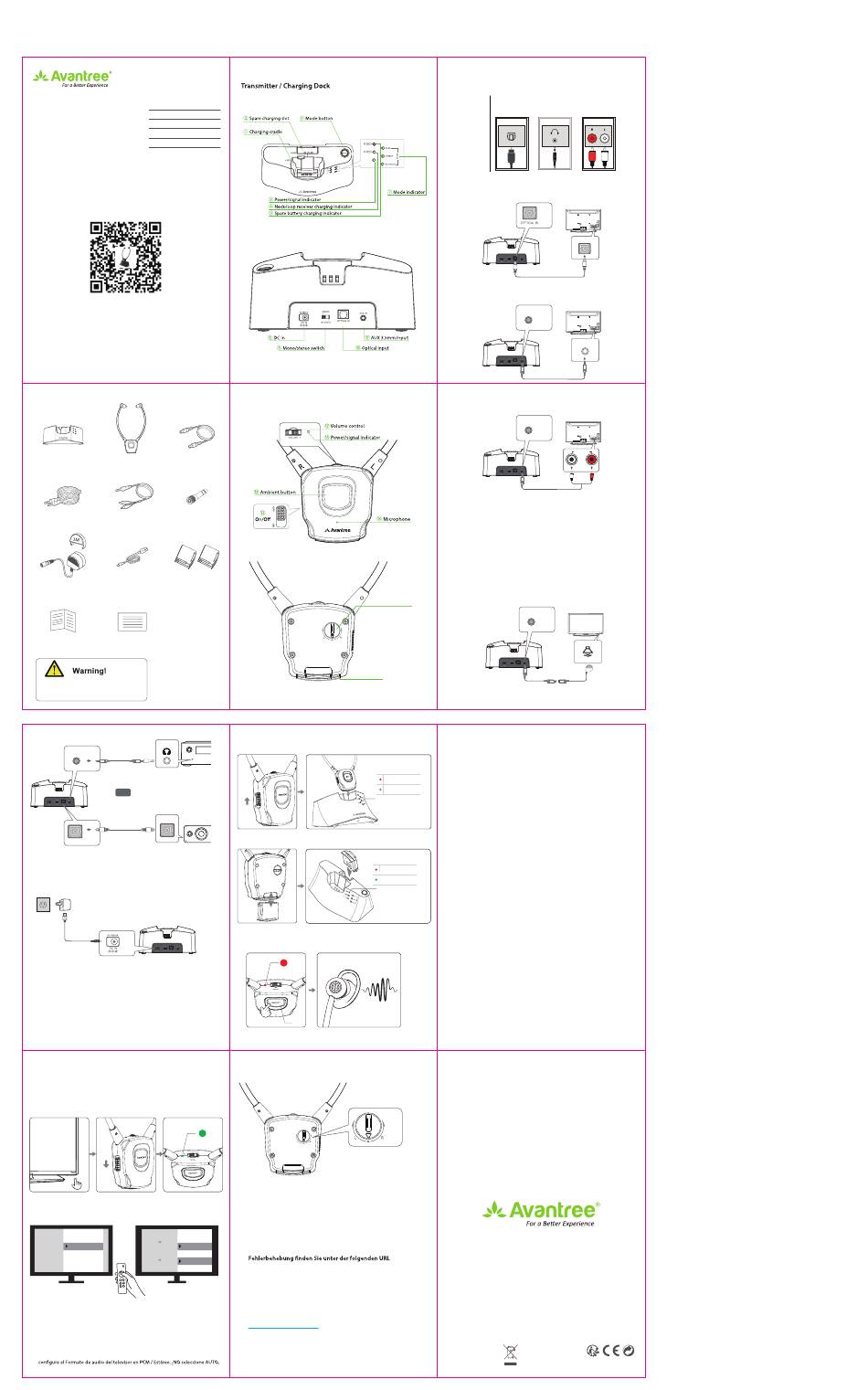

Avantree® HT381
Quick Start Guide
Wireless Hearing-
Schnellanleitung
Guide de démarrage rapide
Enhancing System
Guida Rapida all'uso
Guía de iniciorápido
Model No.: WSHT-381
Please visit
www.avantree.com/product-support/WSHT-381-BLK
for detailed step-by-step setup guide
What's in the box.
Ⓐ
Ⓑ
Ⓒ
Transmitter/charging dock
Earphone
Optical audio cable
Ⓓ
Ⓔ
Ⓕ
AUX 3.5mm audio cable
AUX 3.5mm to
6.35mm to 3.5mm
RCA audio cable
audio cable
Ⓖ
Ⓗ
Ⓘ
External microphone
USB to DC
Polymer lithium
charging cable
rechargeable battery X 2
Ⓙ
Ⓚ
User manual
Contact card
For safety precautions, please avoid using
batteries other than the ones included in
the package.
OPTION 5: If You Have a Soundbar or AV Receiver
Phone
AUX IN
Ⓓ
Ⓕ
⑪
OR
DIGITAL OUT
Ⓒ
⑩
OPTICAL IN
Step 2 Connecting the Earphone to the Transmitter Dock
Part 1. Connect the transmitter dock to a power source. We recommend
connecting it to a wall outlet using a USB wall adapter (not included).
Note: Contact us at support@avantree.com for a FREE USB wall charger (for US / UK / EU ) if
you need one.
5V/500mA - 2A
Ⓗ
⑧
DE: Teil 1: Schließen Sie das Senderdock an eine Stromquelle an. Wir empfehlen, es mit
einem USB-Wandadapter (nicht im Lieferumfang enthalten) an eine Steckdose
anzuschließen.
Hinweis: Kontaktieren Sie uns unter support@avantree.com für ein KOSTENLOSES
USB-Ladegerät (für USA / UK / EU), wenn Sie eines benötigen.
FR: Partie 1: Connectez la station d'accueil de l'émetteur à une source d'alimentation.
Nous vous recommandons de le connecter à une prise murale à l'aide d'un adapta-
teur mural USB (non inclus).
Note:Si besoin, contactez-nous via support@avantree.compour obtenir unchargeur
mural USB GRATUIT (Pour les US / UK / EU ).
IT: Parte 1: Collegare il dock del trasmettitore a una fonte di alimentazione. Si consiglia
di collegarlo a una presa a muro utilizzando un adattatore da parete USB (non incluso).
Nota: Contattateci a : support@avantree.com per ottenere un caricabatterie da muro
( per UK / US / EU) gratuito se lo necessitate.
ES: Parte 1: Conecte la base del transmisor a una fuente de alimentación. Recomenda
mos conectarlo a una toma de corriente mediante un adaptador de pared USB (no
incluido).
Nota: Contáctenos en support@avantree.compara obtener un cargador de pared USB
GRATIS (para UK / US / EU) si lo necesita.
Part 2 – Follow instructions below to power everything on.
⑫
Part 3 – TV Setting
Use your TV remote to go into your TV's SETTINGS MENU, Set TV Audio Format to
PCM/Stereo. Do NOT select AUTO, DOLBY, or BITSTREAM !
Sound
Audio Out
Optical Out
Digital
PCM / Stereo
Audio Format
or
Dolby - Off
DE: Verwenden Sie Ihre TV-Fernbedienung, um in Ihr TV-EINSTELLUNGSMENÜ zu
gelangen. Stellen Sie das TV-Audioformat auf PCM / Stereo ein. Wählen Sie NICHT
AUTO, DOLBY oder BITSTREAM!
FR: Utilisez la télécommande de votre téléviseur pour accéder au MENU RÉGLAGES TV,
réglez le format audio TV sur PCM / Stéréo. Ne sélectionnez PAS AUTO, DOLBY ou
BITSTREAM!
I T: Usa il telecomando della TV per accedere al MENU IMPOSTAZIONI TV, Imposta
formato audio TV su PCM / Stereo. NON selezionare AUTO, DOLBY o BITSTREAM!
ES: Use el control remoto de su televisor para ir al MENÚ DE CONFIGURACIÓN DE TV,
DOLBY o BITSTREAM!
Product Overview
Earphone
AMBIENT
Charging
OPTION 1
⑫
OPTION 2
Ambient Function
⑭
⑬
-
L/R Volume Control
⑭
Earphone fail to reconnect to the transmitter dock?
No sound/not working?
......
For problems connecting or other troubleshooting tips go to the URL
below.
DE: Informationen zu Verbindungsproblemen oder anderen Tipps zur
FR: Pour les problèmes de connexion ou d'autres conseils de dépan-
nage, accédez à l'URL ci-dessous
I T: Per problemi di connessione o altri suggerimenti per la risoluzione
dei problemi, vai all'URL di seguito
ES: Para problemas de conexión u otros consejos para la resolución de
problemas, vaya a la siguiente URL.
support.avantree.com
Step 1 – Connecting the DOCK to your TV
Determine what types of audio ports you have.
Do NOT turn anything on.
Optical/Toslink/
SPDIF OUT
TV Audio Out
Options
BASS
TREBLE
TRANSMIT
BALANCED
Ⓒ
OPTION 1: Digital OPTICAL/TOSLINK/SPDIF –
OPTION 2: AUX 3.5mm/ Headphone Out
AUX IN
OPTION 3: Red/White RCA Audio
Out*
NOTE: The Red & White RCA ports must be labeled "AUDIO OUT" to work.
AUX IN
DE:
HINWEIS: Die rot-weißen Cinch-Anschlüsse müssen mit "AUDIO OUT" gekenn-
zeichnet sein, damit sie funktionieren.
FR:
REMARQUE: Les ports RCA rouge et blanc doivent être étiquetés «SORTIE
AUDIO» pour fonctionner.
IT:
NOTA: le porte RCA Red & White devono essere etichettate "AUDIO OUT" per
funzionare.
ES:
NOTA: Los puertos RCA rojo y blanco deben estar etiquetados como "SALIDA
DE AUDIO" para que funcionen.
⑰
Left-Right audio
OPTION 4: Can't Reach / Do Not Have Output Ports on TV?
balance control
⑱
Battery
Charging
Charging Complete
④
Charging
Charging Complete
⑤
⑰
Dispose of the packaging and
this product in accordance with
the latest provisions.
RCA jacks
AUX/3.5mm
labeled
"AUDIO OUT"
Ⓓ
Ⓔ
Recommended!
⑩
HDMI/DVI IN
RGB(PC )
RGB IN
(RGB /DVI)
AUDIO
REMOTE
CONTRO L IN
DIGITAL AUDIO OUT
OPTICA L COAXIAL
CABLE IN
ANTENNA/
3
2
2
COMPONENT IN
(CON TROL & SE RVICE )
RS-232C I N
AUDIO OUT
1
1
VIDEO
AUDIO
VIDEO
)
AUDIO
MONO
(
AV IN 2
DIGITAL OUT
Ⓒ
⑪
ANTENNA/
HDMI/DVI IN
RGB(PC )
RGB IN
AUDIO
(RGB /DVI)
REMOTE
CONTRO L IN
OPTICA L COAXIAL
CABLE IN
DIGITAL AUDIO OUT
2
3
2
COMPONENT IN
RS-232C I N
(CON TROL & SE RVICE )
AUDIO OUT
1
1
VIDEO
AUDIO
VIDEO
)
(
MONO
AUDIO
AV IN 2
AUX/3.5mm
Ⓓ
⑪
RGB IN
CABLE IN
ANTENNA/
3
HDMI/DVI IN
RGB(PC )
COMPONENT IN
(RGB /DVI)
AUDIO
RS-232C I N
REMOTE
CONTRO L IN
DIGITAL AUDIO OUT
OPTICA L COAXIAL
2
1
2
(CON TROL & SE RVICE )
AUDIO
AUDIO OUT
1
VIDEO
AUDIO
VIDEO
(
MONO
)
AV IN 2
Audio Out
Ⓔ
AUX IN
⑪
Ⓓ
Ⓖ
Z-PKQG-HT381-V2
Need help?
Do you have a question about the WSHT-381 and is the answer not in the manual?
Questions and answers
