Summary of Contents for Uni-Art DH1300

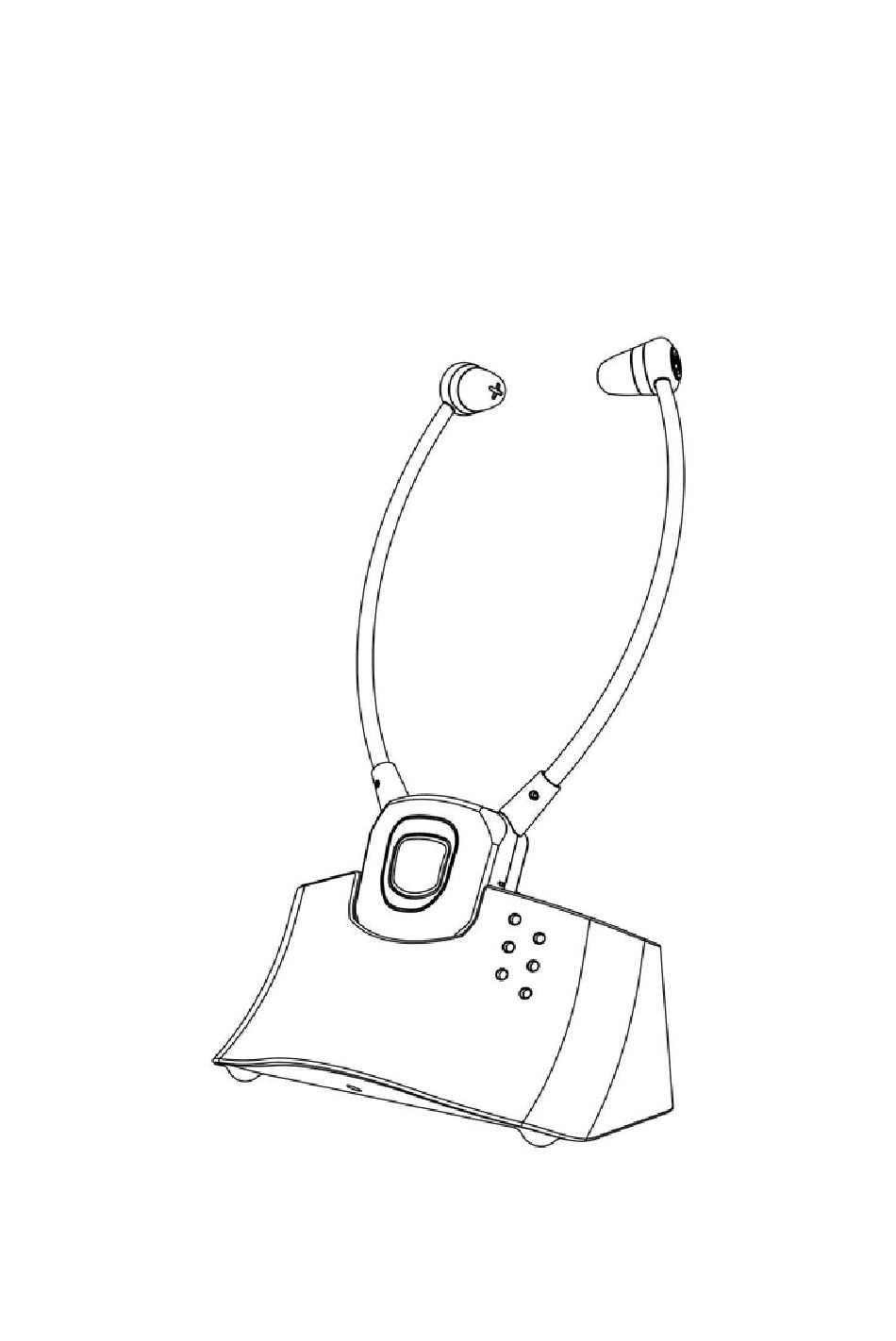

- Page 1 DH1300 2.4GHz WIRELESS DIGITAL HEADSET User Manual...
- Page 2 INTRODUCTION This 2.4GHz DIGITAL WIRELESS CHIN HEADSET uses latest digital wireless technology, and enables to improve the hearing aid capability that may required by the elderly people to enjoy crystal sound stereo music and TV sound anywhere inside your home. Simply connect the transmitter to a desired audio source: DVD player, CD player, TV set, Hi-Fi system, or iPod.
-
Page 3: Component Part List
COMPONENT PART LIST Headset Receiver Transmitter Polymer Lithium Rechargeable Battery x 2 pieces AC/DC Adapter RCA Adapter Cable Audio Cable (both ends with 3.5 mm stereo plug) 6.3 mm to 3.5 mm Adapter Plug (Optional) External Microphone... -
Page 4: Function Identification: Headset Receiver
Function Identification: Headset Receiver Right Adjustable Earbud Left Adjustable Earbud Volume Control LED Indicator of Power/Signal Mute Button for Verbal Communications Power On/Off Switch Microphone Sound Balance Control (Left/Middle/Right) Battery... - Page 5 Function Identification: Transmitter Charging Cradle LED Indicator of Tone Clarity Tone Clarity Button LED Indicator of Power/Signal LED Charging Indicator for Main Battery (attached to Headset Receiver) LED Charging Indicator for Spare Battery Spare Charging Slot DC In Power ON/OFF 10.
-
Page 6: Installation
INSTALLATION TRANSMITTER Connect the Power Adapter to the DC IN input Socket located on the transmitter rear panel. Connect the Power Adapter provided to an Electrical Outlet. RCA Adapter Cable, Audio Cable, 6.3 mm to 3.5 mm Adapter Plug, External Microphone and are provided for various type of connection to your Audio Source (e.g. -
Page 7: Operation
HEADSET RECEIVER Insert a battery into the Headset Receiver with correct Polarity. OPERATION Switch on the Audio Source (TV set or audio component) that the Transmitter is connected to. The Green LED Indicator will glow constantly. Select the On/Off Switch in the Headset Receiver to ON position, then the Green Signal LED Indicator glows. -
Page 8: Charging The Batteries
CHARGING THE BATTERIES 1. Select the On/Off Switch in the Headset Receiver to OFF position. 2. Place the Headphone Receiver on the Transmitter, make sure the Charge Contact touches the Charge Pins on the Transmitter. 3. The Charging process starts automatically. LED Indicator of Main Battery then glows in Red constantly. - Page 9 WARNING: Never attempt to recharge conventional dry cells. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like Never use another type of battery or non-rechargeable batteries to replace the rechargeable batteries supplied.
- Page 10 TONE CLARITY When necessary, Tone Clarity to Headset Receiver can be adjusted on the Transmitter, from orange LED of 1, 2 and 3. Simply press the Tone Clarity Button to select and match to your level of hearing aid capability. The Tone Speech Intelligibility can be enhanced individually on the transmitter with the following settings.
-
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Transmission mode : Digital Hopping System Carrier frequency : 2.4GHz ISM BAND l Operating voltage : Transmitter : 5V 550mA Receiver : 3.7 V, 350 mA Lithium Polymer Battery Frequency response : 30 Hz – 20 KHz Distortion : <0.5% Signal-to-noise ratio : >75 dB... - Page 12 In case the headset receiver cannot be linked with the transmitter. Please follow the following procedure for Pairing: Turn OFF the power of the Transmitter. Turn ON the Headset Receiver. Press and Hold the MIC Button for about 5 seconds, the Green LED flash quickly in the Headset Receiver, then turn ON the power of the Transmitter.
-
Page 13: Eu Declaration Of Conformity
Telecommunications Terminal Equipment 1999/5/EC For the following equipment Product : 2.4GHz Wireless Digital Headset Type Designation/Trademark : DH1300 : UNI-ART PRECISE ELECTRONICS (SHENZHEN) : No.8 XinSha Road, ShaJing Town, Baoan District 518125 Shenzhen City, Guangdong PEOPLE'S REPUBLIC OF CHINA is herewith confirmed to comply with the requirements set out in the Council Directive1999/5/EC for radio equipment and telecommunications terminal equipment. - Page 14 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
