3010-1A User's manual
一、 Wiring ：Power Supply 12~16 DCV
1 This product is car audio and video control box
2 Recommendations Please installation by professional technicians
3 Will pick a good line monitor A and monitor B、
each placed within the head restraint is being co-pilot。
4 Will take a good line Ccontrol Box，
Placed in the bottom of the co-pilot seat chairs。

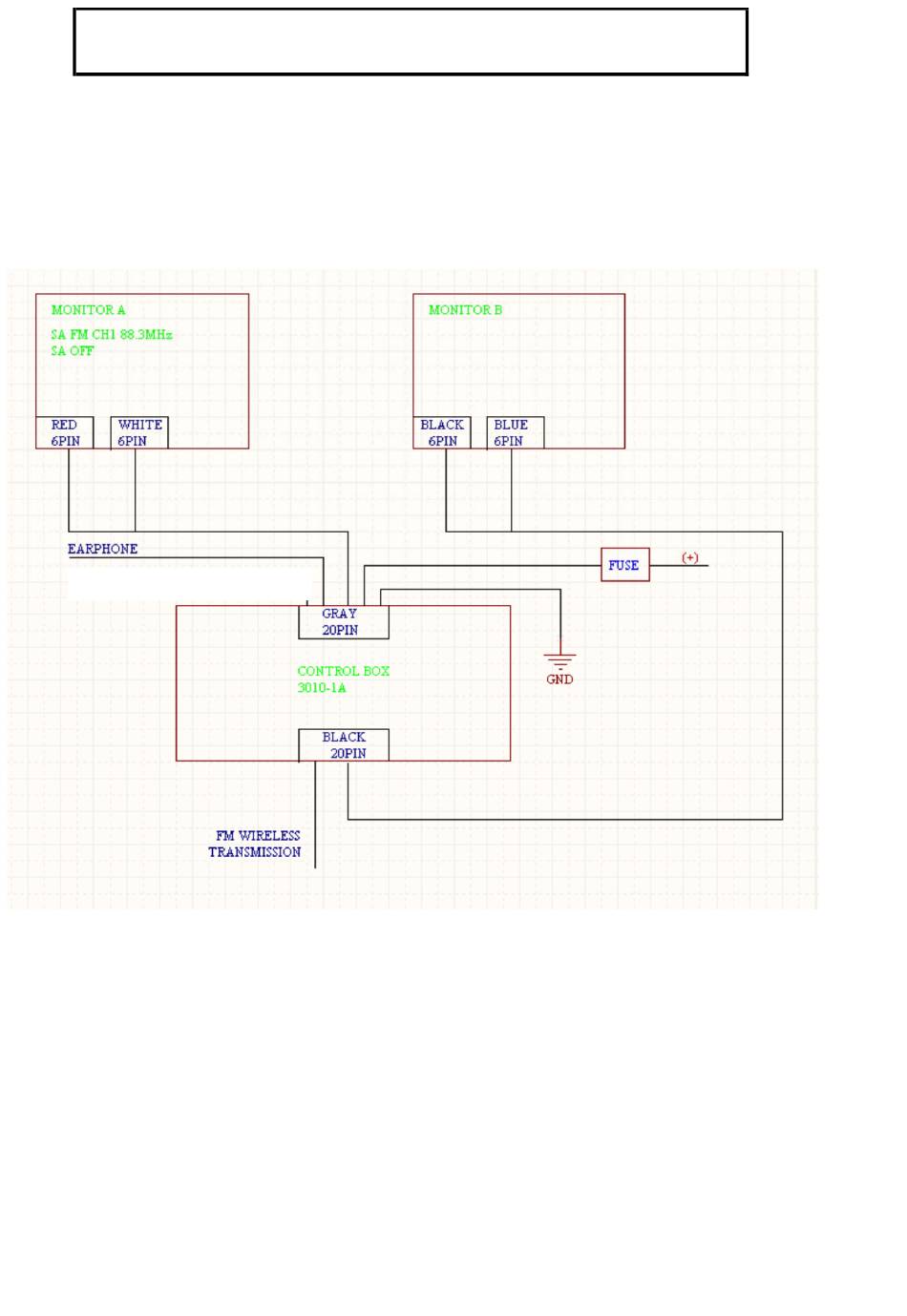

MODULE Connection instructional diagram
1
Advertisement
Table of Contents
Related Manuals for Giant Alarm System 3010-1A
Summary of Contents for Giant Alarm System 3010-1A
- Page 1 3010-1A User’s manual 一、 Wiring ：Power Supply 12~16 DCV MODULE Connection instructional diagram 1 This product is car audio and video control box 2 Recommendations Please installation by professional technicians 3 Will pick a good line monitor A and monitor B、...
- Page 2 二、Explanation & Specification： Monitor A Monitor B Monitor A Monitor B...
- Page 3 Black Connector Gray Connector Power Supply Black Antenna WIRE CABLE FUNCTION NAME To Power supply DCV：12V~16V To Monitor A Red Connector Power & AV Output GRAY To Monitor A White Connector AV Input & I2C To Ear phome Audio Aux Output To Monitor B Blue Connector AV Input &...
- Page 4 三、 Operating Instructions POWER ON/OFF 1. Press the Power key, opened the Monitor A and Monitor B. The look at the screen is normal Monitor A SOURCE button to switch the screen (Monitor A.Monitor B. AUX. TV). Or press the Monitor B SOURCE button to switch the screen (Monitor B. AUX. TV.Monitor A). To each other to see the picture and sound are normal.
- Page 5 Sound Around (SELECT) Sound Around (ON/OFF) CH+/CH- (UP/DOWN) 3 And then CH + / CH-(UP / DOWN) key, press the remote control the Sound Around (SELECT) button to start the FM the OSD Office. Each time you press a frequency increment or decrement 200KHZ. The whole frequency range of FM of CH 88.3 to FMCH 107.7MHZ.
- Page 6 A/V Control Module. Devices connected to this input can be viewed on either screen (independently or simultaneously), as well as output through the vehicle stereo via the 3010-1A Control Box FM Transmitter. To view this input press the SOURCE button until EXT. AUX is displayed.
- Page 7 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following twoconditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
