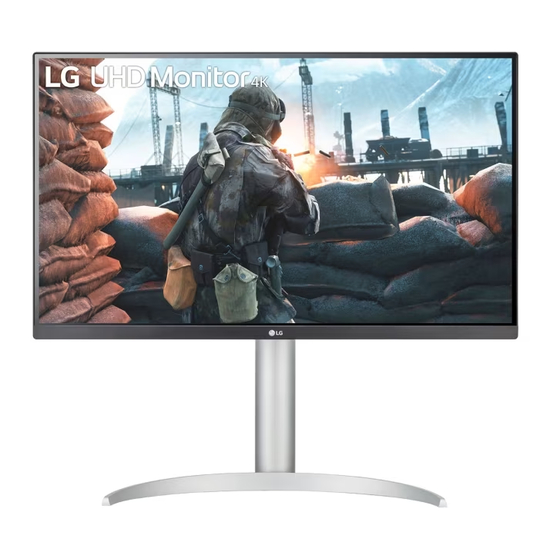

LG 27UP650W Owner's Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. Monitor
  5. 27UP650W
  6. Owner's manual

LG 27UP650W Owner's Manual

Hide thumbs Also See for 27UP650W:

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
LED LCD MONITOR
(LED Monitor*)
* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and
retain it for future reference.
27UP600
27UP650
www.lg.com
Copyright © 2020 LG Electronics Inc. All Rights Reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 27UP650W and is the answer not in the manual?

Questions and answers

Related Manuals for LG 27UP650W

Summary of Contents for LG 27UP650W

  • Page 1 OWNER’S MANUAL LED LCD MONITOR (LED Monitor*) * LG LED Monitor applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 27UP600 27UP650 www.lg.com Copyright © 2020 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. LICENSE ............2 ASSEMBLING AND PREPARING ....3 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

  • Page 3: Assembling And Preparing

    • It is recommended that use the supplied components. • If you use generic cables not certified by LG, the screen may not display or there may be image noises. Supported Drivers and Software • Illustrations in this document represent typical procedures, so they may look different from the actual product.
  • Page 4 Product and Button Description Moving and Lifting the Monitor When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size. • Place the monitor in the original box or packing material before attempting to move it. •...
  • Page 5 Installing on a Table WARNING • • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm (3.94 When adjusting the screen height, do not place your hand on the stand body to avoid injury to your fingers. inches) away from the wall to ensure sufficient ventilation.
  • Page 6 Pivot Feature (27UP650) Rotate the monitor clockwise as shown in the figure. The pivot feature allows the monitor to rotate 90° clockwise. Head Complete the installation by rotating the monitor 90° as shown below. Stand WARNING • To avoid scratching the stand base, make sure that when rotating the monitor using the pivot feature, the stand does not make contact with the monitor.
  • Page 7 Using the Kensington Lock Installing the Wall Mount Plate The connector for the Kensington security system is located at the back of the monitor. This monitor meets the specifications for the wall mount plate or other compatible devices. For more information on installation and usage, refer to the Kensington lock owner’ s manual or visit the website NOTE at http://www.kensington.com.
  • Page 8 NOTE Max. 8 mm (0.3 inches) • A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to the use of non-standard screws. • The wall mount kit includes the installation guide and all necessary parts.

  • Page 9: Using The Monitor

    USING THE MONITOR DisplayPort Connection Transmits digital video and audio signals from your PC to the monitor. • Illustrations in this manual may differ from the actual product. NOTE Press the joystick button, go to Settings Input, and then select the input option. •...
  • Page 10 Connecting AV Devices HDMI Connection HDMI transmits digital video and audio signals from your AV device to the monitor. NOTE • Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues. • Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.

  • Page 11: User Settings

    USER SETTINGS NOTE • Your monitor’ s OSD (On Screen Display) may differ slightly from that shown in this manual. • When Beep Guide is activated, pressing the joystick button will take you to Settings right away. Activating the Main Menu Press the joystick button on the bottom of the monitor.
  • Page 12 Main Menu Features Main Menu Description Input Sets input mode. Power Off Power Off Turns off the monitor. Settings Configures the screen settings. Exit Input Settings Picture Mode Sets the picture mode. Exit Exits the main menu. Picture Mode Menu Settings To view the OSD menu, press the joystick button at the bottom of the monitor and then enter the Settings.
  • Page 13 Quick Settings Settings > Quick Settings Description Brightness Adjusts the contrast and brightness of the screen. Contrast Adjusts the volume. Volume NOTE • You can adjust Mute / Unmute by moving the joystick button to in the Volume menu. The user can adjust it to red, green, or blue by customization. Custom Warm Sets the screen color to a reddish tone.
  • Page 14 Input Settings > Input Description Input List Selects the input mode. Adjusts the aspect ratio of the screen. Full Wide Displays the video in widescreen, regardless of the video signal input. Original Displays video according to the aspect ratio of the video signal input. Aspect Ratio Just Scan The aspect ratio is not adjusted from the original.
  • Page 15 Picture NOTE • The Picture Mode that can be set depends on the Input signal. [Picture Mode on SDR (Non-HDR) signal] Settings > Picture Description Custom Allows the user to adjust each element. Vivid Heightens contrast, brightness and sharpness to display vivid images. HDR Effect Optimizes the screen for high dynamic range.
  • Page 16 [Picture Mode on HDR signal] Settings > Picture Description Custom Allows the user to adjust each element. Vivid Optimized the screen for HDR vivid colors. Cinema Optimized the screen for HDR video. This mode is optimized for FPS games.It is suitable for very dark FPS games. Picture Mode This mode is optimized for RTS Game.
  • Page 17 Settings > Picture Description Brightness Adjusts the contrast and brightness of the screen. Contrast Sharpness Adjusts the sharpness of the screen. High Optimizes the screen for crystal clear images. Best for high-definition video or games. Optimizes the screen for comfortable viewing, with images at the middle level between the low and high Middle modes.
  • Page 18 Adjusts the brightness automatically according to the screen. Picture Adjust Disables the DFC feature. Settings > Picture Description Sets a response time for displayed pictures based on the movement of the picture on the screen. For a normal environment, it is recommended that you use Fast. When there is a lot of motion, it is recommended that you use Faster.
  • Page 19 Settings > Picture Description Mode 1, The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter Mode 2, the image becomes. Gamma Mode 3 Mode 4 If you do not need to adjust the gamma settings, select Mode 4. Set your own color temperature.
  • Page 20 General Settings > General Description Language Sets the menu screen to the desired language. Conserve energy by using luminance compensation algorithm. High Saves energy using the high-efficiency SMART ENERGY SAVING feature. Saves energy using the low-efficiency SMART ENERGY SAVING feature. SMART ENERGY SAVING Disables the feature.
  • Page 21 Settings > General Description Provides sharper images when connected to a device supporting ULTRA HD Deep Color. 4K@ 60 Hz Support Format Color Depth / Chroma Sampling Resolution Frame rate(Hz) 8 bit 10 bit YCbCr 4:2:0 59.94 YCbCr 4:2:2 3840 x 2160 HDMI ULTRA HD Deep Color 60.00 YCbCr 4:4:4...

  • Page 22: Troubleshooting

    TROUBLESHOOTING Nothing is displayed on the screen. • Is the monitor's power cord plugged in? Check if the power cord is correctly plugged into the power outlet. • Is the power LED on? Check the power cable connection and press the power button. •...
  • Page 23 Do you see an "Unrecognized monitor, Plug and Play (VESA DDC) monitor found" message? • Have you installed the display driver? Be sure to install the display driver from our web site: http://www.lg.com . • Make sure to check if the graphics card supports Plug and Play function.

  • Page 24: Product Specification

    PRODUCT SPECIFICATION 27UP600 Color Depth 8-bit / 10-bit color is supported. Max Resolution 3840 x 2160 @ 60 Hz Resolution Recommended Resolution 3840 x 2160 @ 60 Hz Power Rating 19 V 2.4 A On mode: 24 W Typ. (ENERGY STAR® standard)* Power Sources Power Consumption Sleep Mode(Standby Mode) ≤...
  • Page 25 4.4 kg (9.6 lbs) With Stand Weight (Without Packaging) 3.8 kg (8.3 lbs) Without Stand The specifications are subject to change without notice. The ~ symbol means alternating current, and the symbol means direct current. The power consumption level can be different by operating condition and monitor setting. * The On mode power consumption is measured with ENERGY STAR®...
  • Page 26 PRODUCT SPECIFICATION 27UP650 Color Depth 8-bit / 10-bit color is supported. Max Resolution 3840 x 2160 @ 60 Hz Resolution Recommended Resolution 3840 x 2160 @ 60 Hz Power Rating 19 V 2.4 A On mode: 24 W Typ. (ENERGY STAR® standard)* Power Sources Power Consumption Sleep Mode(Standby Mode) ≤...
  • Page 27 5.6 kg (12.3 lbs) With Stand Weight (Without Packaging) 3.8 kg (8.3 lbs) Without Stand The specifications are subject to change without notice. The ~ symbol means alternating current, and the symbol means direct current. The power consumption level can be different by operating condition and monitor setting. * The On mode power consumption is measured with ENERGY STAR®...
  • Page 28 Factory Support Mode (Preset Mode, PC) DisplayPort Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1920 x 1080 67.5 2560 x 1440 88.79 59.95 3840 x 2160 66.66...
  • Page 29 HDMI Timing (Video) Factory support mode Horizontal Vertical Frequency(Hz) Remarks Frequency(kHz) (Preset Mode) 480p 31.5 720p 45.0 1080p 67.5 2160p When HDMI ULTRA HD Deep Color is set to ON...
  • Page 30 Beep Guide Menu Location Menu Location Menu Location Quick Settings Input - Aspect Ratio - JustScan 2 2 3 Picture - Picture Adjust - SUPER RESOLUTION+ - 3 2 4 2 Middle Quick Settings - Brightness Picture Picture - Picture Adjust - SUPER RESOLUTION+ - Low 3 2 4 3 Quick Settings - Brightness 1 1 1 Slider...
  • Page 31 Menu Location Menu Location Menu Location Picture - Color Adjust - Gamma - Mode 2 3 4 1 2 Picture - Color Adjust - Six Color - Green Saturation 3 4 6 4 1 Slider General - Language - English 4 1 1 Picture - Color Adjust - Gamma - Mode 3 3 4 1 3...
  • Page 32 Menu Location General - Automatic Standby - Off 4 4 1 General - Automatic Standby - 4H 4 4 2 General - Automatic Standby - 6H 4 4 3 General - Automatic Standby - 8H 4 4 4 General - DisplayPort Version General - DisplayPort Version - 1.4 4 5 1 General - DisplayPort Version - 1.2...
  • Page 33 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 111 Sylvan Avenue, North Building, Englewood Cliffs,NJ 07632 E-mail lg.environmental@lge.com This device meets the EMC requirements for home appliances (Class B) and is intended for home usage.
