Acrox Technologies RMC-QTD1 Manual

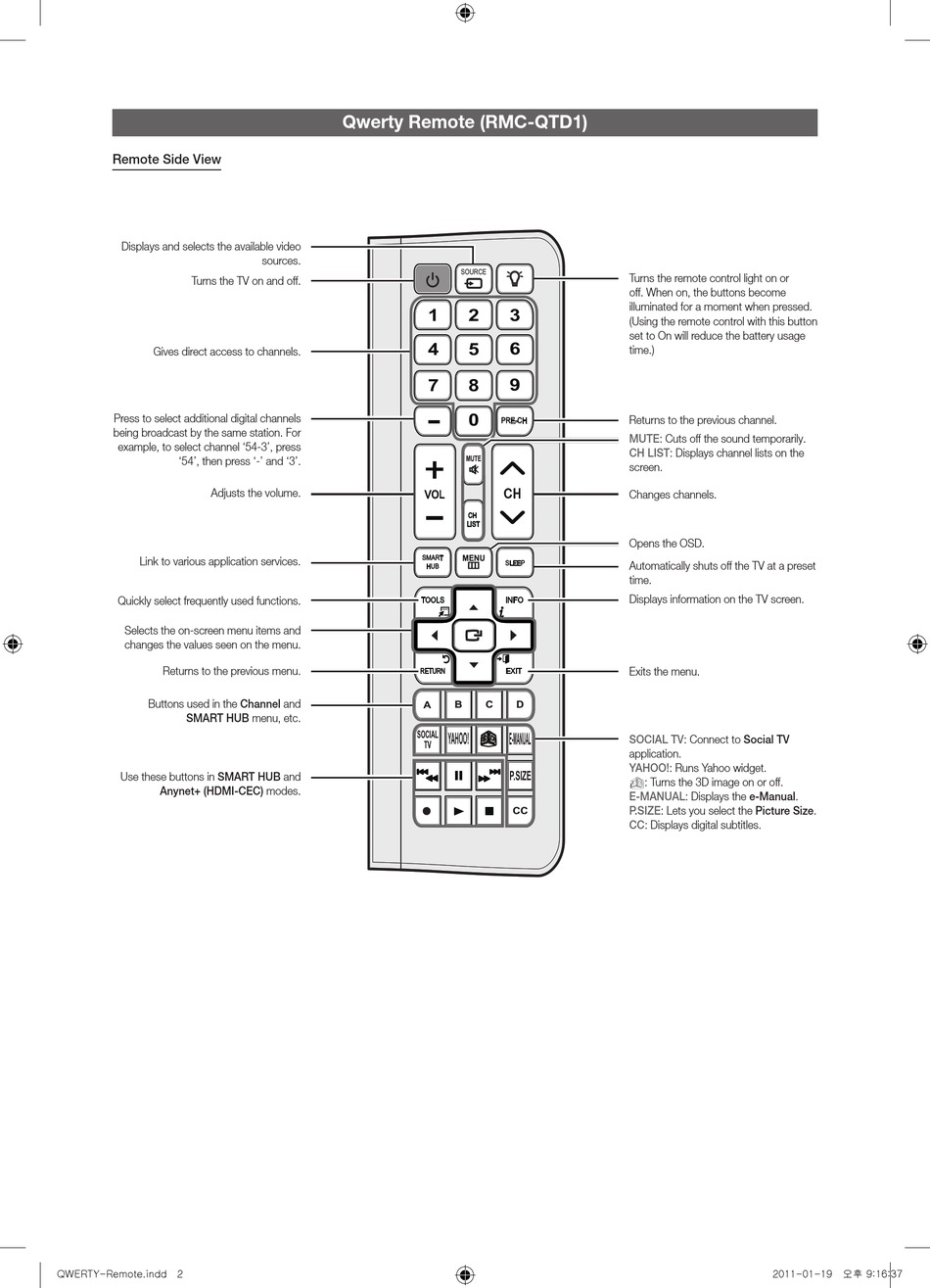

Remote Side View

Displays and selects the available video
Turns the TV on and off.
Gives direct access to channels.
Press to select additional digital channels
being broadcast by the same station. For
example, to select channel '54-3', press
'54', then press '-' and '3'.
Adjusts the volume.
Link to various application services.
Quickly select frequently used functions.
Selects the on-screen menu items and
changes the values seen on the menu.
Returns to the previous menu.
Buttons used in the Channel and
SMART HUB menu, etc.
Use these buttons in SMART HUB and
Anynet+ (HDMI-CEC) modes.
QWERTY-Remote.indd 2

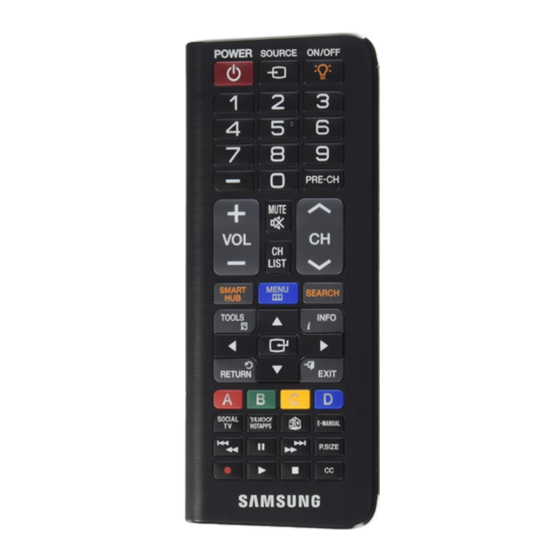

Qwerty Remote (RMC-QTD1)
sources.
1
4
7
VOL
SMART
HUB
SOCIAL
TV
SOURCE
2 3
6
5
9
8
0
PRE-CH
MUTE
<
M
CH
CH
LIST
MENU
SLEEP
m
B C D
YAHOO! E- M ANUAL
P.SIZE
CC
Turns the remote control light on or
off. When on, the buttons become
illuminated for a moment when pressed.
(Using the remote control with this button
set to On will reduce the battery usage
time.)
Returns to the previous channel.
MUTE: Cuts off the sound temporarily.
CH LIST: Displays channel lists on the
screen.
Changes channels.
Opens the OSD.
Automatically shuts off the TV at a preset
time.
Displays information on the TV screen.
Exits the menu.
SOCIAL TV: Connect to Social TV
application.
YAHOO!: Runs Yahoo widget.
X: Turns the 3D image on or off.
E-MANUAL: Displays the e-Manual.
P.SIZE: Lets you select the Picture Size.
CC: Displays digital subtitles.
