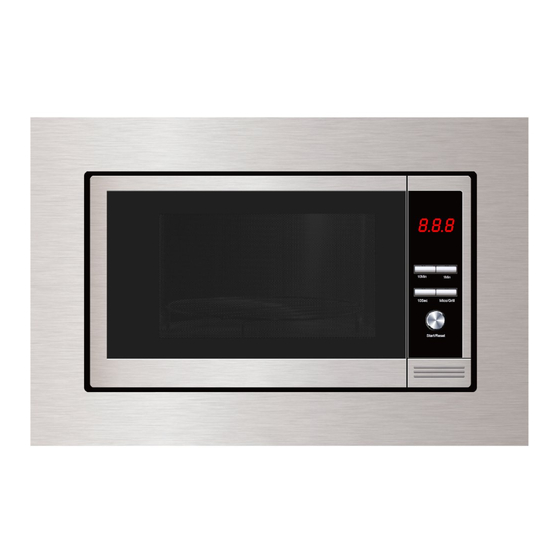

- Page 1 20 Litre Electronic Microwave Owner s Instruction Manual UBMICROL20SS UBMICROL20BK Read the Instructions carefully and Keep for Future Reference...
- Page 2 Important safety instructions When using electrical appliance basic safety precautions should be followed, including the following: warning: to reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1.Read all instructions before using the appliance. 2.Use this appliance only for its intended use as described in this manual.
- Page 3 7.To reduce the risk of fire in the oven cavity: a.When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition. b.Remove wire twist-ties from paper or plastic bags before placing bag in oven. c.If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
- Page 4 needed to handle the utensil. 15.Utensils should be checked to ensure that they are suitable for use in microwave oven. 16.Warning: it is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
- Page 5 damaged and the warranty would be avoid . 21.The accessible surface may be hot during operation. 22.The door or the outer surface may get hot when the appliance is operating. 23.The temperature of accessible surfaces may be high when the appliance is operating. 24.The appliance shall be placed against a wall.
- Page 6 31.The microwave oven is intended for defrosting, cooking and steaming of food only. 32.Use gloves if you remove any heated food. 33.Caution! Steam will escape, when opening lids or un-covering food. 34.If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.
-
Page 7: Specifications
SPECIFICATIONS Power consumption: 230V~50Hz,1080W Output: 700W Grill Heater: 800W Operating Frequency: 2,450MHz Outside Dimensions: 592mm(W) X 3 30mm(D) X 376mm(H) Oven Cavity Dimensions: 315mm(W) X 296mm(D) X 211mm(H) Oven Capacity: 20 litres Uncrated Weight: Approx. 10.5kg BEFORE YOU CALL FOR SERVICE 1. - Page 8 INSTALLATION 1. Make sure all the packing materials are removed from 3. This Microwave Oven weighs 10.5 kg and must be the inside of the door. placed on a horizontal surface strong enough to support this weight. 2. Inspect the oven after unpacking for any visual 4.
- Page 9 IMPORTANT SAFETY INSTRUCTIONS -WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function) -WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;...
-
Page 10: Feature Diagram
6. Do not insert any object into the openings on the outer removed from the oven, please remember that case. the food/liquid inside will be releasing the same 7. Do not at any time remove parts from the oven such as amount of steam and/or spitting when the lid is the feet, coupling, screws, etc. -
Page 11: Control Panel
CONTROL PANEL (1)DISPLAY WINDOW (2)1 Min (3)10 Min 10 Min 1 Min (4)Micro/Grill (5)10 Sec 10 Sec Micro/Grill (6)Start/Reset Start/Reset OPERATION INSTRUCTION 1.SIMPLE COOKING " You only need press "START/RESET to start cooking for 1 min with P10 microwave power. Each press means increasing one minute cooking time, the maximum time is 30 min. - Page 12 2. MICROWAVE COOKING (A) Fast cooking method (For example: Select P10 power to cook food for 5 minutes.) a) Set the time "5.0" b) Press "START/RESET" button (B) Control by hand (For example: Select P7 power to cook food for 10 minutes) a) Press "MICRO/GRILL"...
- Page 13 5. START AND RESET 1) Open door status Press "START/RESET" button to cancel setting or cooking program. 2) Close door status Press "START/RESET" button to start cooking after setting cooking program. Press "START/RESET" button to continue cooking when the cooking is in pause status. Press "START/RESET"...
- Page 14 The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE) required that old household electrical appliance must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the material they contain, and reduce the impact on human health and the environment.
- Page 15 FRAME INSTALLATION MANUAL COMPONENTS bolt screwcover 1PCS 3 bolt 1PCS TRIM KIT SPECIFICATIONS Cavity dimensions FRAME dimensions Width 566mm Width 592mm Height 365mm Height 376mm Depth 350mm Depth 20mm MICROWAVE OVEN CABINETRY MICROWAVE LOCATION Cabinet measurement Requirements (illustrated above): Cabinet's inner dimension in transverse direction is 566mm. This is the minimum distance from the left batten to right batten.
- Page 16 FRAME INSTALLATION STEPS 1 Put the microwave oven into the cabinet and keep the microwave oven in a horizontal direction and keep the edge distance of two side as same. Then fix the bolt (component 1) on the top of microwave oven and beat it into the cabinet. 2 Open the microwave oven, fix the bolt (Component 3 ) and beat it into the cabinet, then install...
