BASIC CONNECTIONS

Use the switch on the back of the speaker to choose output. The speakers can be used on either 8 Ohm or 100Volt line
systems.

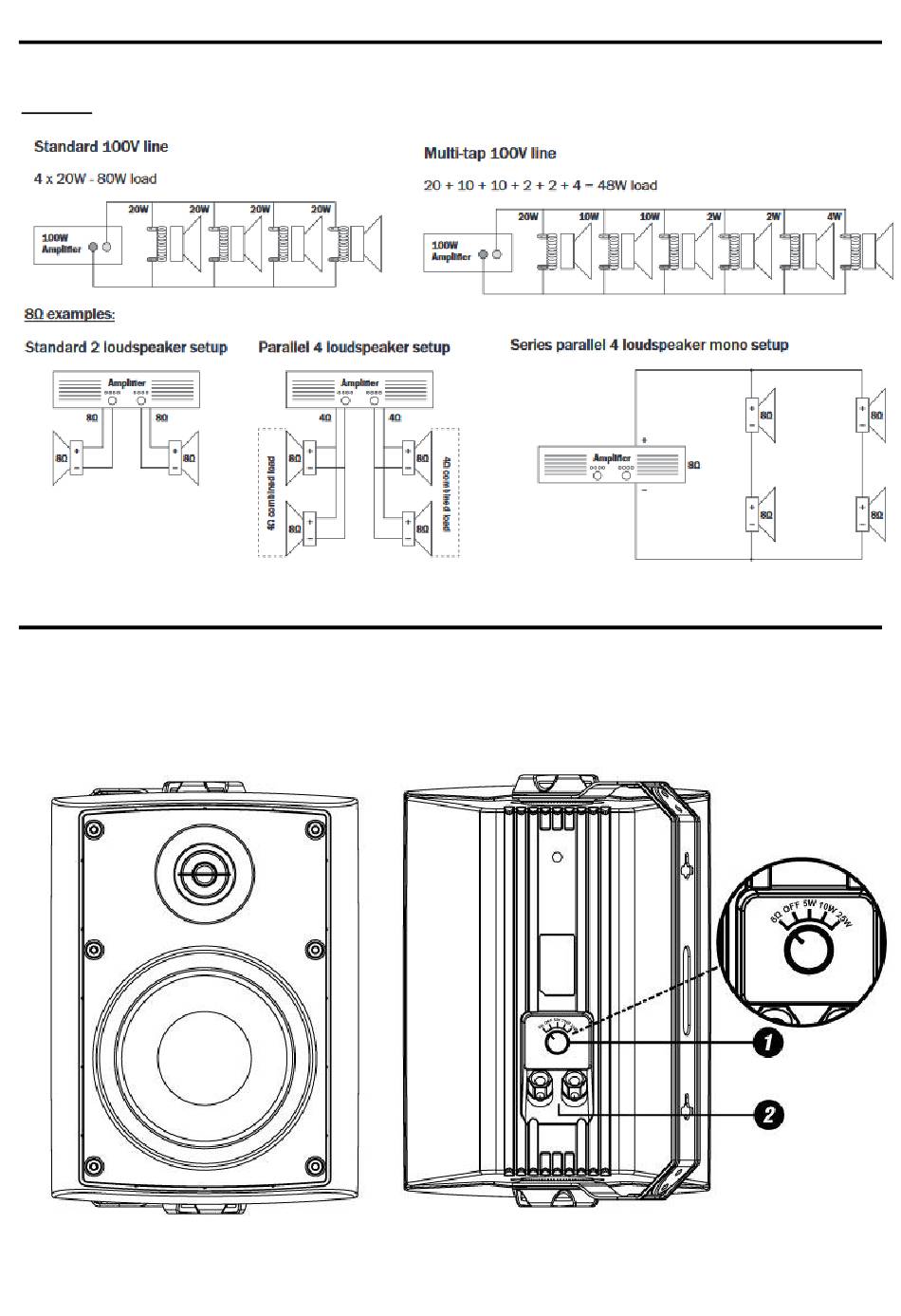

Examples

HOW TO CONNECT YOUR SPEAKERS

Step 1: Make sure the audio system is turned off before making any connection.
Step 2: Connect the speaker(s) to the output of the amplifier (Black = negative pole / Red = positive pole) (2).
Step 3: Adjust the rotary switch (1) to 100 Volt or 8Ω position (for directly operating the speaker at a low-impedance amplifier
output).
Step 4: When connecting several speakers, make sure that all speakers have the same polarity and that the amplifier is not
overloaded.
