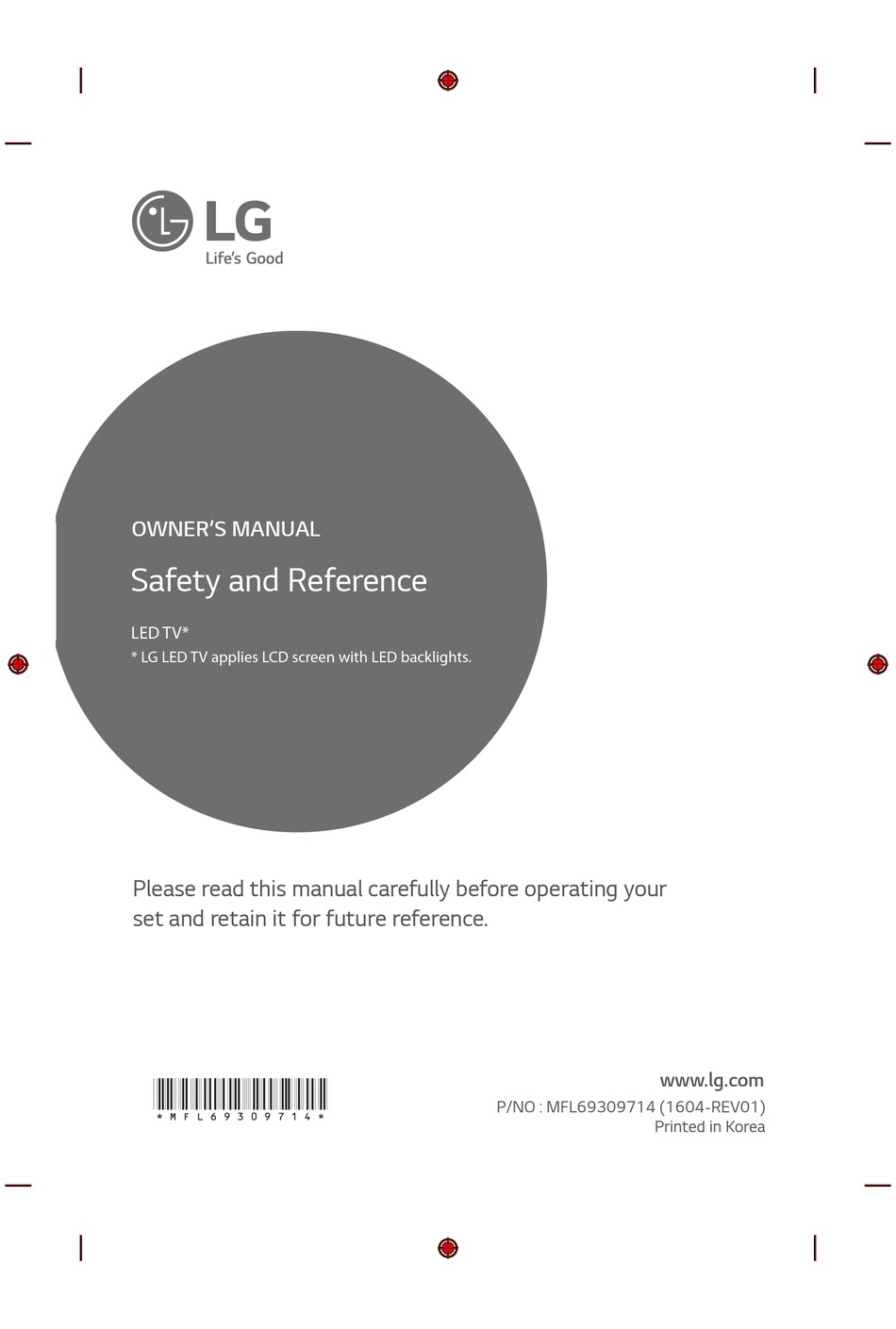

OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69309714* P/NO : MFL69309714 (1604-REV01) Printed in Korea...
Safety instructions Please read these safety precautions carefully before using the product. Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on WARNING earth.) Otherwise possibility you may be electrocuted or injured. Insert power cable plug completely into wall socket otherwise if not Do not place the TV and/or remote control in the following secured completely into socket, re ignition may break out.
Page 3
Do not drop the product or let it fall over when connecting external Do not drop metallic objects such as coins, hair pins, chopsticks or wire devices. Otherwise, this may result in injury or damage to the product. into the product, or in ammable objects such as paper and matches. Children must pay particular attention.
Page 4
Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in re, electric shock, If you install the TV on a stand, you need to take actions to prevent the malfunction or product deformation.
Page 5
When installing the antenna, consult with a quali ed service When connecting external devices such as video game consoles, make technician. If not installed by a quali ed technician, this may create a sure the connecting cables are long enough. Otherwise, the product re hazard or an electric shock hazard.
Page 6
Protect the power cord from physical or mechanical abuse, such as When moving the product, make sure you turn the power o rst. Then, being twisted, kinked, pinched, closed in a door, or walked upon. Pay unplug the power cables, antenna cables and all connecting cables. particular attention to plugs, wall outlets, and the point where the cord The TV set or power cord may be damaged, which may create a re exits the appliance.
Page 7
Preparing NOTE You may nd di erent brightness and color of the panel depending on Image shown may di er from your TV. your viewing position(left/right/top/down). Your TV’s OSD (On Screen Display) may di er slightly from that This phenomenon occurs due to the characteristic of the panel. It is not shown in this manual.
CAUTION Do not use any unapproved items to ensure the safety and product life span. Any damage or injuries caused by using unapproved items are not covered by the warranty. When transporting the TV, do not expose the TV to jolts or Some models have a thin lm attached on to the screen and this excessive vibration.
Basic functions Securing the TV to a wall Power On (Press) (This feature is not available for all models.) Power O (Press and hold) Volume Control Programmes Control 1 If the Menu button is on the screen, pressing and holding the button will let you exit the Menu.
We recommend the use accumulating dust and dirt. (Only when the item of the following of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with form is provided) cables connected. When you do not use LG’s wall mount bracket, please...
Page 11
In PC mode, there may be noise associated with the resolution, Euro scart connection vertical pattern, contrast or brightness. If noise is present, change (Depending on model) the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE Transmits the video and audio signals from an external device to the menu until the picture is clear.
2 Select the START CONNECTION. Remote control (Depending on model) The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
Page 14
Fine-tuning Picture Mode Settings (Settings) Picture Picture Mode Settings This feature allows you to adjust the selected picture mode in detail. Automatically Setting Up Programme Backlight : Controls the level of screen brightness by adjusting the backlight. The closer to 100, the brighter the screen. (Settings) Programmes Auto Tuning...
Page 15
To set additional picture options Selecting Sound Mode (Settings) Picture Picture Mode Settings Picture (Settings) Sound Sound Mode Settings Sound Mode Options Adjusts TV audio to an optimal level based on a selected sound mode. Adjusts detailed setting for images. Standard : Optimizes the sound for all types of content.
Page 16
To use SIMPLINK To set password [Depending on model] (Settings) Safety Set Password Sets or changes the TV password. SIMPLINK is a feature that enables you to control and manage various multimedia devices conveniently via the SIMPLINK menu. The initial password is set to ‘0000’ . When France is selected for Country, password is not ‘0000’...
Page 17
My Media supporting le Supported Audio Formats Supported Video Formats Supported Photo Formats...
To see web manual To obtain detailed User Guide information, please visit www.lg.com. External control device setup To obtain the external control device setup information, please visit www.lg.com. Troubleshooting Cannot control the TV with the remote control. Check the remote control sensor on the product and try again.
Speci cations CI Module Size (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % (Depending on country)
Page 20
HDMI-DTV supported mode Component port connecting information Horizontal Vertical Resolution Frequency Frequency Component ports on the TV (kHz) (Hz) 31.46 59.94 640 x 480 31.50 60.00 31.47 59.94 Video output ports on 720 x 480 31.50 60.00 DVD player 720 x 576 31.25 50.00 37.50...
Page 24
Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
