welcoming
MODEL NUMBER DESCRIPTION
1541WC-24-201
1541WC-24-242
24-IN WALL CABINET
ITEM #4767928; 4767929
MODEL # 1541WC-24-201; 1541WC-24-242
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
•
sophisticated

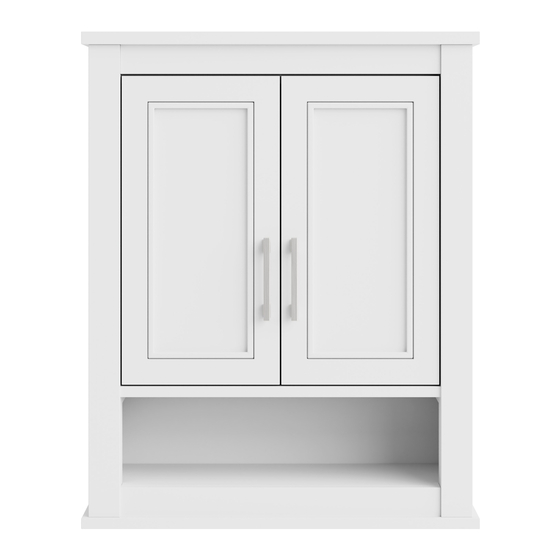

CRESTHILL 24" WALL CABINET - WHITE
CRESTHILL 24" WALL CABINET - LGT GREY
1
•
inspiring
Advertisement
Table of Contents
Related Manuals for Allen + Roth CRESTHILL 1541WC-24-201
Summary of Contents for Allen + Roth CRESTHILL 1541WC-24-201
- Page 1 welcoming • sophisticated • inspiring MODEL NUMBER DESCRIPTION 1541WC-24-201 CRESTHILL 24" WALL CABINET - WHITE 1541WC-24-242 CRESTHILL 24" WALL CABINET - LGT GREY 24-IN WALL CABINET ITEM #4767928; 4767929 MODEL # 1541WC-24-201; 1541WC-24-242 ATTACH YOUR RECEIPT HERE Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 866-439-9800, 8 a.m.
- Page 2 TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................3 Safety Instructions...........................3 Preparation............................4 Assembly or Installation Instructions ....................4 Care and Maintenance........................6 Warranty............................6 Replacement Parts List........................7...
- Page 3 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Cabinet Wall Bracket Shelf Left Door (preassembled to cabinet (A)) Right Door (preassembled to cabinet (A)) HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Touch Up Pen Shelf Pin Qty. 1 Qty. 8 SAFETY INSTRUCTIONS Please read and understand this entire manual before attempting to assemble, operate or install the product.
- Page 4 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 20 minutes. Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, power drill with drill bit.
- Page 5 INSTALLATION INSTRUCTIONS 3. Insert shelf pins (BB) at desired height, ensuring they are level. Place shelf (C) on top of shelf pins (BB). Repeat for the remaining shelf (C). Hardware Used Shelf Pin 4. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
- Page 6 CARE AND MAINTENANCE • Dust the wall cabinet regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the wall cabinet with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •...
- Page 7 REPLACEMENT PARTS LIST FOR 1541WC-24-201 For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART # Wall Bracket WC-WALL BRACKET-201 Shelf 1541WC-24-201-SHELF Left Door 1541WC-24-201 DOOR SET Right Door Touch-up Pen OF-0010 Shelf Pin...
- Page 8 REPLACEMENT PARTS LIST FOR 1541WC-24-242 For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART # Wall Bracket WC-WALL BRACKET-242 Shelf 1541WC-24-242-SHELF Left Door 1541WC-24-242 DOOR SET Right Door Touch-up Pen OF-0120R Shelf Pin...
